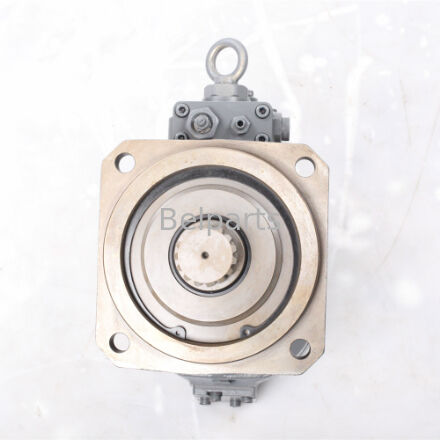

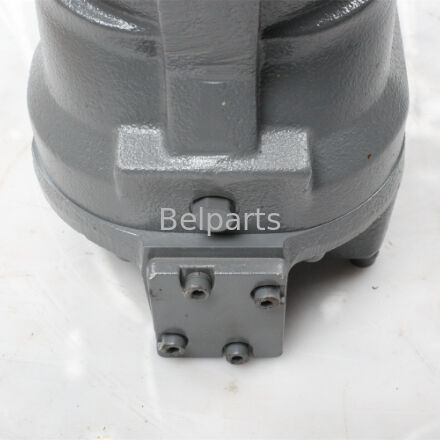

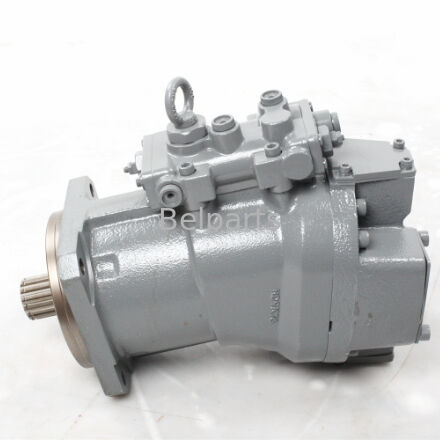

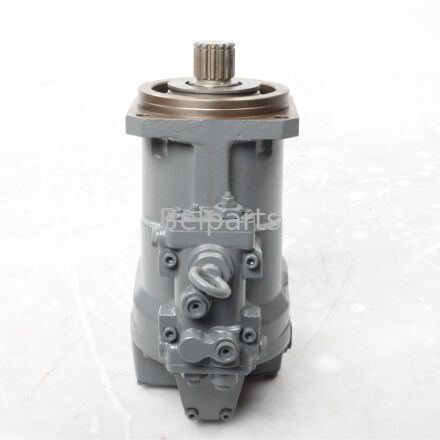

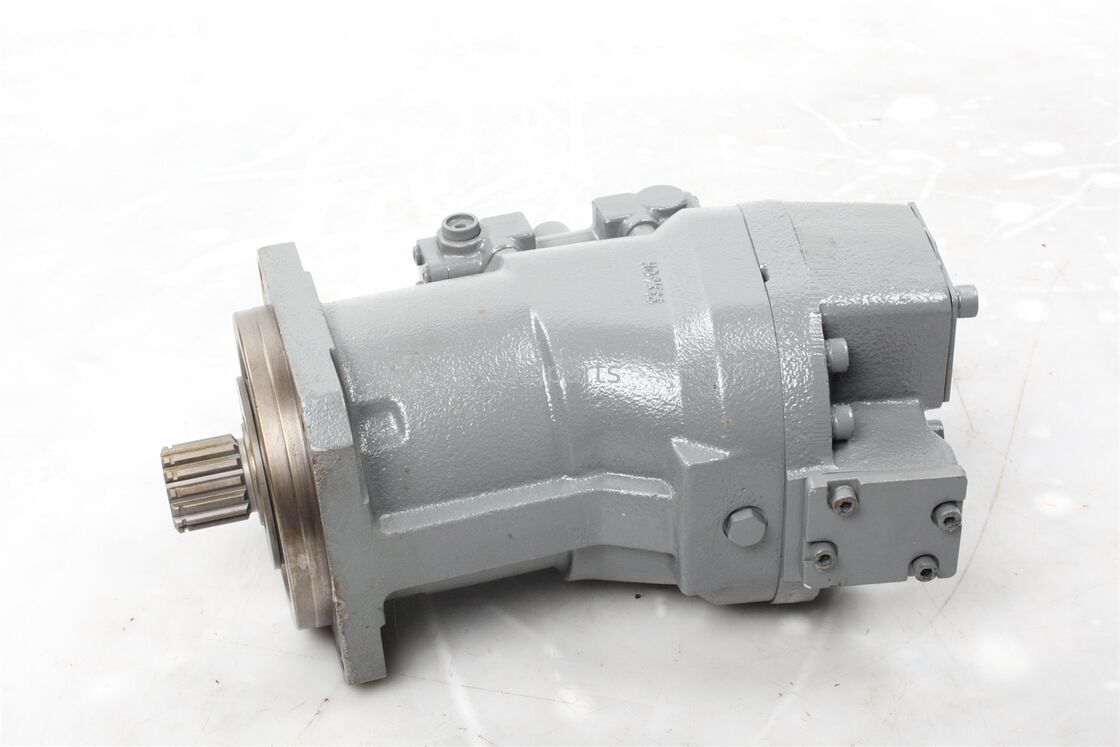

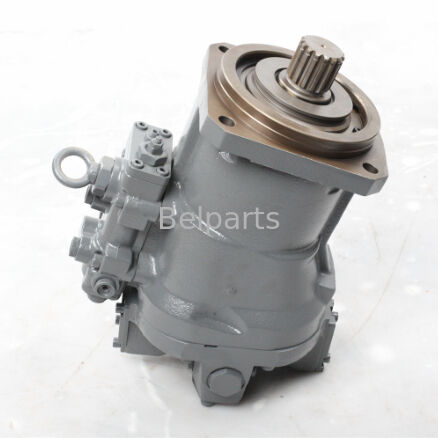

EX270 EX270LC EX300 EX300LC EX300H EX300LCH Main Hydraulic Pump For HITACHI Excavator Spare Parts 9075749 9075752 HPV145CW Piston Pump
Product Specifications
| Application |
Excavator |
| Part name |
Hydraulic Piston pump |
| Model |
EX270 EX270LC EX300 EX300LC EX300H EX300LCH
|
| Part munber |
9075749 9075752 |
| Type |
HPV145CW |
| Warranty |
12 months |
| Delivery time |
3-7 Days |
| Shipment |
Express/freight/sea/train |
| Quality |
Original brand new |
| MOQ |
1 Piece |
| Payment term |
T/T, Trade Assurance, Paypal and etc |
| Category |
Construction Machinery Part |
List of spare parts
| # |
Part No |
Part Name |
Qty. |
|
9075749 |
PUMP; SINGLE |
1 |
| 01 |
1010399 |
. CASING; PUMP |
1 |
| 01 |
1010399 |
. CASING; PUMP |
|
| 01 |
1014184 |
. CASING; PUMP |
1 |
| 02 |
8046112 |
. PACKING |
1 |
| 04 |
2023051 |
. DISC; DRIVING |
1 |
| 06 |
4190694 |
. BRG.; ROL. |
1 |
| 07 |
4209323 |
. BRG.; ROL. |
1 |
| 08 |
3035965 |
. SPACER |
1 |
| 09 |
4191665 |
. NUT; BRG. |
1 |
| 12 |
8033955 |
. PISTON |
7 |
| 12 |
8049118 |
. PISTON |
7 |
| 14 |
2022744 |
. ROTOR |
1 |
| 16 |
8035539 |
. SHAFT; CENTER |
1 |
| 17 |
4184779 |
. BALL |
1 |
| 18 |
4191667 |
. RING; RETAINING |
1 |
| 19 |
4194362 |
. SPRING; COMPRES. |
1 |
| 20 |
4193062 |
. RING; RETAINING |
1 |
| 21 |
4198956 |
. PIN |
1 |
| 22 |
4191666 |
. SEAL; OIL |
1 |
| 22 |
4232070 |
. SEAL; OIL |
1 |
| 23 |
3035966 |
. COVER; SEAL |
1 |
| 24 |
4191664 |
. O-RING |
1 |
| 25 |
4094325 |
. RING; RETAINING |
1 |
| 29 |
4193132 |
. BUSHING |
1 |
| 31 |
3039569 |
. LINK |
1 |
| 32 |
9724756 |
. LEVER |
2 |
| 34 |
4179179 |
. PIN |
2 |
| 35 |
4179177 |
. PIN |
2 |
| 36 |
4200227 |
. PIN |
1 |
| 37 |
4179176 |
. PIN |
1 |
| 38 |
4146370 |
. RING; RETAINING |
6 |
| 40 |
8041179 |
. HEAD ASS'Y |
1 |
| 40 |
8041179 |
. HEAD ASS'Y |
|
| 40 |
8041517 |
. HEAD ASS'Y |
1 |
| 40 |
8041517 |
. HEAD ASS'Y |
|
| 40A |
|
.. VALVE |
1 |
| 40B |
|
.. HEAD |
1 |
| 40 |
|
. HEAD ASS'Y |
1 |
| 40A |
2035307 |
.. VALVE |
1 |
| 40B |
1011957 |
.. HEAD |
1 |
| 41 |
3036326 |
. PISTON; SERVO |
1 |
| 42 |
4193245 |
. PIN |
1 |
| 43 |
4179838 |
. SCREW; SET |
1 |
| 46 |
4099290 |
. PIN; SPRING |
2 |
| 48 |
4180349 |
. O-RING |
10 |
| 49 |
M341245 |
. BOLT; SOCKET |
8 |
| 50 |
495841 |
. WASHER; SPRING |
8 |
| 51 |
4108720 |
. PLUG |
2 |
| 51 |
4108720 |
. PLUG |
1 |
| 51A |
957366 |
.. O-RING |
1 |
| 52 |
4204862 |
. STOPPER |
1 |
| 53 |
955020 |
. O-RING |
1 |
| 59 |
984623 |
. O-RING |
1 |
| 63 |
M340820 |
. BOLT; SOCKET |
8 |
| 64 |
4514388 |
. WASHER; SPRING |
8 |
| 65 |
4216295 |
. STOPPER |
1 |
| 66 |
9075750 |
. REGULATOR |
1 |
| 69 |
A810055 |
. O-RING |
1 |
| 70 |
4515041 |
. PIN; SPRING |
2 |
| 73 |
4092534 |
. PLUG |
1 |
| 73 |
9089486 |
. PLUG |
1 |
| 73A |
4509180 |
.. O-RING |
1 |
| 75 |
3039520 |
. NAME-PLATE |
1 |
| 76 |
M492564 |
. SCREW; DRIVE |
2 |
More Branded Accessories are Available
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
