Name: Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: Ex75ur-1 Ex60ur-1
Price: 475.00 USD
Availability: InStock

Rumah > Produk > Swing Motor Assy >

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi

Hitachi swing motor assy

EX75UR-1 hydraulic motor kit

MSF-52P swing motor

Tempat asal:

Dibuat di Cina

Nama merek:

Belparts

Nomor model:

Ex75ur-1 Ex60ur-1

Hubungi Kami

Minta Kutipan

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi

Rincian produk

Model:

Ex75ur-1 Ex60ur-1

Nomor bagian:

MSF-52P 4469027

Nama model:

Excavator Swing Motor Assy

Menyorot:

Excavator EX75UR-1 EX60UR-1 Motor ayunan MSF-52P 4469027 Kit Motor Hidrolik

Nama bagian:

Hitachi Excavator Sleewing Motor

Aplikasi:

Ekskavator, Peralatan mesin teknik

Nama Produk:

Ayunan motor

Kondisi:

baru/bekas

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Negotiable price

Kemasan rincian

Pengepakan kayu

Waktu pengiriman

1-7 hari

Syarat-syarat pembayaran

T/T, PayPal dan jaminan perdagangan

Menyediakan kemampuan

1000pieces

Produk terkait

Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator

Dapatkan Harga Terbaik

Belparts swing motor assy E308 312-6319 2042748 hydraulic motor

Dapatkan Harga Terbaik

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi

Dapatkan Harga Terbaik

Hitachi excavator EX75UR-1 EX60UR-1 swing motor MSF-52P 4469027 hydraulic motor kit

Dapatkan Harga Terbaik

Hubungi Kami

+86 13247509480

belparts02@gmail.com

86-020-32384870

Hubungi Sekarang

Deskripsi Produk

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi

Product Specifications

Attribute	Value
Model	EX75UR-1 EX60UR-1
Part Number	MSF-52P 4469027
Model Name	Excavator swing motor
Part Name	Slewing motor
Brand	belparts
Condition	New/Used
Payment Methods	T/T, PayPal, Trade Assu

List of spare parts

#	Part No	Part Name	Qty.
	4469027	MOTOR; OIL	1
1	0443501	. PLATE	2
2	0443502	. PLATE	2
3	0476710	. RING; RETAINING	1
4	0443513	. BRG. ;NEEDLE	1
5	0443503	. O-RING	1
6	0476718	. O-RING	1
7	0443505	. O-RING	1
8	4509181	. O-RING	2
9	0802701	. PLATE	1
10	0443509	. PISTON	2
11	0443510	. RING	2
12	0802702	. SCROWAVE	4
13	0802703	. RING	4
14	0802704	. BUSHING	4
15	0443512	. SPRING	14
16	0443504	. PISTON	1
17	0443520	. O-RING	2
18		. CYL.	1
19	0476708	. SPRING; FLUSH	1
20		. PISTON	7
21	0476707	. PLATE	1
22	0476705	. PLATE	1
23	0476704	. BRG.; ROL.	1
24		. HOUSING	1
25	4472676	. VALVE; RELIEF	2
25A	0212313	.. O-RING	1
26	0622810	. CAP	2
27	957366	. O-RING	2
28	0476716	. PIN	2
29	0802706	. VALVE	1
30	0443521	. BOLT; SOCKET	2
31		. COVER	1
32	M341230	. BOLT; SOCKET	5
33	0443518	. CHECK	2
34	0622827	. SPRING	2
35	0212313	. O-RING	3
36	0212312	. RING; BACK-UP	2
37	0802707	. CAP	2
38	0101557	. PLUG	1

The torque output capacity of the swing motor directly determines the swing operation performance of the excavator, especially under load conditions (such as bucket full-load swing). The torque is proportional to the working pressure of the hydraulic system and the motor displacement: the higher the working pressure, the greater the thrust of the oil on the piston; the larger the motor displacement (longer piston stroke or more quantity), the stronger the torque output per rotation. Therefore, excavators designed for heavy-load operation scenarios usually match high-pressure and large-displacement swing motors to ensure that even in the full-load state, stable and powerful swing actions can still be achieved, avoiding operation stagnation due to insufficient torque.

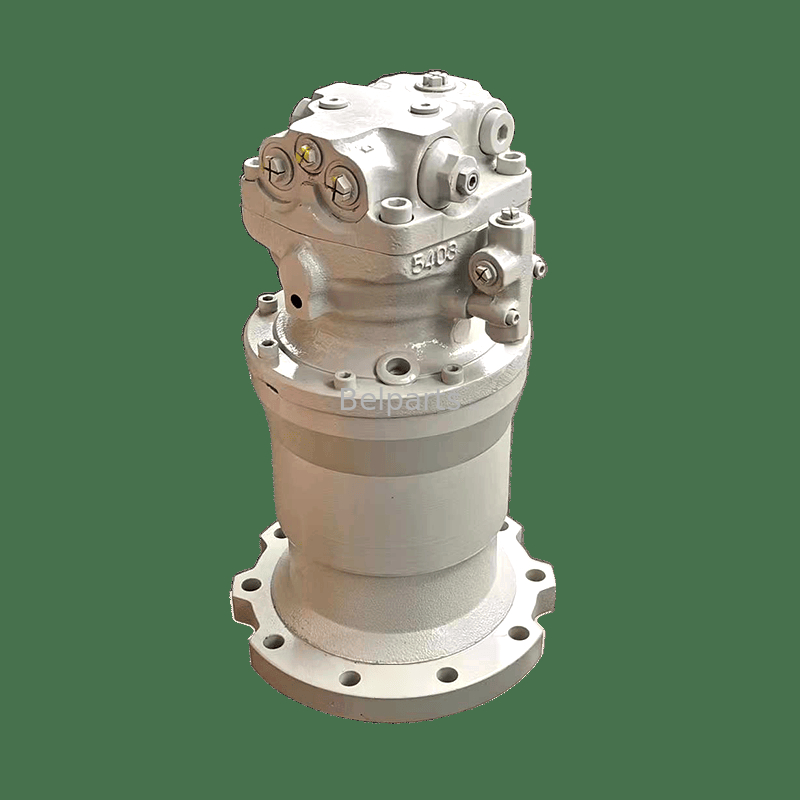

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi 1

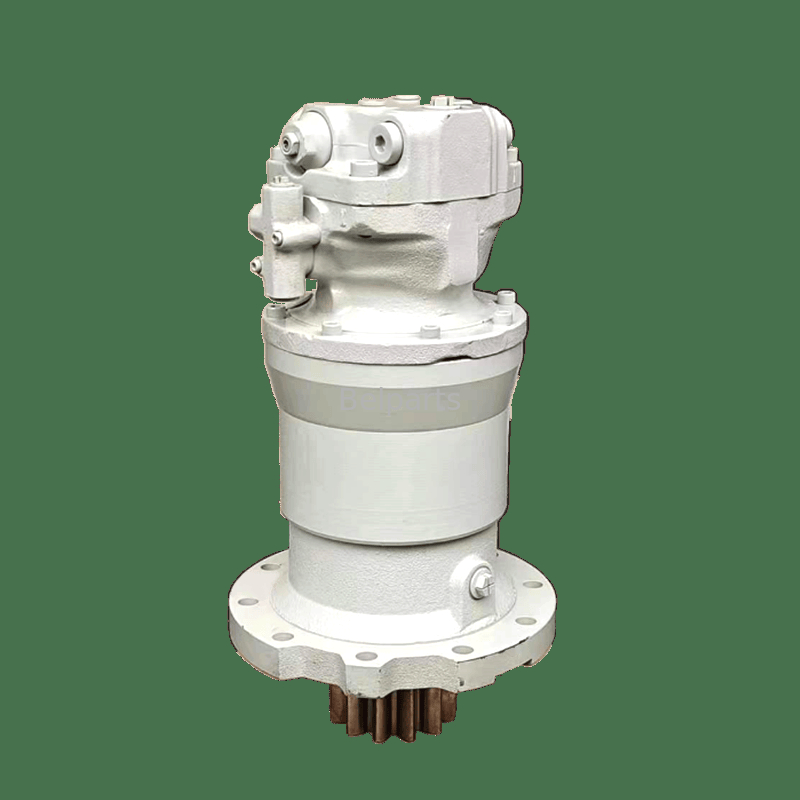

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi 2
