Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
R80-7 R80-7A R75-7
Video
Video

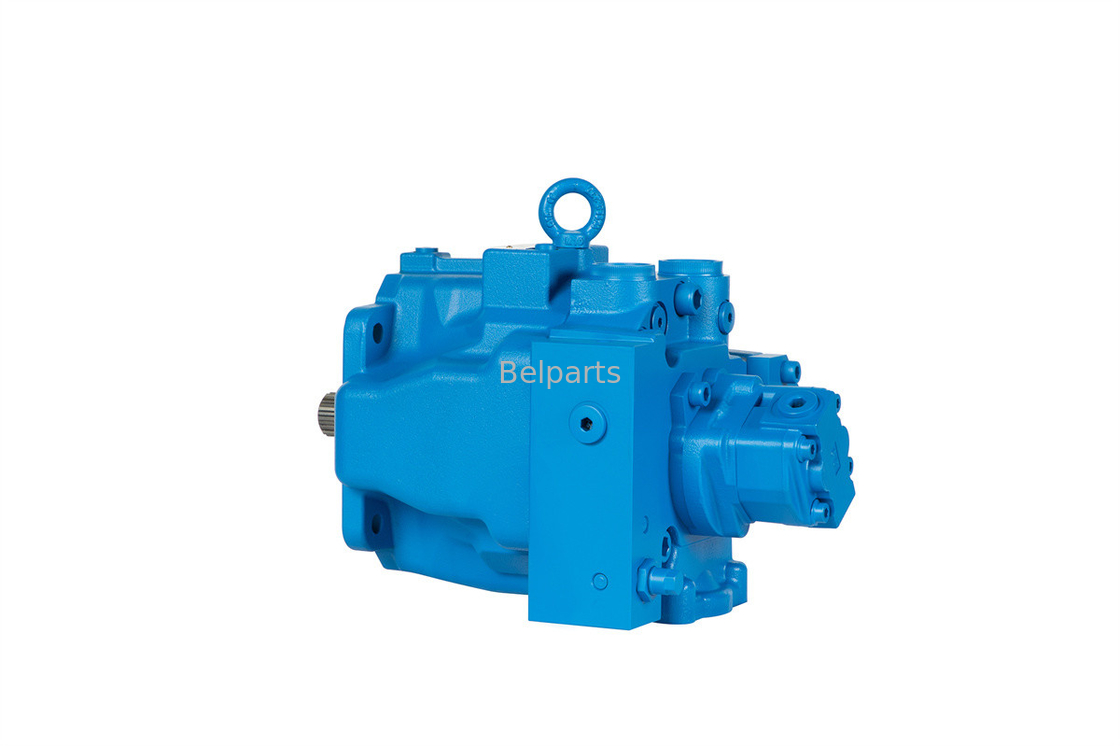

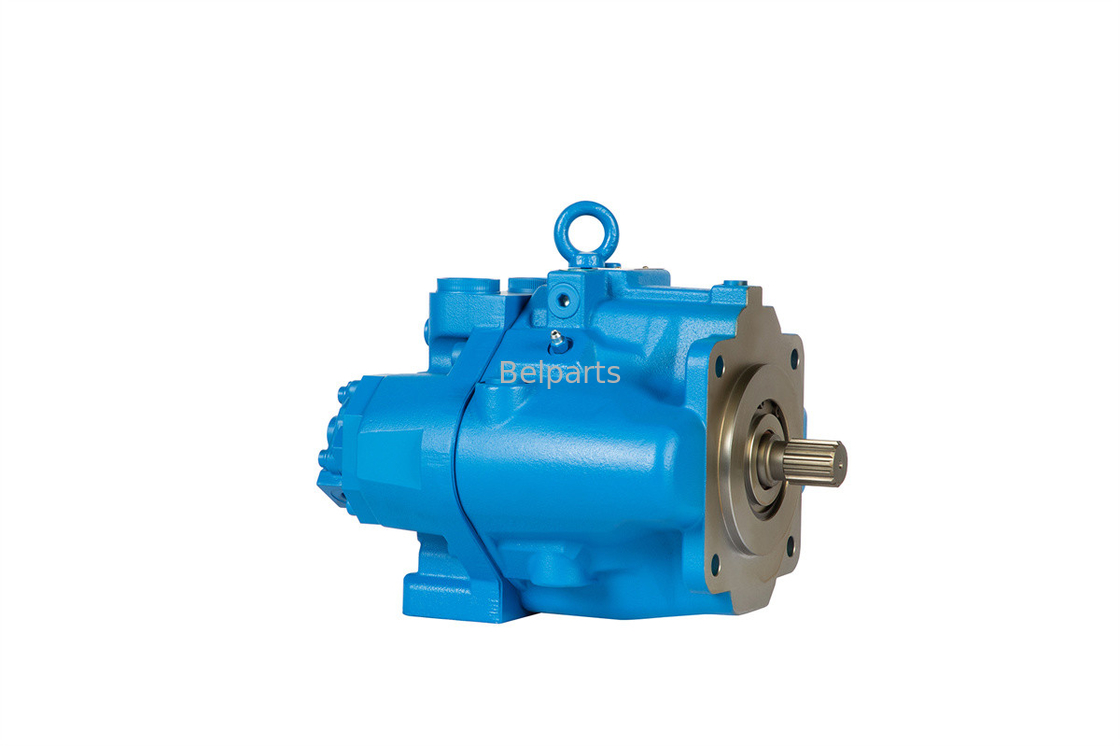

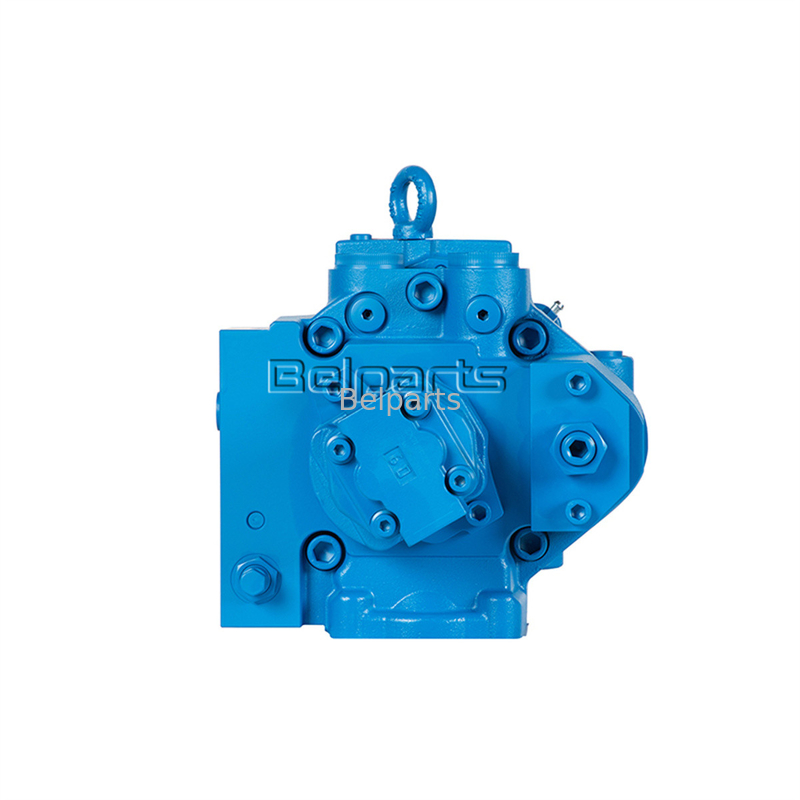

Belparts excavator pompa utama R80-7 R80-7A R75-7 pompa hidrolik 31N1-10010 XJDH-01739 untuk Hyundai
Deskripsi Produk
|
Excavator Pompa hidraulik |
|
|
Tempat Asal: |
Cina ((daratan) |
|
Model: |
R80-7 R80-7A |
|
Nomor bagian: |
31N1-10010 XJDH-01739 |
|
MOQ: |
1 PCS |
|
Tanggal pembayaran: |
T / T, jaminan perdagangan, PayPal |
|
Waktu pengiriman: |
Dalam 1 ~ 7 hari setelah menerima pembayaran |
|
Kemasan: |
Kemasan ekspor standar atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N1-10010 | Pompa Utama | 1 | |
| 1 | XJDD-00002 | SHAFT ASSY | 1 | |
| 1-1 | XJDD-00024 | SHAFT | 1 | |
| 1-2 | XJDD-00025 | Segel pemegang | 1 | |
| 1-3 | XJDD-00026 | Keterangan: | 1 | |
| 1-4 | XJDD-00027 | Pengendalian cincin | 2 | |
| 1-5 | XJDD-00028 | SEAL-OIL | 1 | |
| 1-6 | XJDD-00029 | O-RING | 1 | |
| 1-7 | XJDD-00030 | Pengendalian cincin | 1 | |
| 2 | XJDD-00003 | SWAASH PLATE ASSY | 1 | |
| 2-1 | XJDD-00031 | GARUH | 1 | |
| 2-2 | XJDD-00032 | Panduan | 1 | |
| 2-4 | XJDD-00033 | Panduan | 1 | |
| 2-6 | XJDD-00034 | O-RING | 1 | |
| 2-7 | XJDD-00035 | RING-BACK UP | 1 | |
| 2-8 | XJDD-00036 | PLUG | 2 | |
| 2-9 | XJDD-00037 | PIN | 1 | |
| 2-10 | XJDD-00038 | BUSHING | 1 | |
| 3 | XJDD-00004 | ROTARY GROUP | 1 | |
| 3-1 | XJDD-00039 | Piston | 10 | |
| 3-2 | XJDD-00040 | Blok-silinder | 1 | |
| 3-3 | XJDD-00041 | Pengendali | 1 | |
| 3-5 | XJDD-00042 | Panduan | 1 | |
| 3-6 | XJDD-00043 | SPRING | 1 | |
| 3-7 | XJDD-00044 | PIN-PARALEL | 3 | |
| 3-8 | XJDD-00045 | SPACER-SPRING | 2 | |
| 3-9 | XJDD-00046 | Pengendalian cincin | 1 | |
| 5 | XJDD-00006 | Pengendalian ASSY SPRING | 1 | |
| 5-1 | XJDD-00056 | SPACER-SPRING | 1 | |
| 5-2 | XJDD-00057 | SPACER-SPRING | 1 | |
| 5-3 | XJDD-00058 | PELUAR | 1 | |
| 5-4 | XJDD-00059 | Pengaturan sekrup | 1 | |
| 5-5 | XJDD-00060 | SPRING | 1 | |
| 5-6 | XJDD-00061 | SPRING | 1 | |
| 5-7 | XJDD-00062 | O-RING | 1 | |
| 5-8 | XJDD-00063 | BOLT | 2 | |
| 5-9 | XJDD-00064 | NUT | 1 | |
| 5-10 | XJDD-00065 | Panduan | 1 | |
| 5-34 | XJDD-00066 | SHIM ((0.3T) | 2 | |
| 5-44 | XJDD-00067 | SHIM ((0.5T) | 2 | |
| 5-54 | XJDD-00068 | SHIM ((1.0T) | 2 | |
| 6 | XJDD-00007 | Pengendalian ASSY SPRING | 1 | |
| 6-1 | XJDD-00069 | Silinder | 1 | |
| 6-2 | XJDD-00070 | Piston | 1 | |
| 6-3 | XJDD-00071 | Piston | 1 | |
| 6-4 | XJDD-00072 | PEMBALANG-PLATE | 4 | |
| 6-5 | XJDD-00073 | SPACER | 1 | |
| 6-6 | XJDD-00074 | SPACER | 1 | |
| 6-7 | XJDD-00075 | SPACER | 1 | |
| 6-8 | XJDD-00076 | SPACER | 1 | |
| 8 | XJDD-00009 | Perumahan | 1 | |
| 9 | XJDD-00010 | Ventilasi udara katup | 1 | |
| 10 | XJDD-00011 | BUSHING | 1 | |
| 11 | XJDD-00012 | Baja bola | 1 | |
| 12 | XJDD-00013 | PLUG | 1 | |
| 13 | XJDD-00014 | PLUG | 1 | |
| 14 | XJDD-00015 | Pengemasan | 1 | |
| 15 | XJDD-00016 | SHIM | 1 | |
| 16 | XJDD-00017 | PLUG | 1 | |
| 17 | XJDD-00018 | NAME PLATE ASSY | 1 | |
| 19 | XJDD-00020 | PLUG | 1 | |
| 22 | XJDD-00021 | Plug ASSY | 1 | |
| 23 | XJDD-00022 | Oriffice | 1 | |
| 25 | 1800174537 | 2 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
Motor dua arah | L1 | L | Berat badan (kg) |
|||||||
Berkualitas |
Maksimal |
Optimum buang air kecil |
Kecepatan rentang |
Inlet |
Outlet |
/ Inlet/Outlet |
|||||||||
| D | d | D | d | D | d | ||||||||||
| CMW-F204-C*** | 4 | 20 | 25 | 1500 2500 |
800 3000 |
90 | 8 | 35 | 10 | 40 | 10 | 35 | 85.5 | 131.5 | 3.7 |
| CMW-F206-C*** | 6 | 10 | 15 | 87 | 134 | 3.8 | |||||||||
| CMW-F208-C*** | 8 | 15 | 88.8 | 137.5 | 3.9 | ||||||||||
| CMW-F211-C*** | 11 | 15 | 18 | 91.2 | 142.5 | 4.0 | |||||||||
| CMW-F212.5-C**** | 12.5 | 20 | 92.8 | 145.5 | 4.1 | ||||||||||
| CMW-F216-C*** | 16 | 95.5 | 151 | 4.2 | |||||||||||
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
Motor dua arah | L1 | L | Berat badan (kg) |
|||||||
Berkualitas |
Maksimal |
Optimum buang air kecil |
Kecepatan rentang |
Inlet |
Outlet |
/ Inlet/Outlet |
|||||||||
| D | d | D | d | D | d | ||||||||||
| CMW3-F204-C1*** | 04 | 20 | 25 | 1500 2500 |
800 3000 |
90 | 8 | 35 | 10 | 40 | 10 | 35 | 40.3 | 87 | 2.7 |
| CMW3-F206-C1* | 06 | 10 | 15 | 41.5 | 89.5 | 2.8 | |||||||||
| CMW3-F208-C1*★★ | 08 | 15 | 42.3 | 93 | 2.9 | ||||||||||
| CMW3-F211-C1** | 11 | 15 | 18 | 44 | 98 | 3 | |||||||||
| CMW3-F212.5-C1★★★ | 12.5 | 20 | 46.3 | 101 | 3.1 | ||||||||||
| CMW3-F216-C1 | 16 | 49 | 107 | 3.2 | |||||||||||
| CMW3-F220-C1*** | 20 | 53.5 | 114 | 3.3 | |||||||||||
Informasi Perusahaan
GZ Yuexiang Engineering Machinery Co., Ltd, didirikan pada bulan September 2013, adalah perusahaan perdagangan luar negeri yang mengkhususkan diri dalam
membeli dan menjual bagian excavator. Produk utama kami adalah excavator pompa hidrolik, bagian hidrolik, motor perjalanan dan gearbox, swing motor dan gearbox.Produk kami telah diekspor ke lebih dari 100 negara dan wilayah.
