Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
R480LC-9 R520LC-9 R370LC-7
Video
Video

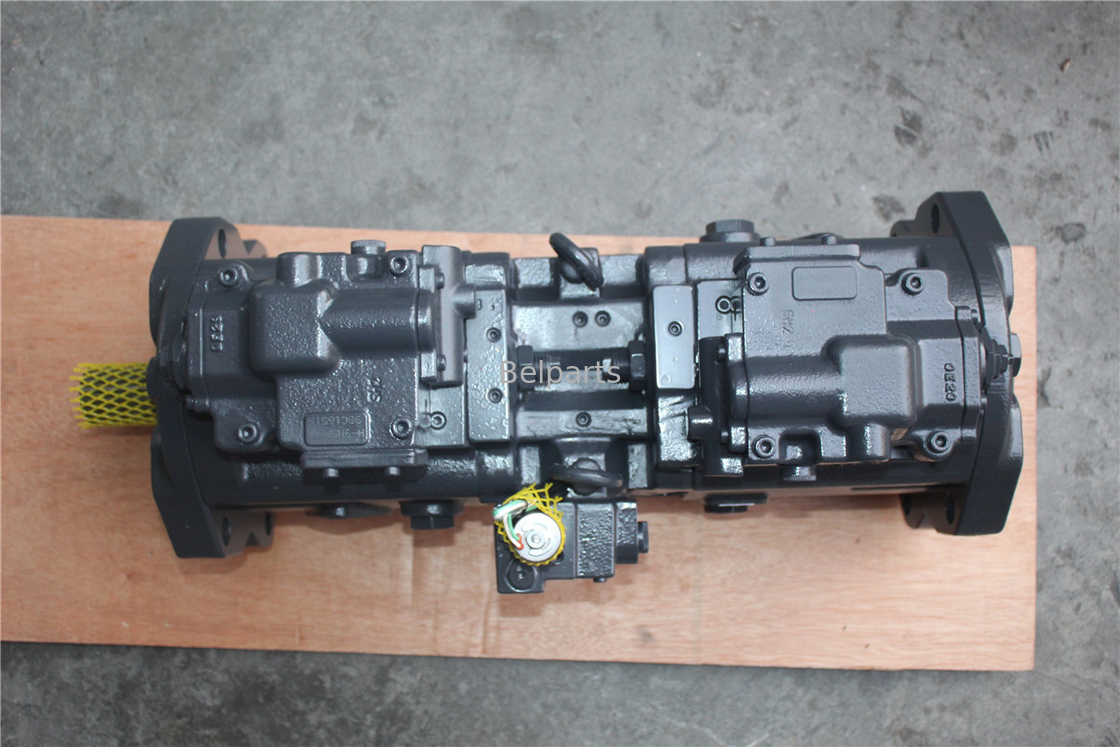

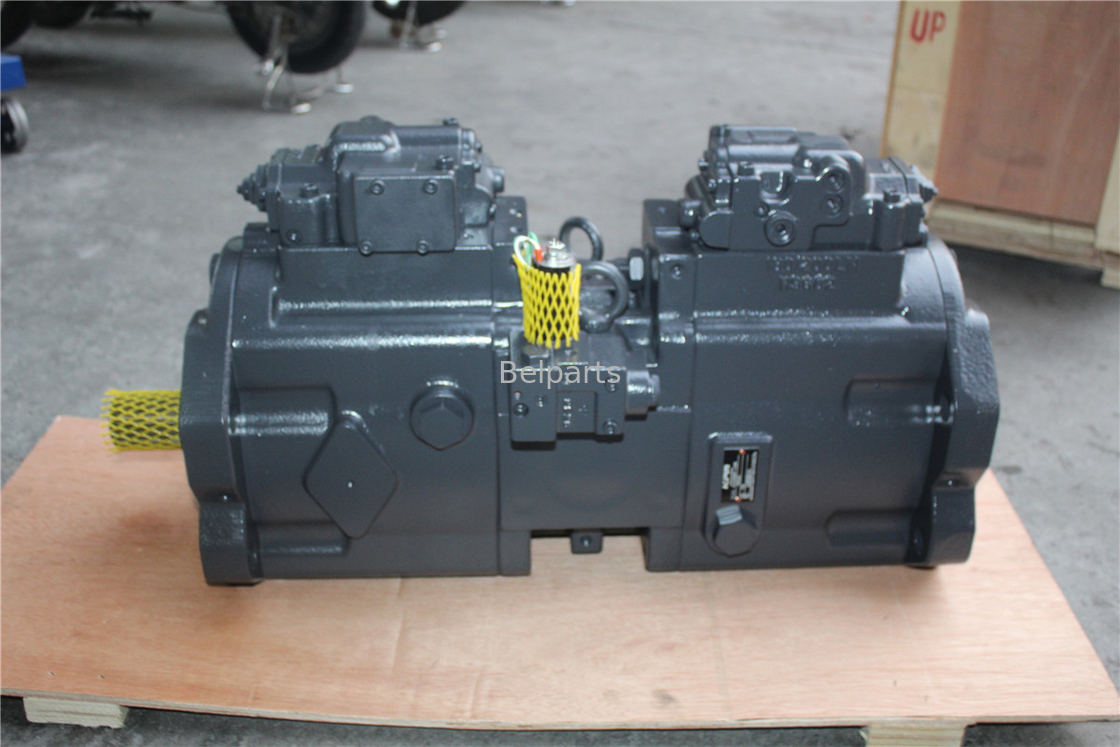

Belparts excavator pompa utama R480LC-9 R520LC-9 R370LC-7 pompa hidrolik 31QB-10011 31NA-10020 untuk Hyundai
Deskripsi Produk
|
Excavator Pompa hidraulik |
|
|
Tempat Asal: |
Cina ((daratan) |
|
Model: |
R480LC-9 R520LC-9 R370LC-7 |
|
Nomor bagian: |
31QB-10011 31NA-10020 |
|
MOQ: |
1 PCS |
|
Tanggal pembayaran: |
T / T, jaminan perdagangan, PayPal |
|
Waktu pengiriman: |
Dalam 1 ~ 7 hari setelah menerima pembayaran |
|
Kemasan: |
Kemasan ekspor standar atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31QB-10011 | Pompa Utama *-1,-2,-3,-4 |
1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00976 | SHAFT-DRIVE ((F) | 1 | |
| 113 | XJBN-00977 | SHAFT-DRIVE ((R) | 1 | |
| 114 | XJBN-00572 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00571 | Berkas-Roller | 2 | |
| 124 | XJBN-00978 | Jaring bantalan | 2 | |
| 127 | XJBN-00569 | SPACE-LAYER | 3 | |
| 130 | XJBN-00568 | Booster | 1 | |
| N012 | XJBN-00680 | Blok-silinder | 2 | |
| N151 | XJBN-00681 | Piston | 18 | |
| N152 | XJBN-01522 | Sepatu | 18 | |
| 153 | XJBN-00683 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | Sepatu plat | 2 | |
| N212 | XJBN-00012 | Plat-Swash | 2 | |
| N214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00560 | Dukungan-SP. | 2 | |
| 261 | XJBN-00025 | COVER ((FR) - SEAL | 1 | |
| 263 | XJBN-00979 | COVER ((RR) - SEAL | 1 | |
| 271 | XJBN-01594 | Casing-Pump | 2 | |
| 311 | XJBN-00559 | VALVEL COVER ((F) | 1 | |
| 312 | XJBN-00558 | VALVEL COVER ((R) | 1 | |
| N313 | XJBN-01387 | PLATE ((R) -VALVE | 1 | |
| N314 | XJBN-01388 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00028 | PELUANG | 4 | |
| 402 | XJBN-00555 | SCREW-HEX SOC HD | 4 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 8 | |
| 466 | XJBN-00356 | PLUG | 4 | |
| 468 | XJBN-00031 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 28 | |
| 492 | XJBN-00234 | PLUG | 1 | |
| N531 | XJBN-00981 | PING-TILT | 2 | |
| 532 | XJBN-00703 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER ((L) | 2 | |
| 535 | XJBN-00035 | STOPPER (S) | 2 | |
| N548 | XJBN-00360 | PIN-feed kembali | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 706 | XJBN-00982 | O-RING | 1 | |
| 710 | XJBN-00983 | O-RING | 2 | |
| 717 | XJBN-00984 | O-RING | 2 | |
| 719 | XJBN-00985 | O-RING | 3 | |
| 724 | XJBN-00902 | O-RING | 15 | |
| 725 | XJBN-00903 | O-RING | 10 | |
| 728 | XJBN-00905 | O-RING | 4 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-01595 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00051 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00054 | Pin-SPRING | 5 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00553 | SETUAN SELINGKAP | 2 | |
| 956 | XJBN-01181 | SETUAN SELINGKAP | 8 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00455 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, depan |
1 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4030, Belakang |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4040 |
1 | |
| S011 | XJBN-01523 | PISTON ASSY Lihat ILLUST |
2 | |
| S013 | XJBN-01383 | Silinder ASSY-RH Lihat ILLUST |
1 | |
| S014 | XJBN-01384 | Silinder ASSY-LH Lihat ILLUST |
1 | |
| S030 | XJBN-00011 | SWAASH PLATE ASSY Lihat ILLUST |
2 | |
| S530 | XJBN-00986 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| N | @ | Pipa injeksi bahan bakar & NOZZLE | AR |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | Berat badan (kg) |
||||
Berkualitas |
Maksimal |
Min. |
Berkualitas |
Maksimal |
||||||
| CBXM-F10-AT** | 10 | 20 | 25 | 800 | 2000 | 2500 | 92 | 72 | 92 | 1.9 |
| CBXM-F16.8-AT** | 16.8 | 80.5 | 100.5 | 2.2 | ||||||
| CBXM-F2O-AT** | 20 | 84.5 | 104.5 | 2.3 | ||||||
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
Berat badan (kg) |
||
Berkualitas |
Maksimal |
Kecepatan optimal |
Jangkauan kecepatan |
||||
| KS55-G14 | 14 | 20 | 25 | 1500 ₹2500 | 600 ¢ 3000 | 92 | |
| KS55-G17 | 17 | 20 | 25 | 1500 ~ 2500 | 600 ¢ 3000 | 92 | |
Informasi Perusahaan
GZ Yuexiang Engineering Machinery Co., Ltd, didirikan pada bulan September 2013, adalah perusahaan perdagangan luar negeri yang mengkhususkan diri dalam
membeli dan menjual bagian excavator. Produk utama kami adalah excavator pompa hidrolik, bagian hidrolik, motor perjalanan dan gearbox, swing motor dan gearbox.Produk kami telah diekspor ke lebih dari 100 negara dan wilayah.
