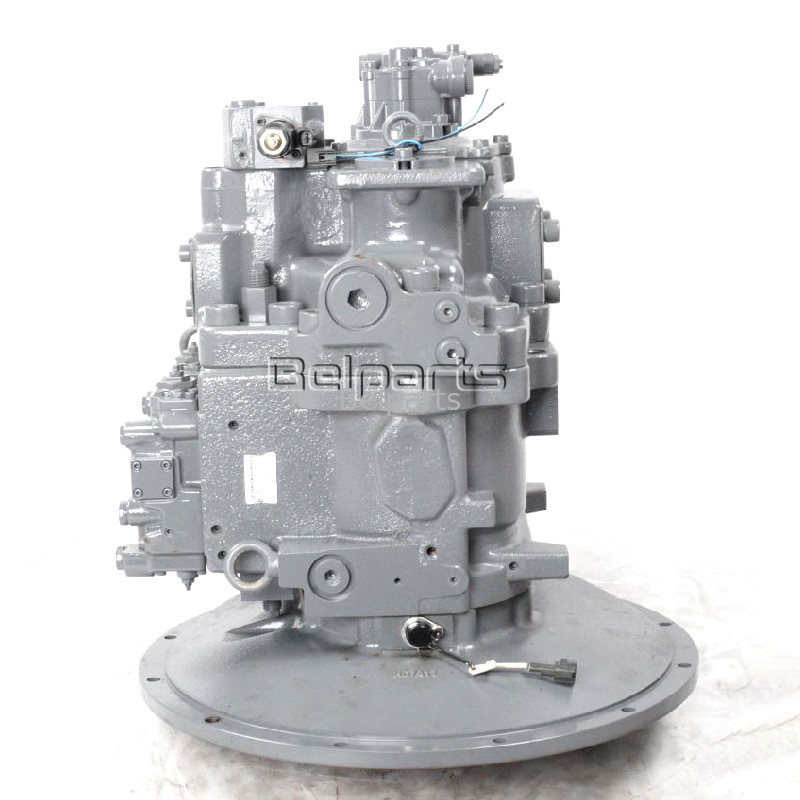

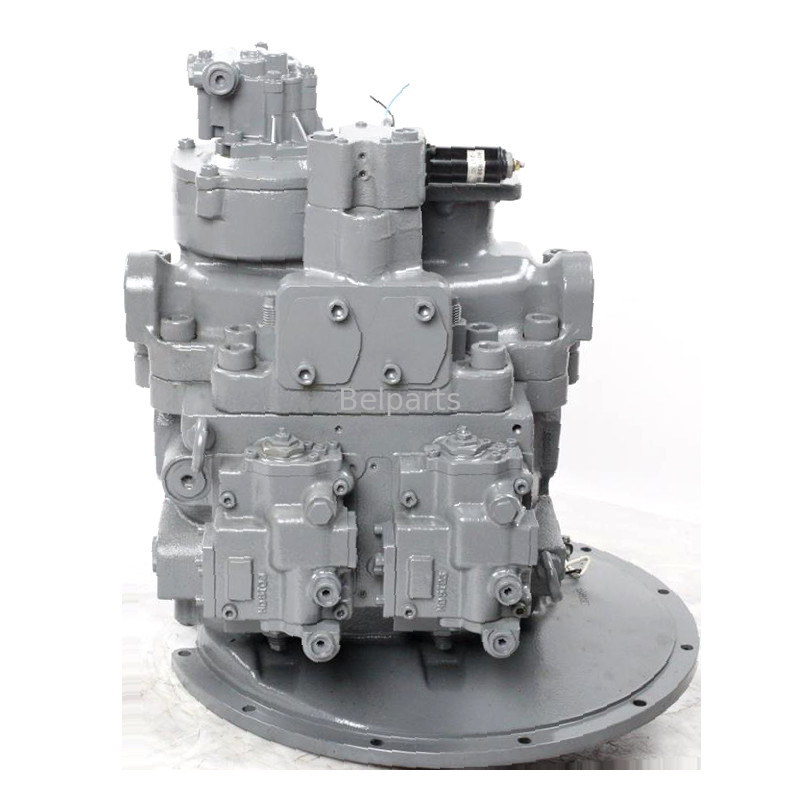

Belparts excavator pompa utama R450LC-7 R500LC-7 pompa hidrolik 31NB-10010 31NB-10020 31NB-10022 untuk Hyundai
Deskripsi Produk
|
Excavator Pompa hidraulik |
|
|
Tempat Asal: |
Cina ((daratan) |
|
Model: |
R450LC-7 R500LC-7 |
|
Nomor bagian: |
31NB-10010 31NB-10020 |
|
MOQ: |
1 PCS |
|
Tanggal pembayaran: |
T / T, jaminan perdagangan, PayPal |
|
Waktu pengiriman: |
Dalam 1 ~ 7 hari setelah menerima pembayaran |
|
Kemasan: |
Kemasan ekspor standar atau sesuai kebutuhan |

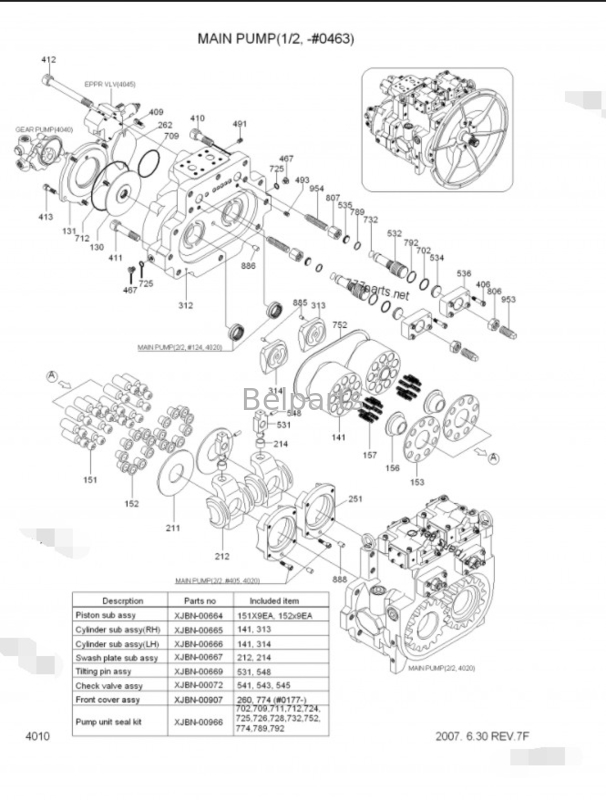

| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31NB-10010 | Pompa Utama | 1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 130 | XJBN-00678 | Booster | 1 | |
| 131 | XJBN-00679 | COVER-BOOSTER | 1 | |
| S141 | XJBN-00680 | Blok-silinder | 2 | |
| S151 | XJBN-00681 | Piston | 18 | |
| S152 | XJBN-00682 | Sepatu | 18 | |
| 153 | XJBN-00683 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | Sepatu plat | 2 | |
| S212 | XJBN-00687 | Plat-Swash | 2 | |
| S214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00688 | Dukungan | 2 | |
| 262 | XJBN-00690 | PELUAR | 1 | |
| 312 | XJBN-00692 | Katup penutup | 1 | |
| S313 | XJBN-00557 | PEMBALANG PLATE-VALVE ((R) | 1 | |
| S314 | XJBN-00556 | VALVEL PLATE ((L) | 1 | |
| 406 | XJBN-00694 | Screw-hex | 8 | |
| 409 | XJBN-00696 | Screw-hex | 2 | |
| 410 | XJBN-00697 | Screw-hex | 9 | |
| 411 | XJBN-00698 | Screw-hex | 2 | |
| 412 | XJBN-00699 | Screw-hex | 1 | |
| 413 | XJBN-00700 | Screw-hex | 5 | |
| 467 | XJBN-00265 | PLUG | 2 | |
| 491 | XJBN-00234 | PLUG | 14 | |
| 493 | XJBN-00148 | PLUG | 2 | |
| S531 | XJBN-00702 | PING-TILT | 2 | |
| 532 | XJBN-00703 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER ((L) | 2 | |
| 535 | XJBN-00704 | STOPPER ((L) | 2 | |
| 536 | XJBN-00705 | COVER-SERVO | 2 | |
| S548 | XJBN-00360 | PIN-feed kembali | 2 | |
| K702 | XJBN-00040 | O-RING | 2 | |
| K709 | XJBN-00899 | O-RING | 1 | |
| K712 | XJBN-00901 | O-RING | 1 | |
| K725 | XJBN-00903 | O-RING | 6 | |
| K732 | XJBN-00047 | O-RING | 2 | |
| K752 | XJBN-00707 | Pengemasan SEAL | 2 | |
| K789 | XJBN-00049 | RING-BACK UP | 2 | |
| K792 | XJBN-00050 | RING-BACK UP | 2 | |
| 806 | XJBN-00364 | NUT | 2 | |
| 807 | XJBN-00708 | NUT | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 888 | XJBN-00712 | PIN | 2 | |
| 953 | XJBN-00057 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00713 | SETUAN SELINGKAP | 2 | |
| *-2 | XJBN-00714 | Pengatur ASSY | 1 | |
| *-3 | XJBN-00663 | Pompa Girasi | 1 | |
| *-4 | XJBN-00668 | CASING ASSY-EPPR VLV | 1 | |
| 011 | XJBN-00664 | PISTON ASSY Lihat ILLUST |
2 | |
| 013 | XJBN-00665 | Silinder ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-00666 | Silinder ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00667 | SWAASH PLATE ASSY Lihat ILLUST |
1 | |
| 530 | XJBN-00669 | TILTING PIN SUB ASSY Lihat ILLUST |
1 | |
| 041 | XJBN-00072 | Periksa klep ASSY 1 Lihat ILLUST |
1 | |
| 260 | XJBN-00907 | Bagian depan ASSY Lihat ILLUST |
1 | |
| K | XJBN-00966 | SEAL KIT-PUMP UNIT Lihat ILLUST |
1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
|||||||
| AP2D-16.2/4.5 | 16.2/4.5 | 22/5 | 25/8 | 800 | 2000 | 3000 | 92/92 | 45.2 | 130.2 | 145 | 5.55 |
| AP2D-16.2/6.5 | 16.2/6.5 | 92/92 | 45.2 | 132 | 147 | 5.6 | |||||
| AP2D-18.2/4.5 | 18.2/4.5 | 92/92 | 46 | 132 | 149 | 5.7 | |||||
| AP2D-18.2/6.5 | 18.2/6.5 | 92/92 | 46 | 133 | 151 | 5.73 | |||||
| AP2D-20/4.5 | 20/4.5 | 92/92 | 47.2 | 136 | 156 | 5.85 | |||||
| AP2D-20/6.5 | 20/6.5 | 92/92 | 47.2 | 133 | 151 | 5.8 | |||||
| AP2D-23/4.5 | 23/4.5 | 92/92 | 50 | 140.5 | 159 | 5.9 | |||||
| AP2D-23/6.5 | 23/6.5 | 92/92 | 50 | 141.5 | 161 | 5.96 | |||||
| AP2D-23/9 | 23/9 | 92/92 | 50 | 143 | 163 | 6.1 | |||||
Informasi Perusahaan
GZ Yuexiang Engineering Machinery Co., Ltd, didirikan pada bulan September 2013, adalah perusahaan perdagangan luar negeri yang mengkhususkan diri dalam
membeli dan menjual bagian excavator. Produk utama kami adalah excavator pompa hidrolik, bagian hidrolik, motor perjalanan dan gearbox, swing motor dan gearbox.Produk kami telah diekspor ke lebih dari 100 negara dan wilayah.
