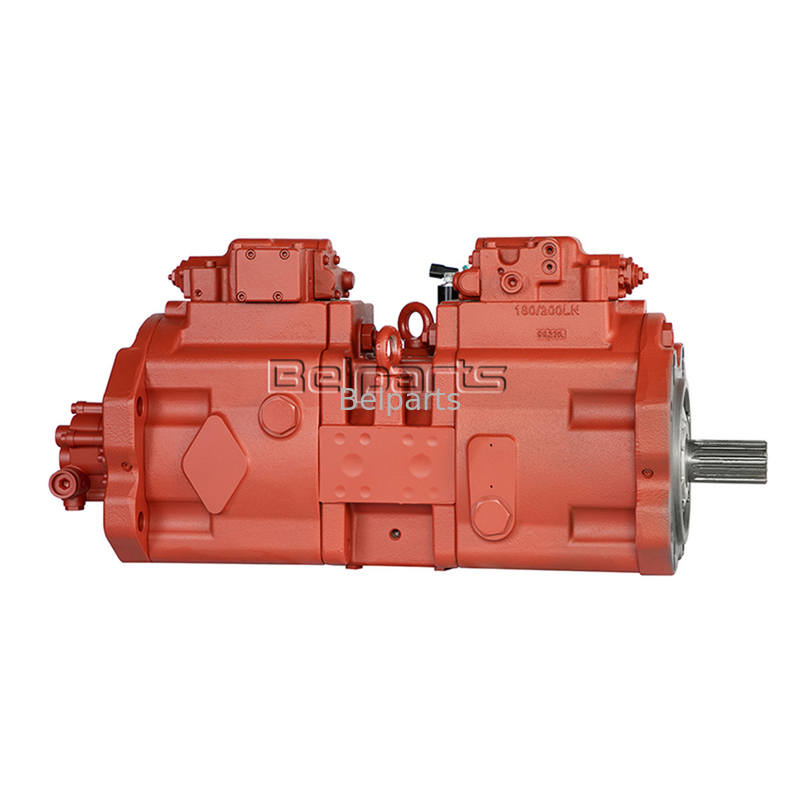

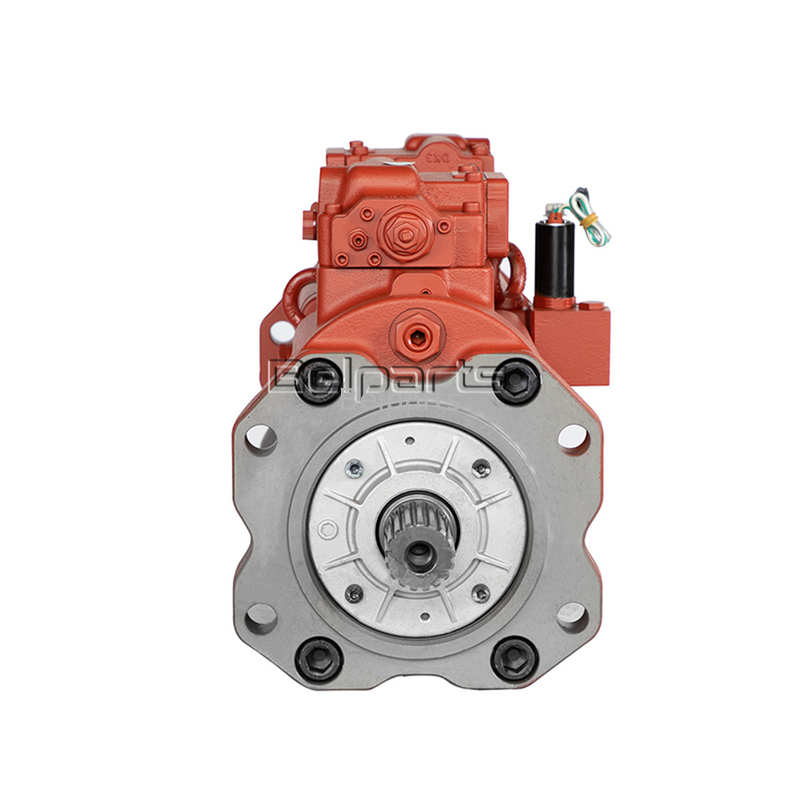

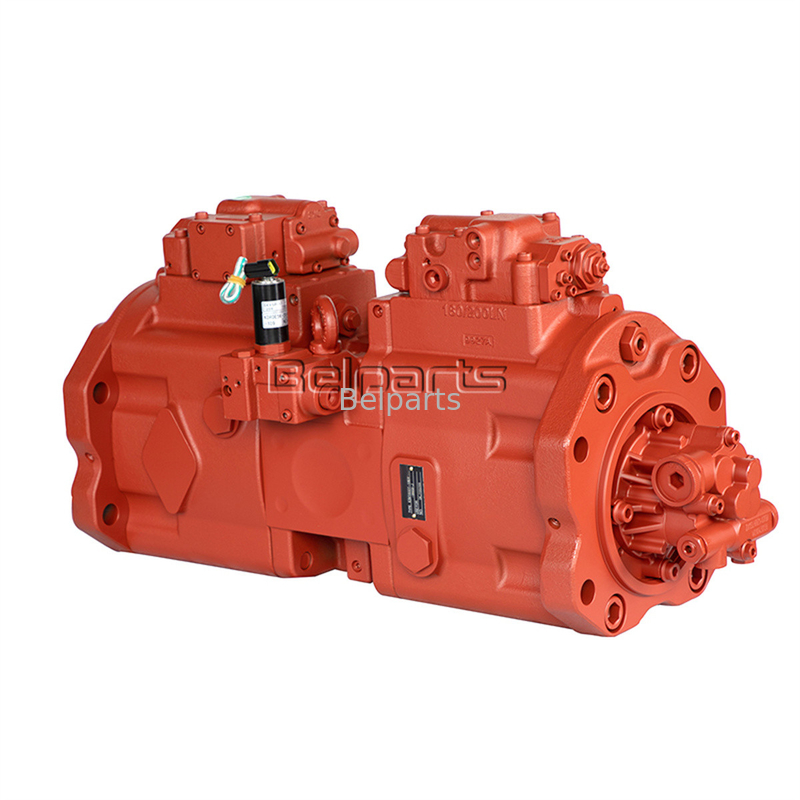

Belparts excavator pompa utama R320LC-7 R320LC-7A R320LC-9 pompa hidrolik 31Q9-10010 31N9-10010 untuk Hyundai
Tempat Asal:Buatan China
Nama merek:Belparts
Nomor Model:R320LC-7 R320LC-7A R320LC-9
Jumlah Pesanan Minimum:1pcs
Harga:Negotiated price
Ketentuan Pembayaran:T/T, jaminan perdagangan , PayPal
Kemampuan Pasokan:1000 PCS
Rincian produk
Menyoroti:
R320LC-7A pompa utama excavator
,Hyundai excavator pompa utama
,R320LC-9 pompa utama excavator
Model:
R320LC-7 R320LC-7A R320LC-9
Warranty:
1 Tahun
Weight:
40KG
Condition:
100% Baru
Texture:
Baja
Part Name:
Pompa hidrolik/pompa utama
Quality:
Kualitas Tinggi
Deskripsi Produk
Belparts excavator pompa utama R320LC-7 R320LC-7A R320LC-9 pompa hidrolik 31Q9-10010 31N9-10010 untuk Hyundai
Deskripsi Produk
Nama produk Excavator Pompa hidraulik
Tempat Asal: Cina ((daratan)
Model: R320LC-7 R320LC-7A
Nomor bagian: 31Q9-10010 31N9-10010
MOQ: 1 PCS
| Nama produk: | Excavator Pompa hidraulik |
| Tempat Asal: | Cina ((daratan) |
| Model: | R320LC-7 R320LC-7A |
| Nomor bagian: | 31Q9-10010 31N9-10010 |
| MOQ: | 1 PCS |
| Tanggal pembayaran: | T / T, jaminan perdagangan, PayPal |
| Waktu pengiriman: | Dalam 1 ~ 7 hari setelah menerima pembayaran |
| Kemasan: | Kemasan ekspor standar atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N9-10010 | Pompa Utama | 1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| S012 | XJBN-00567 | Blok-silinder | 2 | |
| 111 | XJBN-00015 | SHAFT-DRIVE ((F) | 1 | |
| 113 | XJBN-00153 | SHAFT-DRIVE ((R) | 1 | |
| 114 | XJBN-00367 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00017 | Berkas-Roller | 2 | |
| 124 | XJBN-00018 | Jaring bantalan | 2 | |
| 127 | XJBN-00019 | SPACE-LAYER | 3 | |
| S151 | XJBN-00566 | Piston | 1 | |
| S152 | XJBN-00565 | Sepatu | 1 | |
| 153 | XJBN-00020 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | Sepatu plat | 2 | |
| S212 | XJBN-00012 | Plat-Swash | 1 | |
| S214 | XJBN-00013 | BUSHING-TILTING | 1 | |
| 251 | XJBN-00560 | Dukungan-SP. | 2 | |
| 261 | XJBN-00025 | COVER ((FR) - SEAL | 1 | |
| 271 | XJBN-00026 | Casing-Pump | 2 | |
| 312 | XJBN-00027 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00557 | PEMBALANG PLATE-VALVE ((R) | 1 | |
| S314 | XJBN-00556 | VALVEL PLATE ((L) | 1 | |
| 325 | XJBN-00380 | CASE-VALVE | 1 | |
| 401 | XJBN-00028 | PELUANG | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 3 | |
| 490 | XJBN-00032 | PLUG | 30 | |
| S531 | XJBN-00369 | PING-TILT | 1 | |
| 532 | XJBN-00033 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER ((L) | 2 | |
| 535 | XJBN-00035 | STOPPER (S) | 2 | |
| 541 | XJBN-00036 | SEAT | 4 | |
| 543 | XJBN-00037 | Stopper 1 | 2 | |
| 544 | XJBN-00039 | Stopper 2 | 2 | |
| 545 | XJBN-00359 | Baja bola | 4 | |
| S548 | XJBN-00360 | PIN-feed kembali | 1 | |
| K702 | XJBN-00040 | O-RING | 2 | |
| K710 | XJBN-00041 | O-RING | 1 | |
| K717 | XJBN-00042 | O-RING | 2 | |
| K719 | XJBN-00043 | O-RING | 2 | |
| K724 | XJBN-00044 | O-RING | 16 | |
| K725 | XJBN-00362 | O-RING | 4 | |
| K727 | XJBN-00283 | O-RING | 1 | |
| K728 | XJBN-00363 | O-RING | 3 | |
| K732 | XJBN-00047 | O-RING | 2 | |
| K774 | XJBN-00906 | SEAL-OIL | 1 | |
| K789 | XJBN-00049 | RING-BACK UP | 2 | |
| K792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00654 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00057 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00391 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | XJBN-00656 | Pengatur | 1 | |
| *-3 | XJBN-00655 | Pompa Girasi | 1 | |
| 011 | XJBN-00563 | PISTON ASSY Lihat ILLUST |
18 | |
| 013 | XJBN-00562 | Silinder ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-00561 | Silinder ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00011 | SWAASH PLATE ASSY Lihat ILLUST |
2 | |
| 530 | XJBN-00371 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| K | XJBN-01108 | SEAL KIT-PUMP UNIT Lihat ILLUST |
1 |
Model |
Nominal pergeseran (mr) Pompa depan Pompa belakang |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) Pompa depan/ Pompa belakang |
L1 | L2 | L | Prancis Sisi Inlet |
Berat badan (kg) |
||||||||
| Pompa depan | Pompa belakang | ||||||||||||||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
|||||||||||||
| D₁ | a | b | D₂ | C | d | ||||||||||||
| CBTL-F410/F410-AF** | 10/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/92 | 57 | 166 | 226.5 | 23 | 47.6 | 22.2 | 23 | 47.6 | 22.2 | 5.5 |
| CBTL-F416/F410-AF** | 16/10 | 60.3 | 172.5 | 233 | 5.8 | ||||||||||||
| CBTL-F416/F416-AF** | 16/16 | 175.8 | 239.5 | 6.1 | |||||||||||||
| CBTL-F416/F410-AF** | 20/10 | 62.5 | 177 | 237.5 | 26 | 52.4 | 26.2 | 6.0 | |||||||||
| CBTL-F420/F416-AF** | 20/16 | 180.3 | 244 | 6.3 | |||||||||||||
| CBTL-F420/F420-AF** | 20/20 | 16/16 | 20/20 | 600 | 182.5 | 248.5 | 26 | 52.4 | 26.2 | 6.5 | |||||||
| CBTL-F425/F410-AF** | 25/10 | 20/20 | 25/25 | 800 | 65.5 | 175.3 | 244 | 23 | 47.6 | 22.2 | 6.3 | ||||||
| CBTL-F425/F416-AF** | 25/16 | 16/16 | 20/20 | 183.6 | 250.5 | 6.5 | |||||||||||
| CBTL-F425/F420-AF** | 25/20 | 600 | 188.6 | 255 | 26 | 52.4 | 26.2 | 6.7 | |||||||||
| CBTL-F430/F410-AF** | 30/10 | 800 | 67.8 | 187.6 | 248 | 23 | 47.6 | 22.2 | 6.5 | ||||||||
| CBTL-F410/F416-AF** | 30/16 | 193 | 254.5 | 6.7 | |||||||||||||
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) |  Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Optimum kecepatan |
Jangkauan kecepatan |
||||||||
| CBSL-G25/G19-AF* | 25/19 | 25/25 | 27.5/27.5 | 1500-2500 | 800-3000 | 92/92 | 68.5 | 154.5 | 217 | 11.5 | |
| CBSL-G25/G23-AF* | 25/23 | 156.5 | 219 | 11.8 | |||||||
| CBSL-G25/G25-AF* | 25/25 | 157.5 | 220 | 12.1 | |||||||
| CBSL-G28/G28-AF* | 28/28 | 70.3 | 162.8 | 230 | 12.4 | ||||||
| CBSL-G33/G19-AF* | 33/19 | 73 | 163.5 | 226 | 12.1 | ||||||
| CBSL-G33/G23-AF* | 33/23 | 165.5 | 230 | 12.4 | |||||||
| CBSL-G38/G19-AF* | 38/19 | 20/25 | 25/27.5 | 77.8 | 173 | 235 | 12.8 | ||||
