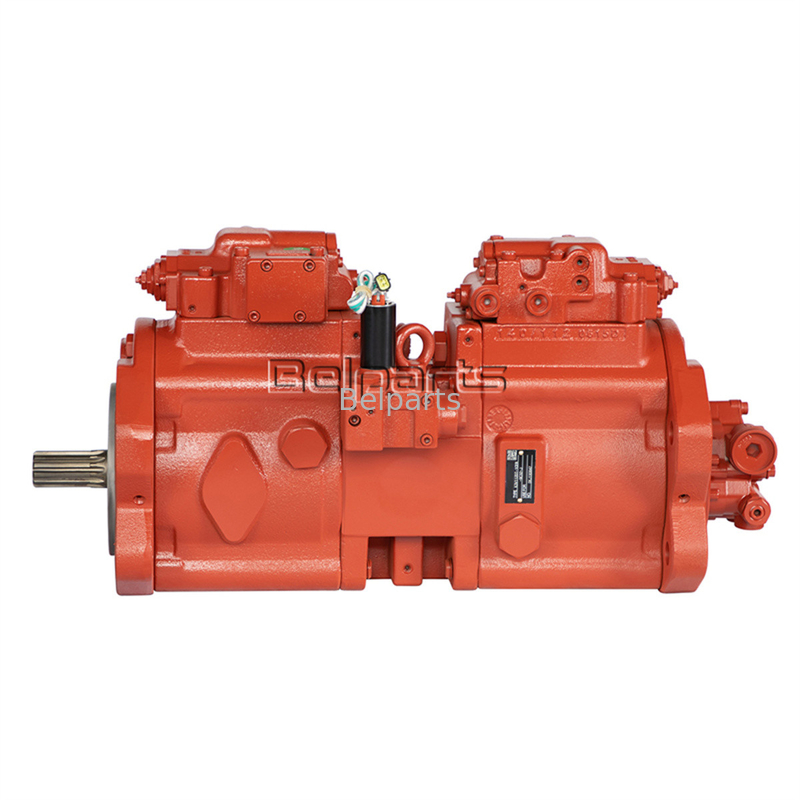

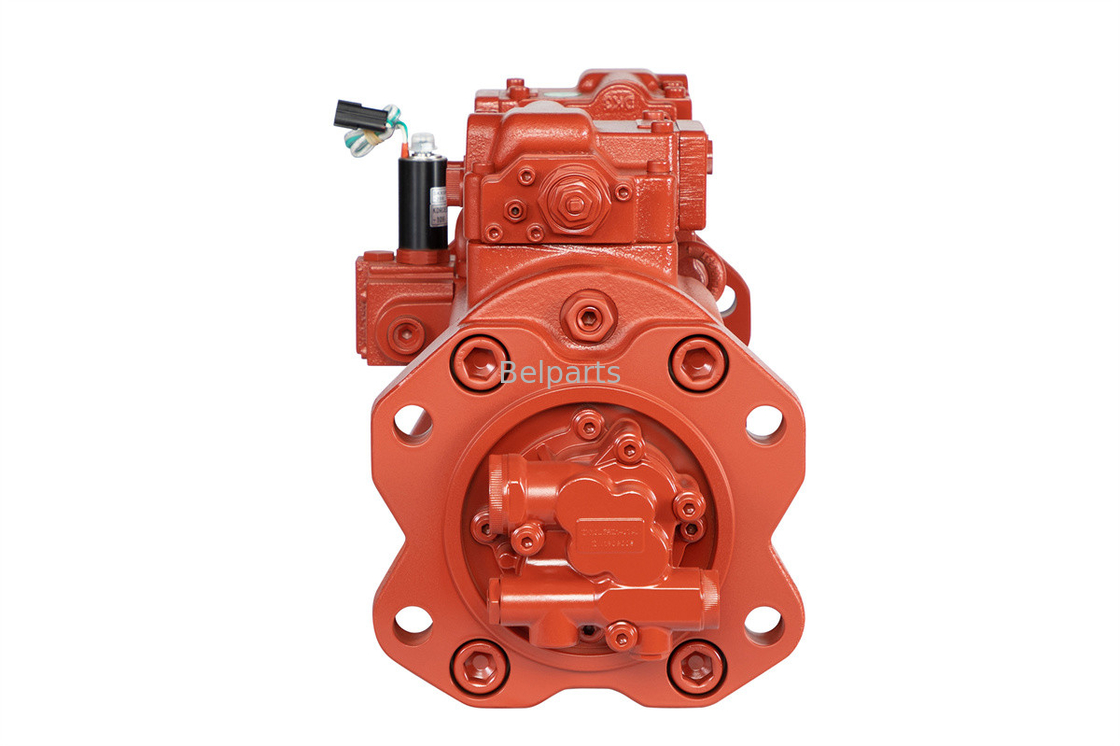

R210LC-7A R220LC-7H Belparts excavator pompa utama R210LC-7 pompa hidrolik 31N6-10010 31N6-10051 31N6-10080 untuk Hyundai
Tempat Asal:Buatan China
Nama merek:Belparts
Nomor Model:R210LC-7 R210LC-7A R220LC-7H
Jumlah Pesanan Minimum:1pcs
Harga:Negotiated price
Ketentuan Pembayaran:T/T, jaminan perdagangan , PayPal
Kemampuan Pasokan:1000 PCS
Rincian produk
Menyoroti:
Pompa hidraulik Belparts
,R220LC-7H Pompa Hidraulik
,R210LC-7A pompa hidrolik
Model:
R210LC-7 R210LC-7A R220LC-7H
Part Number:
31N6-10010 31N6-10050 31N6-10051 31N6-10080 31N6-10020 31N6-10030
Warranty:
1 Tahun
Texture:
Baja
Part Name:
Pompa hidrolik
Deskripsi Produk
R210LC-7A R220LC-7H Belparts excavator pompa utama R210LC-7 pompa hidrolik 31N6-10010 31N6-10051 31N6-10080 untuk Hyundai
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:R210LC-7 R210LC-7A R220LC-7H
Nomor bagian:31N6-10010 31N6-10050 31N6-10051 31N6-10080 31N6-10020 31N6-10030
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | R210LC-7 R210LC-7A R220LC-7H |
| Nomor bagian | 31N6-10010 31N6-10050 31N6-10051 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hyundai atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N6-10020 | Asy Pompa Utama SEE 4010 |
1 | |
| N*-1 | XKAH-00612 | Unit Pompa Utama | 1 | |
| 111 | XKAH-00562 | SHAFT-DRIVING ((F) | 1 | |
| 113 | XKAH-00563 | SHAFT-DRIVING ((R) | 1 | |
| 114 | XKAH-00565 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XKAH-00566 | Berkas-Roller | 2 | |
| 124 | XKAH-00567 | Jaring bantalan | 2 | |
| 127 | XKAH-00568 | SPACE-LAYER | 4 | |
| N141 | XKAH-00569 | CYLINDER BLOCK | 2 | |
| N151 | XKAH-00570 | Piston | 18 | |
| N152 | XKAH-00571 | Sepatu | 18 | |
| 153 | XKAH-00572 | Plat-PUSH | 2 | |
| 156 | XKAH-00573 | BUSH-SFERIKAL | 2 | |
| 157 | XKAH-00574 | SPRING-CYLINDER | 18 | |
| 158 | XKAH-00575 | SPACER | 2 | |
| 211 | XKAH-00576 | Sepatu plat | 2 | |
| N212 | XKAH-00577 | Plat-Swash | 2 | |
| N214 | XKAH-00578 | BUSH-TILTING | 2 | |
| 251 | XKAH-00579 | Dukungan | 2 | |
| 261 | XKAH-00580 | COVER-SEAL ((F) | 1 | |
| 271 | XKAH-00247 | Casing-Pump | 2 | |
| 312 | XKAH-00581 | BLOCK-VALVE | 1 | |
| N313 | XKAH-00582 | PEMBALANG PLATE-VALVE ((R) | 1 | |
| N314 | XKAH-00583 | VALVEL PLATE ((L) | 1 | |
| 401 | XKAH-00584 | BOLT-SOCKET | 8 | |
| 406 | XKAH-00210 | BOLT-SOCKET | 4 | |
| 466 | XKAH-00136 | PLUG-VP | 2 | |
| 468 | XKAH-00209 | PLUG | 3 | |
| 490 | XKAH-00208 | PLUG-PT | 18 | |
| N531 | XKAH-00585 | PING-TILT | 2 | |
| 532 | XKAH-00586 | PISTON-SERVO | 2 | |
| 534 | XKAH-00587 | STOPPER ((L) | 2 | |
| 535 | XKAH-00588 | STOPPER (S) | 2 | |
| N541 | XKAH-00203 | SEAT | 4 | |
| N543 | XKAH-00201 | Stopper 1 | 2 | |
| N544 | XKAH-00200 | Stopper 2 | 2 | |
| N545 | XKAH-00199 | Baja bola | 4 | |
| N548 | XKAH-00198 | PIN-feedback | 2 | |
| K702 | XKAH-00589 | O-RING | 2 | |
| K710 | XKAH-00590 | O-RING | 1 | |
| K717 | XKAH-00591 | O-RING | 4 | |
| K724 | XKAH-00194 | O-RING | 16 | |
| K725 | XKAH-00052 | O-RING | 4 | |
| K728 | XKAH-00193 | O-RING | 3 | |
| K732 | XKAH-00592 | O-RING | 2 | |
| 774 | XKAH-00593 | SEAL-OIL | 1 | |
| 789 | XKAH-00594 | RING-BACK UP | 2 | |
| 792 | XKAH-00595 | RING-BACK UP | 2 | |
| 806 | XKAH-00596 | NUT-HEX | 2 | |
| 808 | XKAH-00188 | NUT-HEX | 2 | |
| 824 | XKAH-00026 | RING-SNAP | 2 | |
| 885 | XKAH-00597 | PLAT PIN-VALVE | 2 | |
| 886 | XKAH-00185 | Pin-SPRING | 4 | |
| 901 | XKAH-00598 | BOLT-EYE | 2 | |
| 953 | XKAH-00599 | SETUAN SELINGKAP | 2 | |
| 954 | XKAH-00600 | Pengaturan sekrup | 2 | |
| 981 | XKAH-00601 | NAMA PLATE | 1 | |
| 983 | XKAH-00116 | PELUANG-PELUANG | 2 | |
| N011 | XKAH-00559 | PISTON ASSY Lihat ILLUST |
2 | |
| 013 | XKAH-00558 | CYLINDER ASSY ((RH)) Lihat ILLUST |
1 | |
| 014 | XKAH-00557 | CYLINDER ASSY ((LH) Lihat ILLUST |
1 | |
| 030 | XKAH-00556 | SWAASH PLATE ASSY Lihat ILLUST |
2 | |
| 041 | XKAH-00237 | Periksa klep ASSY 1 Lihat ILLUST |
2 | |
| 042 | XKAH-00555 | VALVE CEK ASSY-2 Lihat ILLUST |
2 | |
| 530 | XKAH-00554 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4040 |
1 | |
| N | @ | Pipa injeksi bahan bakar & NOZZLE | AR | |
| K | XKAH-00613 | KIT SEAL BODY PUMP Lihat ILLUST |
1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
h | D | L1 | L | Berat badan (kg) |
||||
Berkualitas |
Maksimal |
Optimum kecepatan |
Kecepatan rentang |
Perbaiki |
Oval |
Inlet |
Outlet |
||||||
| CBQ-G520-*F** | 20 | 25 | 28 | 1500-2500 | 800-3000 | 92 | 23 | 15 | 25 | 20 | 62.5 | 129 | 5.7 |
| CBQ-G525-*F** | 25 | 64.5 | 133 | 6.0 | |||||||||
| CBQ-G532-*F** | 32 | 93 | 30 | 67 | 138 | 6.3 | |||||||
| CBQ-G540-*F** | 40 | 69.5 | 143 | 6.8 | |||||||||
| CBQ-G550-*F** | 50 | 00 20 |
25 | 25 | 73 | 150 | 7.3 | ||||||
| CBQ-G563-*F* | 63 | 77.5 | 159 | 8.0 | |||||||||
