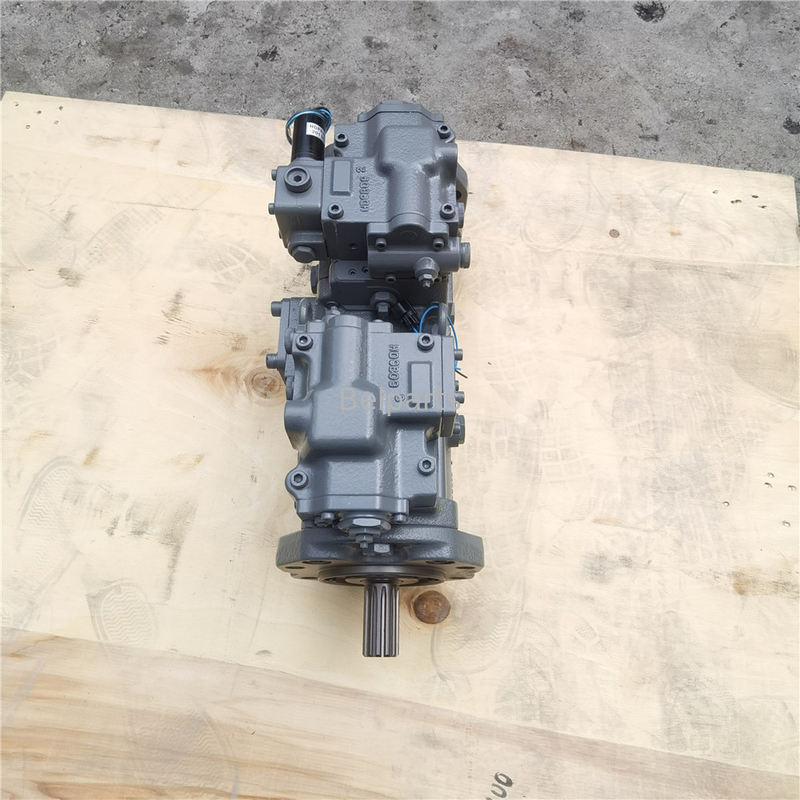

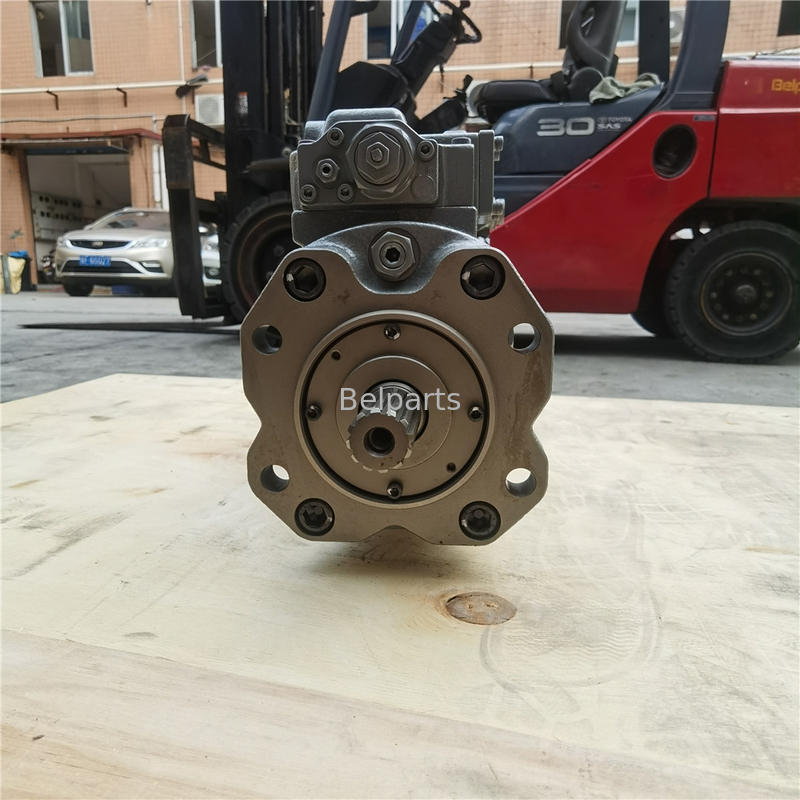

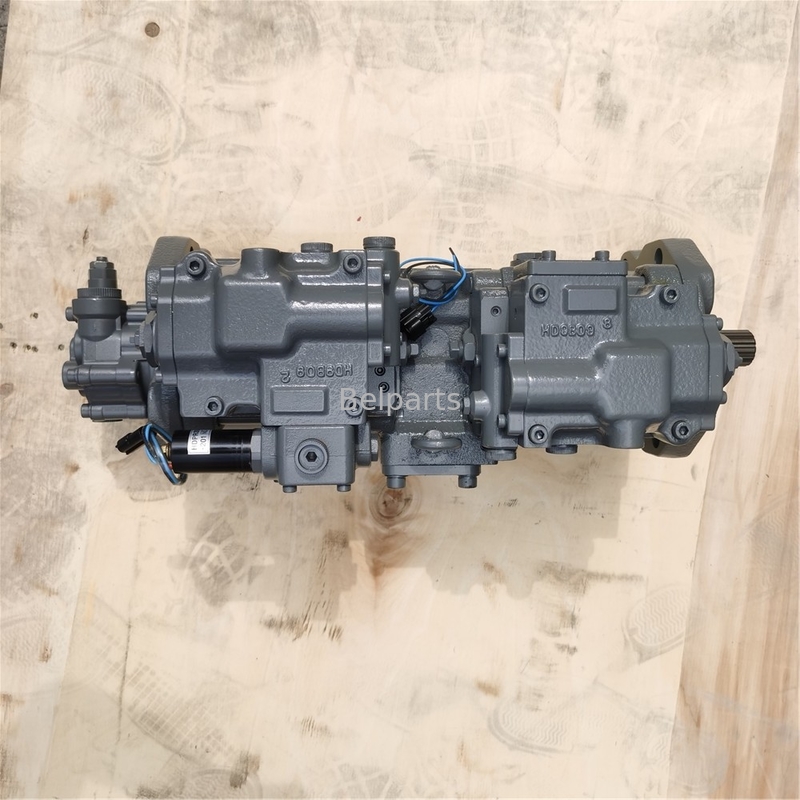

Belparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 Untuk Hyundai
Tempat Asal:Buatan China
Nama merek:Belparts
Nomor Model:R160LC-7 R180LC-7
Jumlah Pesanan Minimum:1pcs
Harga:Negotiated price
Ketentuan Pembayaran:T/T, jaminan perdagangan , PayPal
Kemampuan Pasokan:1000 PCS
Rincian produk
Menyoroti:
31N5-10010 pompa utama excavator
,31N5-10030 Pompa Utama Excavator
,R160LC-7 Pompa Utama Excavator
Model:
R160LC-7 R180LC-7
Part Number:
31N5-10010 31N5-10011
Warranty:
1 Tahun
Texture:
Baja
Part Name:
Pompa hidrolik
Deskripsi Produk
Belparts excavator pompa utama R160LC-7 R180LC-7 pompa hidrolik 31N5-10010 31N5-10011 31N5-10030 untuk Hyundai
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:R160LC-3 R160LC-9 R180LC-9
Nomor bagian:31N5-10010 31N5-10011 31N5-10030
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | R160LC-3 R160LC-9 R180LC-9 |
| Nomor bagian | 31N5-10010 31N5-10011 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N5-10010 | Pompa Utama | 1 | |
| * | 31N5-10011 | Pompa Utama | 1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT ((R) - DRIVE | 1 | |
| 114 | XJBN-00430 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00805 | Jaring bantalan | 2 | |
| 127 | XJBN-00806 | SPACE-LAYER | 4 | |
| S141 | XJBN-00807 | Blok-silinder | 2 | |
| S151 | XJBN-00425 | Piston | 18 | |
| S152 | XJBN-00424 | Sepatu | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| S212 | XJBN-00419 | Plat-Swash | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-00415 | Casing-Pump | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00413 | PLATE ((R) -VALVE | 1 | |
| S314 | XJBN-00412 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00410 | PELUANG | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00815 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| S548 | XJBN-00360 | PIN-feed kembali | 2 | |
| K702 | XJBN-00888 | O-RING | 2 | |
| K710 | XJBN-00402 | O-RING | 2 | |
| K717 | XJBN-00401 | O-RING | 2 | |
| K719 | XJBN-00400 | O-RING | 2 | |
| K724 | XJBN-00361 | O-RING | 18 | |
| K725 | XJBN-00362 | O-RING | 2 | |
| K728 | XJBN-00097 | O-RING | 4 | |
| K732 | XJBN-00820 | O-RING | 2 | |
| K774 | XJBN-00098 | SEAL-OIL | 1 | |
| K789 | XJBN-00398 | RING-BACK UP | 2 | |
| K792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, belakang |
1 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, depan |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| S | XJBN-00437 | Piston Sub ASSY Lihat ILLUST |
1 | |
| S | XJBN-00798 | Silinder Sub ASSY-RH Lihat ILLUST |
1 | |
| S | XJBN-00799 | CYLINDER SUB ASSY-LH Lihat ILLUST |
1 | |
| S | XJBN-00800 | SWASH PLATE SUB ASSY Lihat ILLUST |
1 | |
| S | XJBN-00801 | TILTING PIN SUB ASSY Lihat ILLUST |
1 | |
| K | XJBN-01106 | SEAL KIT-PUMP UNIT Lihat ILLUST |
1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
A | Outlet | d | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Ptimum kecepatan |
Optimum kecepatan |
||||||||
| d | D | ||||||||||
| CBNZQ-F520-BL** | 20 | 20 | 25 | 1500-2500 | 800-3000 | 92 | 48 | 35 | M22×1.5 | 134 | 5.1 |
| CBNZQ-F525-BL** | 25 | 139 | 5.3 | ||||||||
| CBNZQ-F532-BL** | 32 | 93 | 5.6 | ||||||||
| CBNZQ-F540-BL** | 40 | 51 | 44 | M27 × 2 | 144 | 5.9 | |||||
| CBNZQ-F550-BL** | 50 | 151 | 6.3 | ||||||||
| CBNZQ-F563-BL** | 63 | 160 | 6.8 | ||||||||
