Penerapan	Excavator Crawler
Nama bagian	Pompa utama hidraulik
Model	R160LC-3 R160LC-9 R180LC-9
Nomor bagian	31Q5-10010 31EG-10010 K3V63DT-1R0R
Jaminan	3-12 bulan
Istilah Pembayaran	T/T, Jaminan Perdagangan, Paypal dan lain-lain.
Merek	Hitachi atau sesuai kebutuhan

#	Bagian No.	Nama Bagian	Qty.	Permintaan harga
*	31Q5-10010	Pompa Utama	1
*-1	@	Pipa injeksi bahan bakar & NOZZLE	1
111	XJBN-00802	SHAFT ((F) - DRIVE	1
113	XJBN-00803	SHAFT ((R) - DRIVE	1
116	XJBN-00804	Gear-1ST	1
123	XJBN-00429	Berkas-Roller	2
124	XJBN-00805	Jaring bantalan	2
127	XJBN-00806	SPACE-LAYER	4
S141	XJBN-00807	Blok-silinder	2
S151	XJBN-00425	Piston	18
S152	XJBN-01278	Sepatu	18
153	XJBN-00808	PLATE-SET	2
156	XJBN-00422	BUSHING-SFERIK	2
157	XJBN-00421	SPRING-CYLINDER	18
211	XJBN-00420	Sepatu plat	2
S212	XJBN-00419	Plat-Swash	2
S214	XJBN-00418	BUSHING-TILTING	2
251	XJBN-00417	Dukungan	2
261	XJBN-00809	COVER-FR	1
271	XJBN-01046	Casing-Pump	2
312	XJBN-00812	BLOCK-VALVE	1
S313	XJBN-01045	PLATE ((R) -VALVE	1
S314	XJBN-01044	PLATE ((L) -VALVE	1
S326	XJBN-00937	PELUAR	1
401	XJBN-00411	PELUANG	8
406	XJBN-00813	Screw-HEX S H C	8
414	XJBN-00160	SUKIT-SUKIT	4
466	XJBN-00030	PLUG	2
467	XJBN-00487	PLUG	4
468	XJBN-00814	PLUG	2
490	XJBN-00032	PLUG	15
S531	XJBN-00815	PING-TILT	2
532	XJBN-00407	PISTON-SERVO	2
534	XJBN-00816	STOPPER ((L)	2
535	XJBN-00405	STOPPER (S)	2
S548	XJBN-00360	PIN-feed kembali	2
K702	XJBN-00817	O-RING	2
K710	XJBN-00387	O-RING	1
K711	XJBN-00095	O-RING	1
K717	XJBN-00818	O-RING	2
K719	XJBN-00819	O-RING	2
K724	XJBN-00044	O-RING	18
K725	XJBN-00045	O-RING	2
K727	XJBN-00233	O-RING	2
K728	XJBN-00097	O-RING	4
K732	XJBN-00820	O-RING	2
K774	XJBN-01029	SEAL-OIL	1
K789	XJBN-00476	RING-BACK UP	2
K792	XJBN-00454	RING BACK-UP	2
808	XJBN-00101	NUT-HEX	4
824	XJBN-00821	RING-SNAP	2
885	XJBN-00394	PLAT PIN-VALVE	2
886	XJBN-00054	Pin-SPRING	4
901	XJBN-00104	BOLT-EYE	2
953	XJBN-00105	SETUAN SELINGKAP	2
954	XJBN-00392	SETUAN SELINGKAP	2
981	XJBN-00156	NAME PLATE (Plat Nama)	1
983	XJBN-00455	PIN	2
*-2	@	Pipa injeksi bahan bakar & NOZZLE SEE 4020	1
*-3	@	Pipa injeksi bahan bakar & NOZZLE SEE 4030	1
011	XJBN-01572	Piston Sub ASSY Lihat ILLUST	2
013	XJBN-01048	Silinder Sub ASSY-RH Lihat ILLUST	1
014	XJBN-01047	CYLINDER SUB ASSY-LH Lihat ILLUST	1
030	XJBN-00800	SWASH PLATE SUB ASSY Lihat ILLUST	2
530	XJBN-00801	TILTING PIN SUB ASSY Lihat ILLUST	2

Model	Nominal pergeseran ((ml/r) Pompa depan Pompa belakang	Tekanan ((MPa)		Kecepatan ((r/menit)			Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang	L1	L2	L	Berat badan (kg)
		Berkualitas	Maksimal	Min	Berkualitas	Maksimal
CBHY-G36/F3.5-ATφ*	36/3.5	25/20	28/25	800	2500	3000	92/85	123	123	205	6.8
CBHY-G36/F4.5-ATφ*	36/4.5						92 - 90			208	7.0
CBHY-G32/F3.5-ATφ*	32/3.5						92/85	118	118	200	6.5
CBHY-G32/F4.5-ATφ*	32/4.5						92 - 90			203	6.7
CBHY-G30/F3.5-ATφ*	30/3.5						92/85	116	116	198	6.1
CBHY-G30/F4.5-ATφ*	30/4.5						92 - 90			201	6.4
CBHY-G28/F3.5-ATφ*	28/3.5						92/85	114	114	196	6.1
CBHY-G28/F4.5-ATφ*	28/4.5						92 - 90			199	6.2
CBHY-G25/F3.5-ATφ*	25/3.5						92/85	110	110	192	5.8
CBHY-G25/F4.5-ATφ*	25/4.5						92 - 90			195	5.9

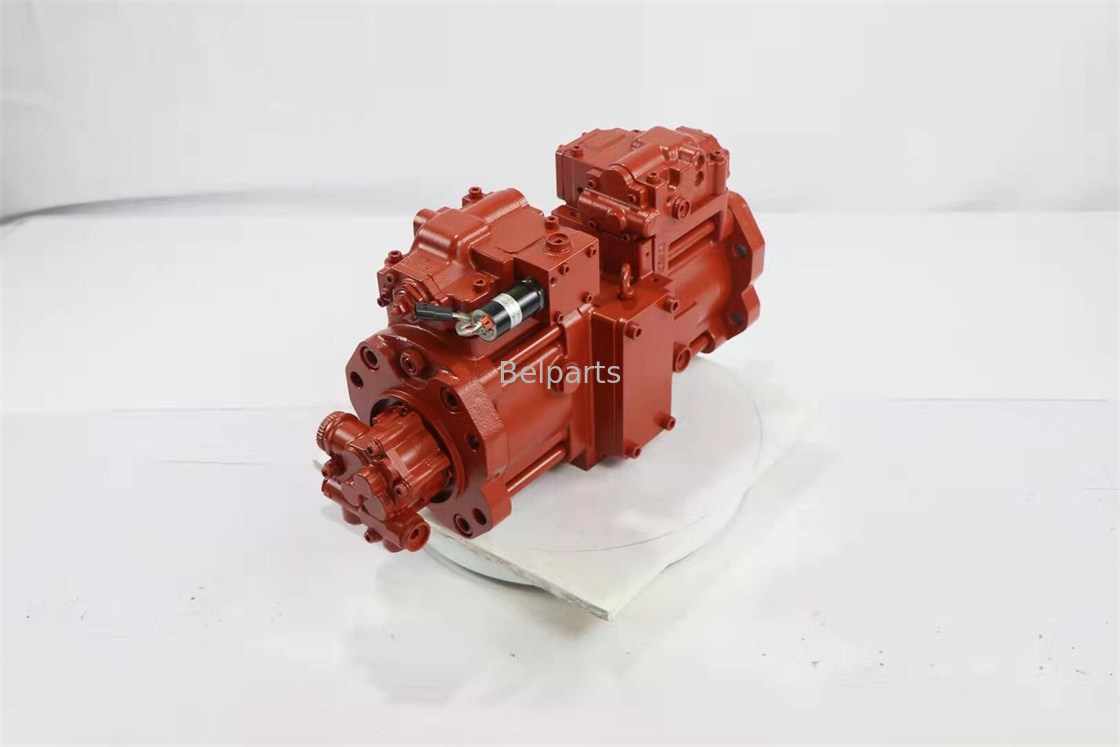

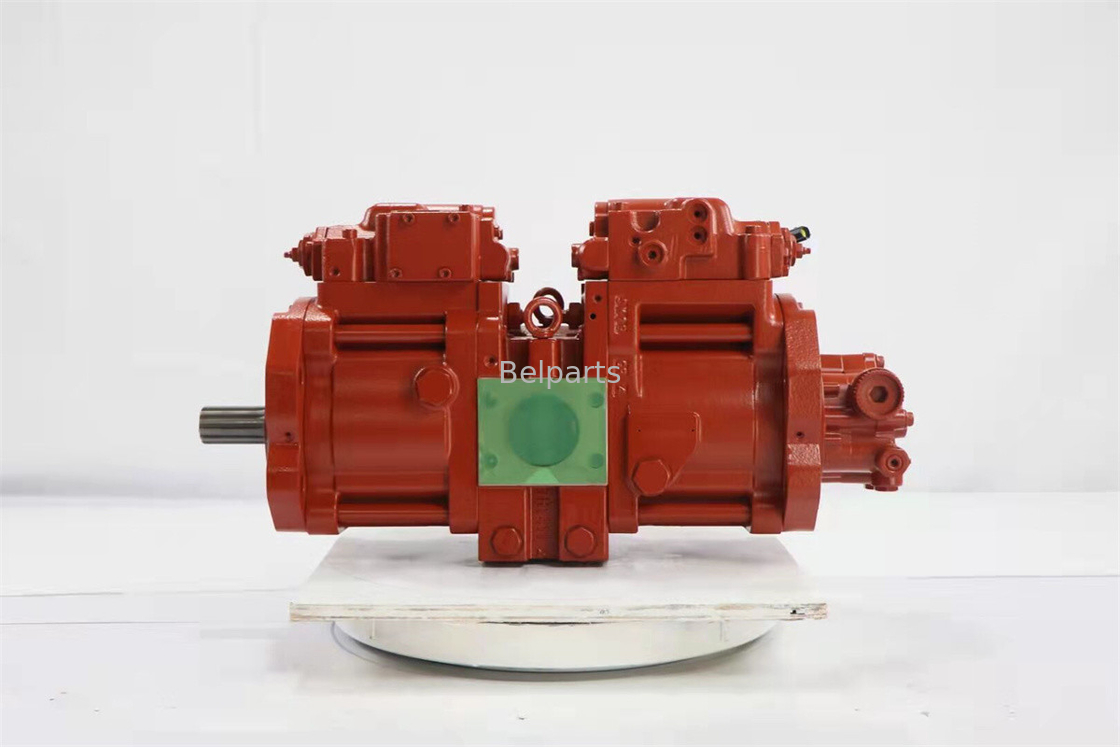

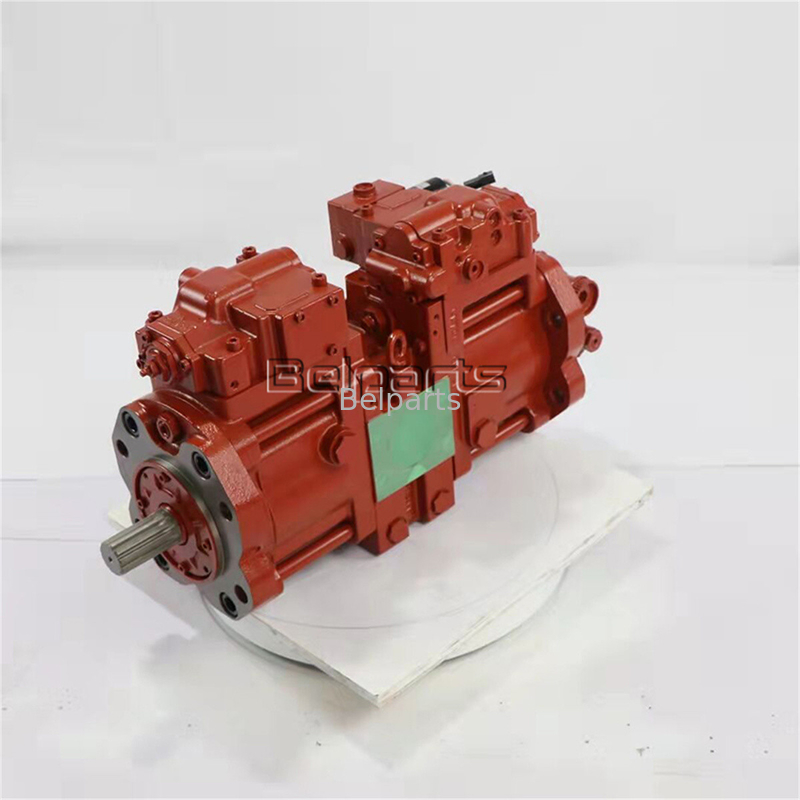

Belparts excavator pompa utama R160LC-3 R160LC-9 R180LC-9 pompa hidrolik 31Q5-10010 31EG-10010 K3V63DT-1R0R untuk Hyundai

R160LC-3 pompa hidrolik

R180LC-9 pompa hidrolik

31EG-10010 pompa hidrolik
