Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
R140LC-7 R140LC-7A R140LC-9
Video
Video

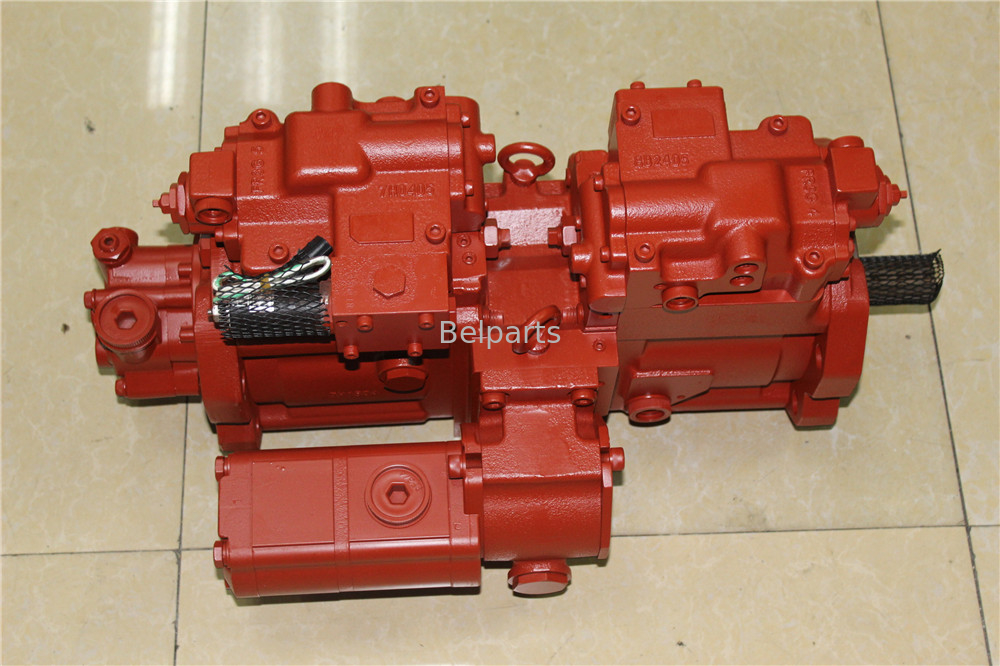

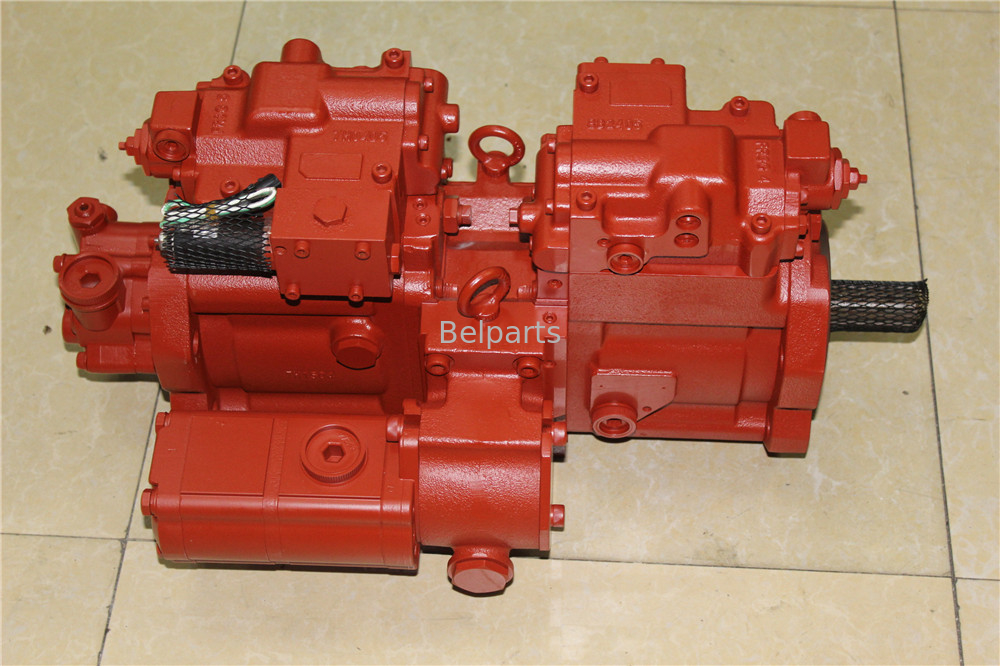

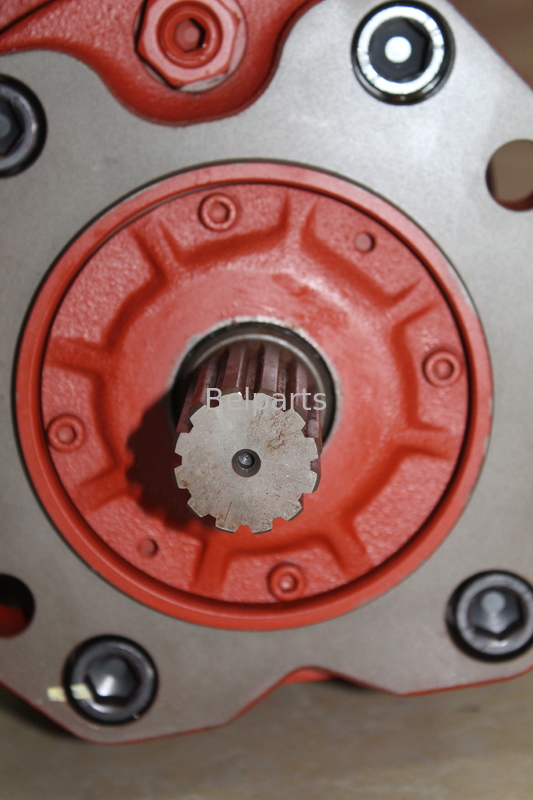

Belparts excavator pompa utama R140LC-7 R140LC-7A R140LC-9 pompa hidrolik 31Q4-10010 31N3-10010 31N3-10011
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:R140LC-7 R140LC-7A R140LC-9
Nomor bagian:31Q4-10010 31N3-10010 31N3-10011
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | R140LC-7 R140LC-7A |
| Nomor bagian | 31Q4-10010 31N3-10010 31N3-10011 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N3-10010 | Pompa Utama | 1 | |
| * | 31N3-10011 | Pompa Utama | 1 | |
| 111 | XJBN-00432 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00431 | SHAFT ((R) - DRIVE | 1 | |
| 114 | XJBN-00430 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00428 | Jaring bantalan | 2 | |
| 127 | XJBN-00427 | SPACE-LAYER | 4 | |
| N141 | XJBN-00426 | Blok-silinder | 2 | |
| N151 | XJBN-00425 | Piston | 18 | |
| N152 | XJBN-00424 | Sepatu | 18 | |
| 153 | XJBN-00423 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| N212 | XJBN-00419 | Plat-Swash | 2 | |
| N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00416 | COVER ((F) - SEAL | 1 | |
| 271 | XJBN-00415 | Casing-Pump | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| N313 | XJBN-00413 | PLATE ((R) -VALVE | 1 | |
| N314 | XJBN-00412 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00410 | PELUANG | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| N531 | XJBN-00408 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00406 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| N548 | XJBN-00404 | PIN-feed kembali | 2 | |
| 702 | XJBN-00232 | O-RING | 2 | |
| 702 | XJBN-00817 | O-RING | 2 | |
| 710 | XJBN-00387 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00044 | O-RING | 18 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00283 | O-RING | 2 | |
| 732 | XJBN-00820 | O-RING | 2 | |
| 774 | XJBN-00399 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00391 | NAME PLATE (Plat Nama) | 1 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| 011 | XJBN-00437 | Piston Sub ASSY | 18 | |
| 013 | XJBN-00436 | Silinder ASSY-RH | 1 | |
| 014 | XJBN-00435 | Silinder ASSY-LH | 1 | |
| 030 | XJBN-00434 | SWAASH PLATE ASSY | 2 | |
| 530 | XJBN-00433 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| N | @ | Pipa injeksi bahan bakar & NOZZLE | AR |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L | Intet | Outlet | Berat badan (kg) |
|||||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
||||||||||||
| a | b | D | a | b | D | |||||||||||
| CBHZA-F23-AFφ* | 02 20 |
20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 25 | 26.2 | 52.4 | 20 | 22.2 | 47.6 | 4.4 |
| CBHZA-F25-AFφ* | 25 | 61.5 | 119 | 4.7 | ||||||||||||
| CBHZA-F28.2-AFφ* | 28.2 | 63.5 | 123 | 4.9 | ||||||||||||
| CBHZA-F30-AFφ* | 30 | 64.5 | 125 | 5.1 | ||||||||||||
| CBHZA-F32-AFφ* | 32 | 65.5 | 127 | 5.3 | ||||||||||||
| CBHZA-F36-AFφ* | 36 | 68 | 132 | 5.7 | ||||||||||||
| CBHZA-F40-AFφ* | 40 | 70.5 | 137 | 28 | 6.1 | |||||||||||
