Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
R110-7 R110-7A
Video
Video

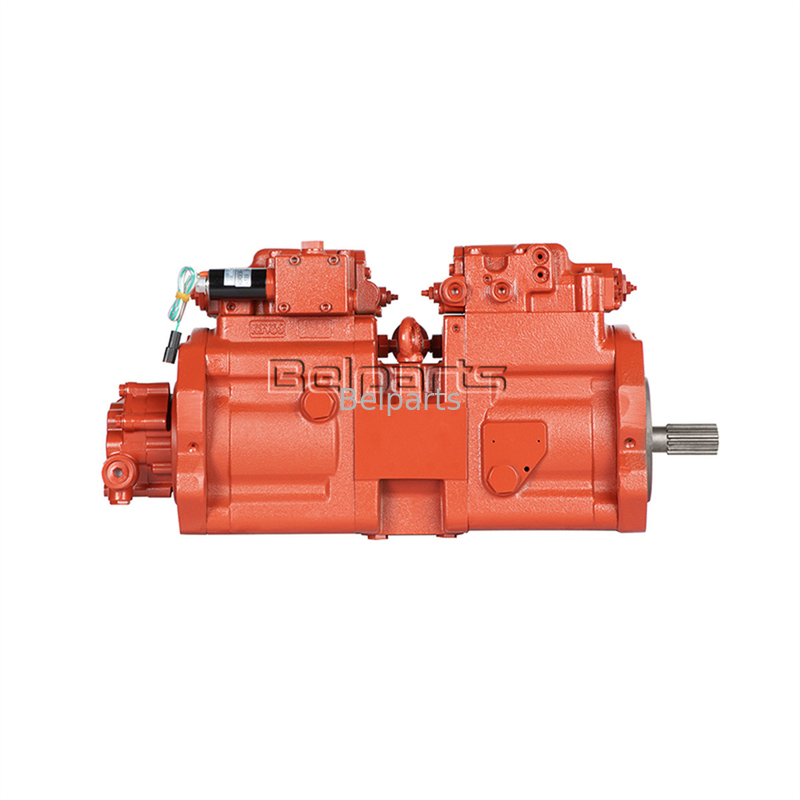

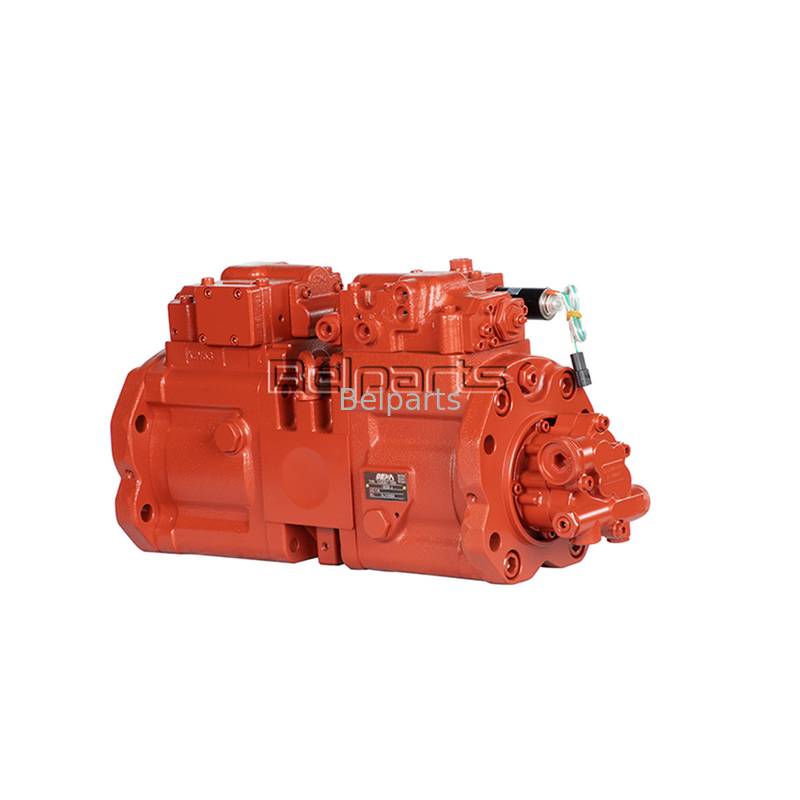

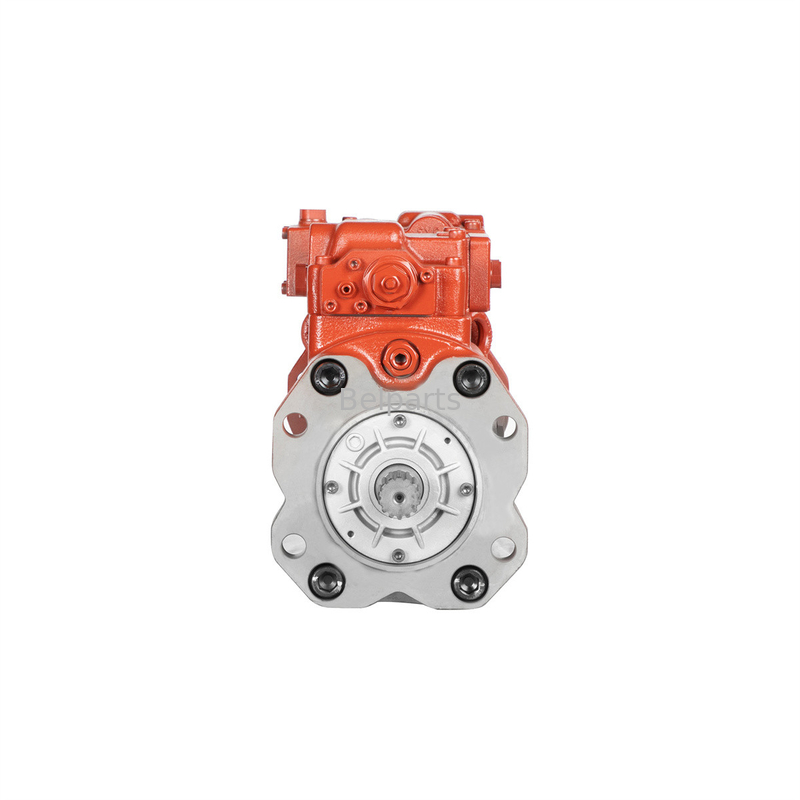

R110-7A pompa hidrolik Belparts excavator pompa utama R110-731N3-10050 31N3-10060 untuk Hyundai
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:R110-7 R110-7A
Nomor bagian:31N3-10050 31N3-10060
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | R110-7 R110-7A |
| Nomor bagian | 31N3-10050 31N3-10060 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N3-10050 | Pompa Utama | 1 | |
| *-1 | XJBN-00928 | Unit Pompa Utama | 1 | |
| 111 | XJBN-00432 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00431 | SHAFT ((R) - DRIVE | 1 | |
| 114 | XJBN-00430 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00428 | Jaring bantalan | 2 | |
| 127 | XJBN-00427 | SPACE-LAYER | 4 | |
| S141 | XJBN-00426 | Blok-silinder | 2 | |
| S151 | XJBN-00425 | Piston | 18 | |
| S152 | XJBN-00424 | Sepatu | 18 | |
| 153 | XJBN-00423 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| S212 | XJBN-00419 | Plat-Swash | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00416 | COVER ((F) - SEAL | 1 | |
| 271 | XJBN-00415 | Casing-Pump | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00413 | PLATE ((R) -VALVE | 1 | |
| S314 | XJBN-00412 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00410 | PELUANG | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00408 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00406 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| S548 | XJBN-00404 | PIN-feed kembali | 2 | |
| 702 | XJBN-00403 | O-RING | 2 | |
| 710 | XJBN-00402 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 18 | |
| 725 | XJBN-00362 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00879 | O-RING | 2 | |
| 774 | XJBN-00399 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00391 | NAME PLATE (Plat Nama) | 2 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, depan |
1 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, Belakang |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| 011 | XJBN-00437 | Piston Sub ASSY Lihat ILLUST |
1 | |
| 013 | XJBN-00436 | Silinder ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-00435 | Silinder ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00434 | SWAASH PLATE ASSY Lihat ILLUST |
1 | |
| 530 | XJBN-00433 | SELINGKAP PIN ASSY Lihat ILLUST |
1 |
