Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
EC700B EC620 EC650
Video
Video

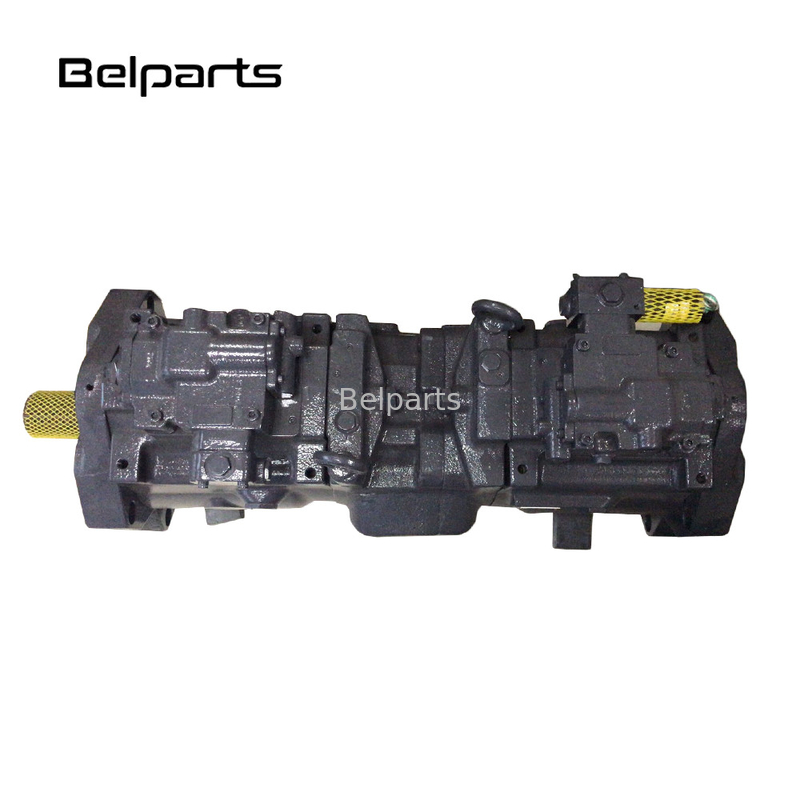

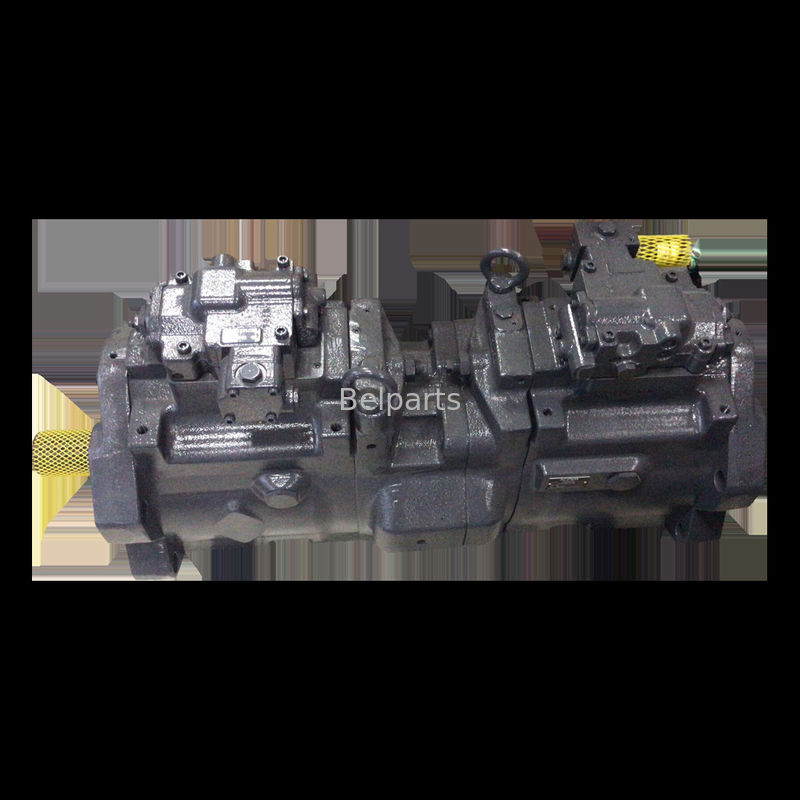

EC650 pompa hidraulik Belparts pompa utama excavator EC700B EC620 VOE 14522561 14250327 14250328 14244106 14245961
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:EC700B EC620 EC650
Nomor bagian:VOE 14522561 14250327 14250328 14244106 14245961 14212322 14213401 14214124
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | EC700B EC620 EC650 |
| Nomor bagian | VOE 14522561 14250327 14250328 14244106 14245961 14212322 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 8279230 | ||||
| VOE 14522561 | Pompa | 1 | ||
| 1 | VOE 14535198 | Piston | 1 | |
| 2 | VOE 14535158 | Piston | 18 | |
| 3 | VOE 14531598 | Kasus lebih | 18 | |
| 4 | VOE 14531599 | Penjaga | 1 | |
| 5 | VOE 14535157 | Blok Silinder | 1 | |
| 6 | VOE 14535173 | Piring | 1 | |
| 7 | VOE 14535200 | Silinder | 1 | |
| 8 | VOE 14535157 | Blok Silinder | 1 | |
| 9 | VOE 14535174 | Piring | 1 | |
| 10 | VOE 14535201 | Piring | 2 | |
| 11 | VOE 14535164 | Piring | 2 | |
| 12 | VOE 14535165 | Pembuangan | 2 | |
| 13 | SA 8230-32080 | Klep lebih | 1 | |
| 14 | VOE 14535150 | Selang | 1 | |
| 15 | VOE 14535151 | Selang | 1 | |
| 16 | VOE 14535152 | Kopling | 1 | |
| 17 | VOE 14535153 | Bantalan | 2 | |
| 18 | VOE 14535154 | Bantalan | 2 | |
| 19 | VOE 14535155 | Spacer | 4 | |
| 20 | VOE 14535156 | Penguat | 1 | |
| 21 | VOE 14535160 | Piring | 3 | |
| 22 | VOE 14535161 | Pembuangan | 2 | |
| 23 | VOE 14535162 | Musim semi | 18 | |
| 24 | VOE 14535169 | Tutup | 1 | |
| 25 | VOE 14535163 | Piring | 2 | |
| 26 | VOE 14535166 | Dukungan | 2 | |
| 27 | VOE 14535168 | Tutup | 1 | |
| 28 | VOE 14535170 | Casing | 2 | |
| 29 | VOE 14535171 | Tutup | 1 | |
| 30 | VOE 14535172 | Tutup | 1 | |
| 31 | VOE 14535175 | Pergilah. | 4 | |
| 32 | VOE 14535176 | Pergilah. | 4 | |
| 33 | SA 9016-10804 | Bolt lebih banyak | 8 | |
| 34 | SA 9415-11021 | Masukkan lagi | 4 | |
| 35 | SA 9415-11051 | Masukkan lagi | 4 | |
| 36 | SA 7242-11040 | Masukkan lagi | 31 | |
| 37 | VOE 14512382 | Plug | 5 | |
| 38 | VOE 14535202 | Pin | 2 | |
| 39 | VOE 14535180 | Pin | 2 | |
| 40 | VOE 14535184 | Pin | 2 | |
| 41 | VOE 14535181 | Piston | 2 | |
| 42 | VOE 14535182 | Plug | 2 | |
| 43 | VOE 14535183 | Plug | 2 | |
| 44 | VOE 14535185 | O-ring | 2 | |
| 45 | VOE 14535186 | O-ring | 1 | |
| 46 | VOE 14535187 | O-ring | 2 | |
| 47 | VOE 14535188 | O-ring | 2 | |
| 48 | VOE 14535189 | O-ring | 1 | |
| 49 | VOE 14534030 | O-ring lebih | 15 | |
| 50 | VOE 14534029 | O-ring lebih | 10 | |
| 51 | VOE 14535387 | O-ring lebih | 4 | |
| 52 | VOE 14534049 | O-ring lebih | 2 | |
| 53 | VOE 14535190 | Segel | 1 | |
| 54 | VOE 14535191 | Cincin | 2 | |
| 55 | VOE 14535192 | Cincin | 2 | |
| 56 | SA 9111-12000 | Lebih banyak kacang | 4 | |
| 57 | SA 9541-01055 | Cincin | 2 | |
| 58 | VOE 979022 | Lebih banyak kacang | 2 | |
| 59 | VOE 14535193 | Pin | 5 | |
| 60 | VOE 14535194 | Bolt | 2 | |
| 61 | VOE 14535195 | Pergilah. | 2 | |
| 62 | VOE 14535196 | Pergilah. | 2 | |
| 63 | VOE 14535167 | Mesin cuci | 8 | |
| 64 | VOE 14535178 | Pergilah. | 4 | |
| 65 | VOE 14535177 | Pergilah. | 4 | |
| 66 | VOE 14535197 | Pergilah. | 8 | |
| 67 | VOE 14535179 | Piring | 4 | |
| 100 | VOE 14535209 | Segel | 1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L | Intet | Outlet | Berat badan (kg) |
|||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
a | b | a | b | ||||||
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | ) J2 |
55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 3.2 |
| CBF-F412.5-AL** | 12.5 | 56.3 | 116.5 | 3.3 | ||||||||||
| CBF-F414-AL** | 14 | 57.3 | 118.5 | 3.4 | ||||||||||
| CBF-F416-AL** | 16 | 58.3 | 120 | M27 × 2 | M22×1.5 | 3.5 | ||||||||
| CBF-F418-AL** | 18 | 600 | 59.5 | 123 | 3.6 | |||||||||
| CBF-F420-AL** | 20 | 93 | 60.5 | 125 | 3.7 | |||||||||
| CBF-F425-AL** | 25 | 63.8 | 131.5 | M33 × 2 | M27×1.5 | 3.8 | ||||||||
| CBF-F432-AL** | 32 | 67.5 | 139 | 4.1 | ||||||||||
| CBF-E440-AL** | 40 | 72 | 148 | 4.4 | ||||||||||
| CBF-E450-AL** | 50 | 72 | 148 | 4.7 | ||||||||||
