Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
PC220-3
Video
Video

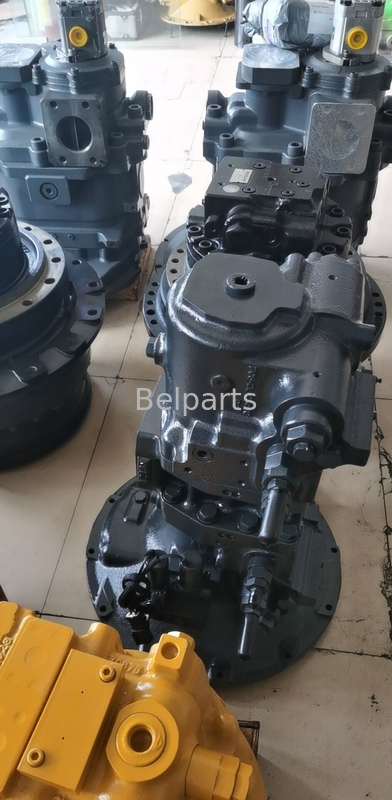

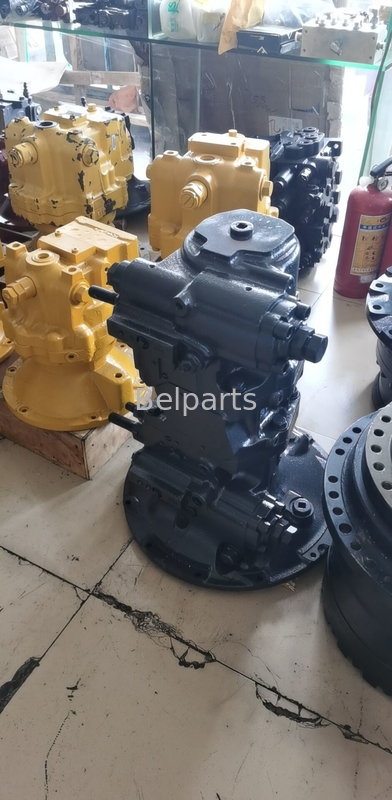

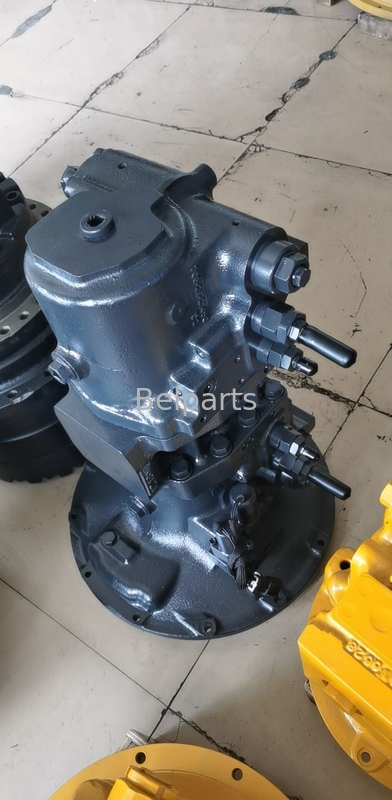

Belparts Excavator pompa utama PC220-3 pompa hidrolik 708-25-01054 708-25-10101 704-24-28201 untuk komatsu
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:PC220-3
Nomor bagian: 708-25-01054 708-25-01053 708-25-01052 708-25-01051 708-25-01050 708-25-10101 704-24-28201
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | PC220-3 |
| Nomor bagian | 708-25-01054 708-25-01053 708-25-01052 708-25-01051 708-25-01050 708-25-10101 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-25-01054 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01053 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01052 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01051 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01050 | PUMP ASS'Y | 1 | |
| 1 | 708-25-10101 | PUMP ASS'Y | 1 | |
| 1 | (708-25-11100) | Pump Sub ASS'Y | 1 | |
| 2 | (704-24-28201) | PUMP ASS'Y | 1 | |
| 3 | (708-23-14800) | VALVE ASS'Y, RELIEF | 1 | |
| 4 | (708-25-15100) | Servo Valve ASS'Y, depan | 1 | |
| 5 | (708-25-16101) | Servo Valve ASS'Y, belakang | 1 | |
| 6 | (01010-31260) | Bolt | 2 | |
| 7 | (01602-01236) | PEMANAS,SPRING (Lihat Gambar.0202) | 2 | |
| 8 | 708-25-05030 | SHIM KIT | 1 | |
| 8 | Shim | 2 | ||
| 8 | Shim | 2 | ||
| 8 | Shim | 1 | ||
| 9 | 708-25-19111 | Persekutuan | 1 | |
| 10 | 07042-20108 | Plug, ((untuk W / O. korosi resistor) | 1 | |
| 11 | 07002-02434 | O-Ring, Plug Drain? | 4 | |
| 12 | 07239-12410 | NUT (ITL) | 1 | |
| 13 | 07230-10422 | UNION, ((WITH POWER TILT) | 1 | |
| 14 | 07002-02034 | O-RING, ((BUKAN DIPERCAKAI Dimana (B) SPEC.) | 2 | |
| 15 | 07102-20404 | Selang, Inlet | 1 | |
| 16 | 07231-20422 | Lemparan | 1 | |
| 17 | 07239-12009 | NUT, (untuk kontrol tuas panjang) | 1 | |
| 18 | 708-25-19120 | Flange | 1 | |
| 19 | 720-68-15240 | Filter | 1 | |
| 20 | 07000-02021 | O-ring, pipa air | 1 | |
| 21 | 01010-30820 | Bolt, (Sandy? SPEC TERRAN Dusty.) | 2 | |
| 22 | 01602-00825 | PEMASAKAN, SPRING? (SANDY AND DUSTY SPEC.) | 2 | |
| 23 | 07044-02412 | Plug, Magnetic | 3 | |
| 24 | 706-46-53260 | Plug | 2 | |
| 25 | 07002-01423 | O-RING, CRUSHER? LAIN ATT. Untuk PPC CON | 2 | |
| 26 | 708-25-19140 | Tabung | 1 | |
| 27 | 706-46-53180 | Bolt, bersama. | 2 | |
| 28 | 07000-02012 | O-ring, antara katup dan pompa | 4 | |
| 29 | (708-25-19130) | Bolt | 8 | |
| 30 | (01602-00825) | PEMANAS,SPRING (Lihat FIG.0331 atau 0331A) | 8 | |
| 31 | (04020-00616) | PIN, lihat gambar K4010-71A0 | 4 | |
| 32 | (07000-03048) | O-ring | 2 | |
| 33 | 08036-21814 | CLIP, ((untuk penanganan SLAG) (untuk AS) | 1 | |
| 34 | 04530-01018 | Bolt, mata | 2 | |
| 35 | 07042-20108 | Plug, ((untuk W / O. korosi resistor) | 1 | |
| 36 | 01010-31016 | BOLT, ((SANDY AND DUSTY SPEC.) | 1 | |
| 37 | 01643-31032 | WASHER, ((dengan AUTO Emergency Steering) | 1 |
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Optimum kecepatan |
Jangkauan kecepatan |
||||||||
| CBSL-G25/G19-AF* | 25/19 | 25/25 | 27.5/27.5 | 1500-2500 | 800-3000 | 92/92 | 68.5 | 154.5 | 217 | 11.5 | |
| CBSL-G25/G23-AF* | 25/23 | 156.5 | 219 | 11.8 | |||||||
| CBSL-G25/G25-AF* | 25/25 | 157.5 | 220 | 12.1 | |||||||
| CBSL-G28/G28-AF* | 28/28 | 70.3 | 162.8 | 230 | 12.4 | ||||||
| CBSL-G33/G19-AF* | 33/19 | 73 | 163.5 | 226 | 12.1 | ||||||
| CBSL-G33/G23-AF* | 33/23 | 165.5 | 230 | 12.4 | |||||||
| CBSL-G38/G19-AF* | 38/19 | 20/25 | 25/27.5 | 77.8 | 173 | 235 | 12.8 | ||||
