Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
PC25R-8 PC27R-8
Video
Video

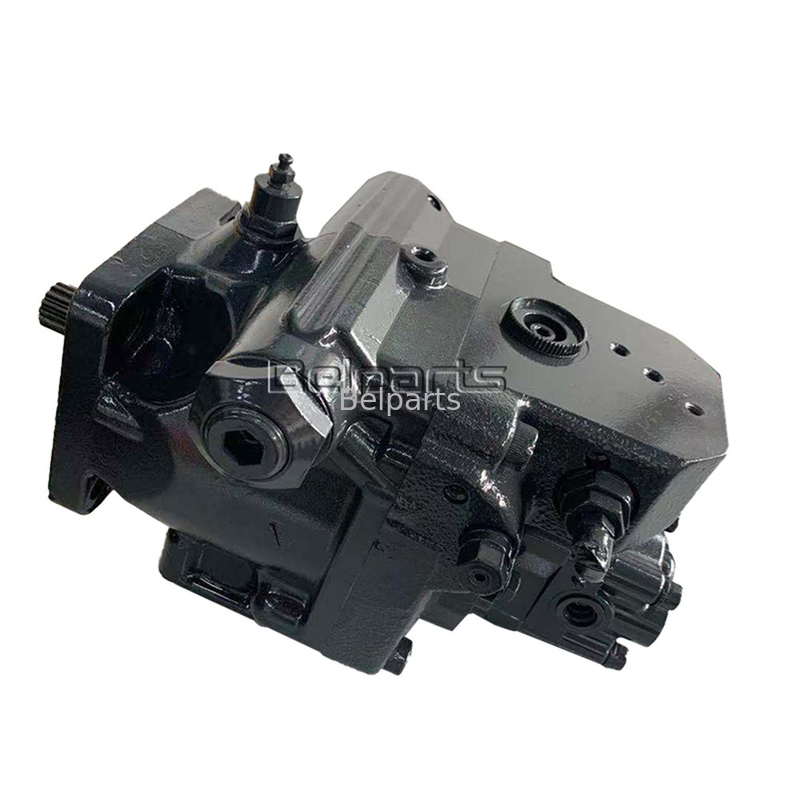

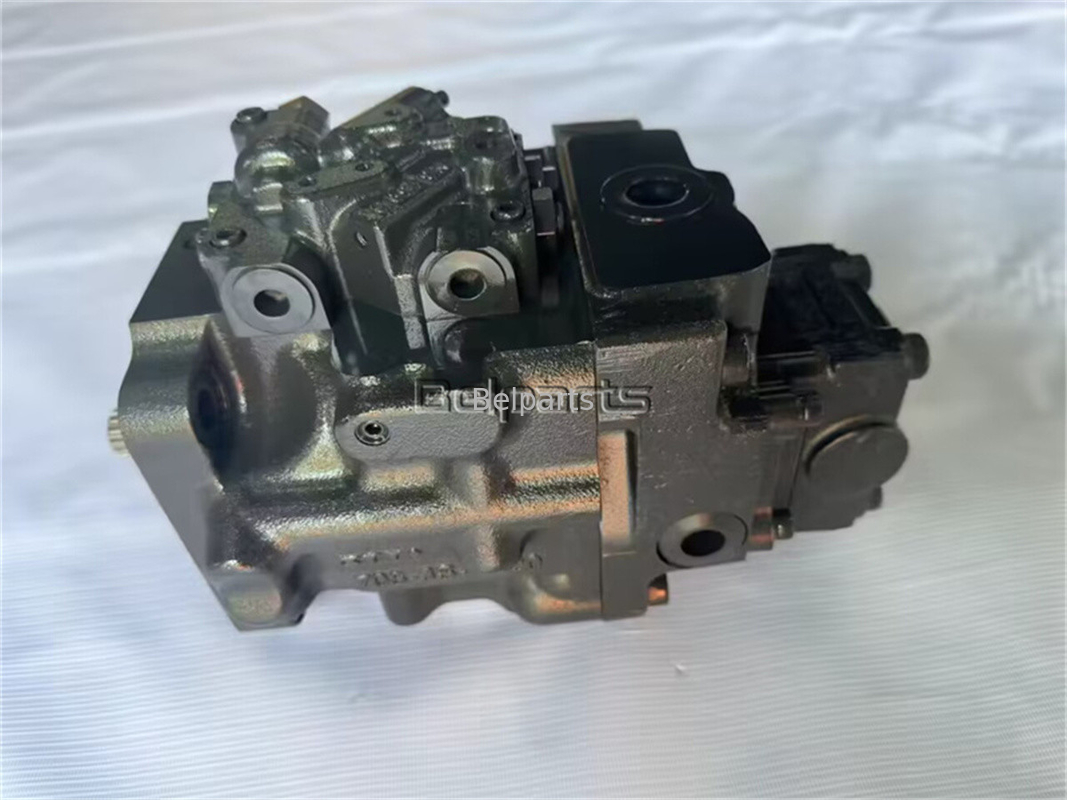

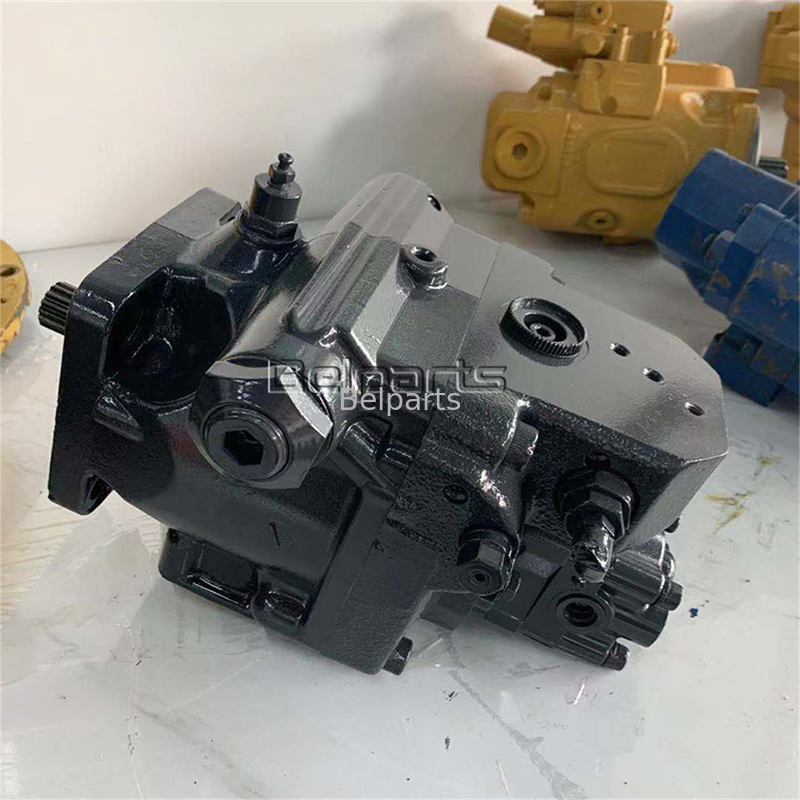

Belparts Pompa utama Excavator PC25R-8 PC27R-8 Pompa utama hidrolik 708-1S-00130 untuk komatsu
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:PC25R-8 PC27R-8
Nomor Bagian:708-1S-00130
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | PC25R-8 PC27R-8 |
| Nomor bagian | 708-1S-00130 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-1S-00130 | PUMP ASS'Y | 1 | |
| Pertemuan ini terdiri dari semua bagian yang ditampilkan dalam gambar.Y1600-01A0 T0 Y1600-06A0 | ||||
| 1 | 708-1S-01111 | Pump Sub ASS'Y | 1 | |
| 1 | (*708-1S-04211) | Kasus Sub ASS'Y | 1 | |
| 1 | CASE, PUMP | 1 | ||
| 2 | Plug | 3 | ||
| 3 | CAM, ROCKER | 1 | ||
| 4 | 07040-11209 | Plug, Oil Drain | 1 | |
| 5 | 07002-11223 | O-RING, ((F4350-65A0 -16)) | 1 | |
| 6 | 01252-61245 | Bolt | 4 | |
| 7 | 04020-00616 | PIN, ((DOWEL) | 1 | |
| 8 | 07000-11009 | O-ring, ((untuk DOZER TILT DUAL) | 4 | |
| 9 | 708-7T-51210 | O-ring | 1 | |
| 10 | (*708-1S-04221) | CAP SUB ASS'Y | 1 | |
| 10 | CAP, END | 1 | ||
| 11 | Plug | 12 | ||
| 12 | 720-68-19610 | Pin | 1 | |
| 13 | (*708-1S-12121) | Selang | 1 | |
| 14 | (*708-7S-12140) | Bantalan | 1 | |
| 15 | (*708-1S-12280) | Ring, Wire | 1 | |
| 16 | (*708-1S-12270) | Pengendali | 1 | |
| 17 | (*708-1S-12260) | Bantalan | 1 | |
| 18 | (*708-7T-05020) | SPACER KIT | 1 | |
| 18 | SPACER? 1,6 mm. | 1 | ||
| 18 | 1.7mm? | 1 | ||
| 18 | SPACER? 1,8 mm. | 1 | ||
| 18 | SPACER? 1.9mm | 1 | ||
| 18 | SPACER? | 1 | ||
| 18 | SPACEER? 2,1 mm | 1 | ||
| 18 | SPACER? | 1 | ||
| 19 | 708-7T-12230 | GASKET, SEAL | 1 | |
| 20 | 708-1S-11890 | Spacer | 1 | |
| 21 | 04065-04518 | Ring, SNAP (ITL) | 1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
Motor dua arah | L1 | L | Berat badan (kg) |
|||||||
Berkualitas |
Maksimal |
Optimum buang air kecil |
Kecepatan rentang |
Inlet |
Outlet |
/ Inlet/Outlet |
|||||||||
| D | d | D | d | D | d | ||||||||||
| CMW3-F204-C1*** | 04 | 20 | 25 | 1500 2500 |
800 3000 |
90 | 8 | 35 | 10 | 40 | 10 | 35 | 40.3 | 87 | 2.7 |
| CMW3-F206-C1*对★满 | 06 | 10 | 15 | 41.5 | 89.5 | 2.8 | |||||||||
| CMW3-F208-C1* ★★ | 08 | 15 | 42.3 | 93 | 2.9 | ||||||||||
| CMW3-F211-C1** | 11 | 15 | 18 | 44 | 98 | 3 | |||||||||
| CMW3-F212.5-C1★★★ | 12.5 | 20 | 46.3 | 101 | 3.1 | ||||||||||
| CMW3-F216-C1 青青 | 16 | 49 | 107 | 3.2 | |||||||||||
| CMW3-F220-C1*** | 20 | 53.5 | 114 | 3.3 | |||||||||||
