Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
SBS80 E312D E315D
Video
Video

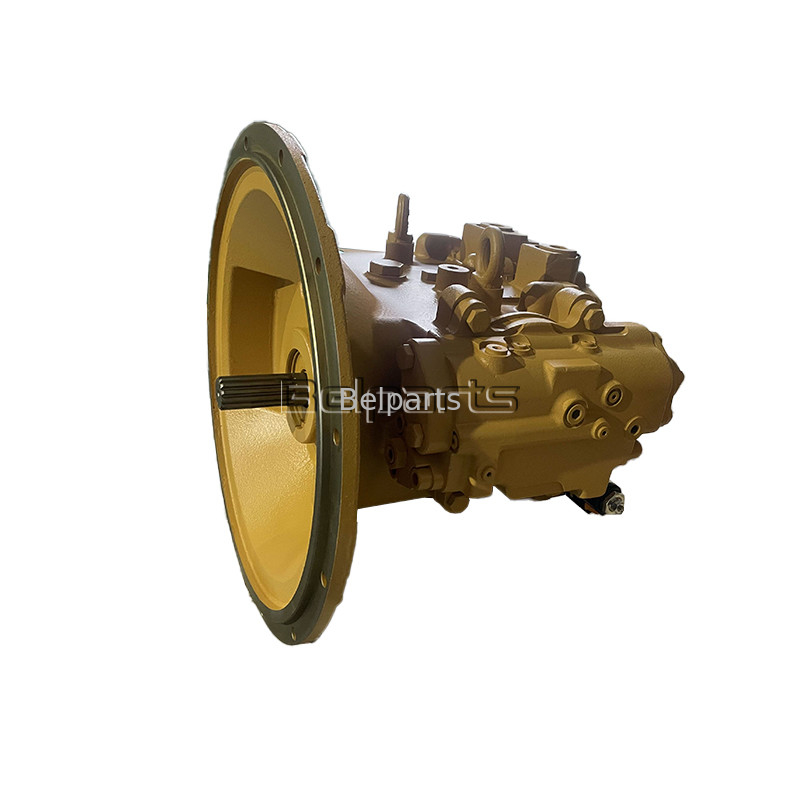

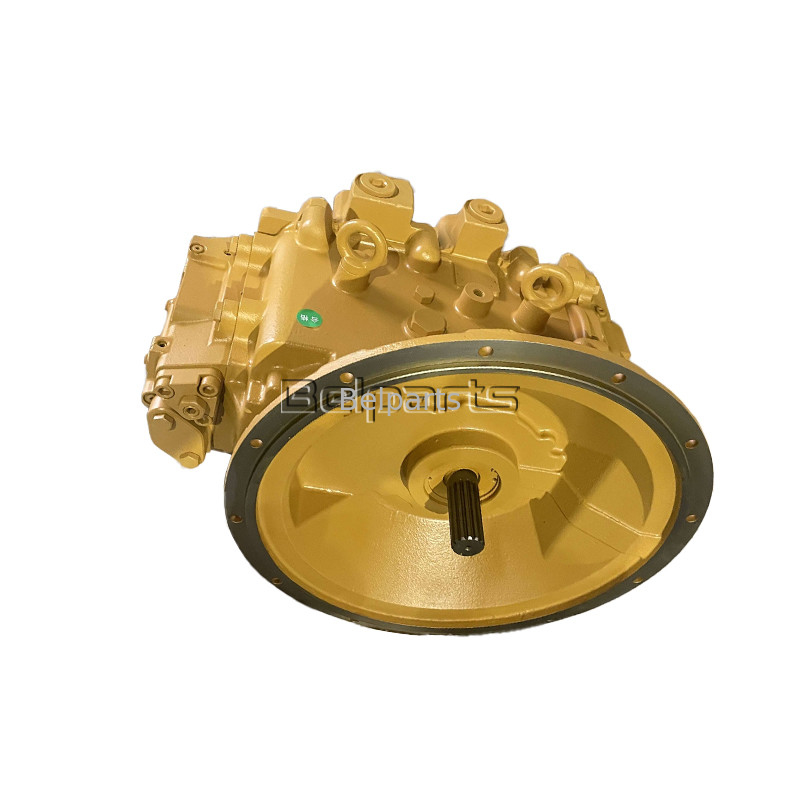

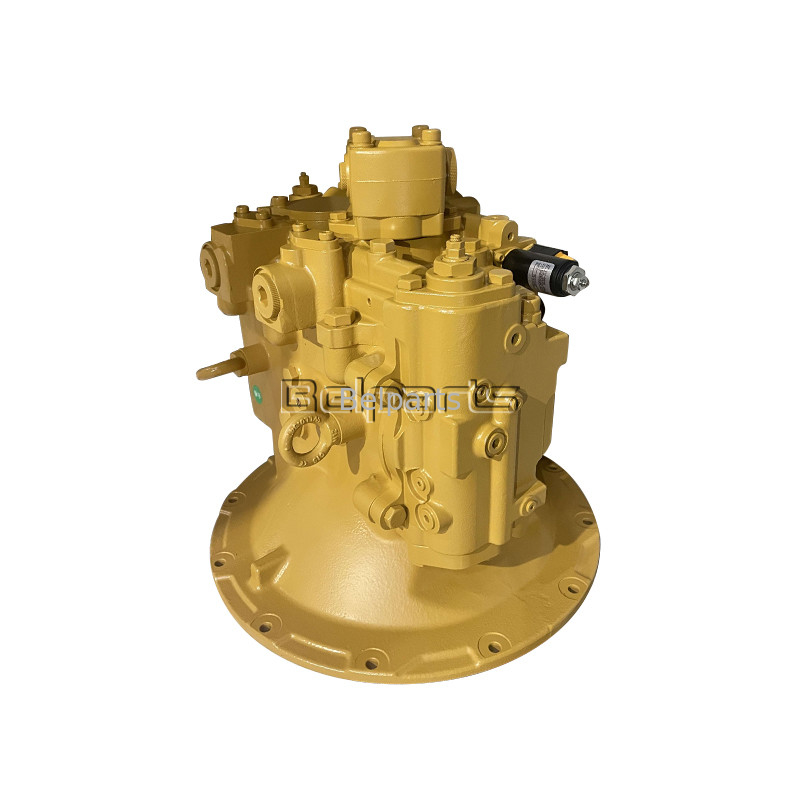

Belparts excavator pompa utama SBS80 E312D E315D pompa hidrolik 1057322 4I7359 3117405
Aplikasi:Excavator merangkak
Nama Bagian:Pompa Utama Hidraulik
Model:SBS80 E312D E315D
Nomor Bagian: 1057322 4I7359 3117405
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | SBS80 E312D E315D |
| Nomor bagian | 1057322 4I7359 3117405 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| Bagian No. | Nama Bagian | Permintaan harga | ||
| 3117405 | GROUP PUMP-Main HYDRAULIC | |||
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 1119916 | VALVE GROUP-SOLENOID -GRAPPLE SIGNAL-GROUND SAW, GRAPPLE CONTROL | 1 | |
| 2 | 1652793 | Pengendali | 2 | |
| 3 | 1652801 | Berkas-Roller | 2 | |
| 4 | 1652802 | TIPU SEAL-LIP | 1 | |
| 5 | 1652804 | Flang | 1 | |
| 6 | 1652805 | Blok | 2 | |
| 7 | 1653838 | BARREL AS (0,20MM THK) | 1 | |
| 8 | 1653839 | BARREL AS | 1 | |
| 9 | 1653847 | PISTON AS | 18 | |
| 10 | 1653853 | PELUAR | 1 | |
| 11 | 1731203 | PEMPOM GROUP-GEAR (PILOT) | 1 | |
| 3278740 | KIT-SEAL (PEMPOM GEAR) | 1 | ||
| (Termasuk cincin, gasket & segel) | ||||
| 12 | 1768131 | SPACER-SPECIAL | 2 | |
| 13 | 1768132 | Keterangan: | 2 | |
| 14 | 1904896 | PLUG | 2 | |
| 15 | 1920573 | PIN-DOWEL | 4 | |
| 16 | 1990518 | SEAL (ID=6,80mm) | 2 | |
| 17 | 2072985 | Oriffice | 2 | |
| 18 | 2256216 | GASKET | 1 | |
| 19 | 2671628 | SHAFT-DRIVE | 1 | |
| 20 | 2671629 | PEMANDUAN SHAFT | 1 | |
| 21 | 2678084 | Jaring bantalan | 2 | |
| 22 | 2678088 | Head GROUP-PUMP | 2 | |
| 23 | 2686263 | CAM | 2 | |
| 24 | 2686265 | PELAT | 1 | |
| 25 | 2692433 | KELUAR-KELUAR | 4 | |
| 26 | 2829192 | CASE-FLANGE | 1 | |
| 27 | 2985732 | BOL-RETENER | 2 | |
| 28 | 3117407 | BLOCK-PORT | 1 | |
| 29 | 9S4191 | Plug, mesin benang pompa injeksi bahan bakar | 3 | |
| 30 | 0941875 | PIN, Roller | 6 | |
| 31 | 0941882 | TAPERED, PLUG | 12 | |
| 32 | 0951663 | SEAL-O-RING (ID=54.40mm) | 1 | |
| 34 | 1652799 | SPRING | 12 | |
| 35 | 1899763 | SEAL (13.6mm OD) | 4 | |
| 36 | 1H7339 | PEMBALINGAN,Bagian penutup kit yang sudah dibentuk P/N 4J9280 | 1 | |
| 37 | 1J6472 | PEMANGAT cincin (99,9MM OD) | 2 | |
| 38 | 2738320 | SEAL-O-RING | 1 | |
| 39 | 3J1907 | PEMBANGUNAN KALPAL SEAL TO SEAL- TUBE PEMBANGUNAN KALPAL LOGIK | 3 | |
| 40 | 6V8144 | Pengendalian cincin | 2 | |
| 41 | 7I2272 | BOLT (M5X0.8X12-MM) | 2 | |
| 42 | 7X2553 | BOLT-PLT (M16 X 2.0 X 40) | 5 | |
| 43 | 7X2556 | BOLT-PLT (M16 X 2.0 X 100) | 1 | |
| 44 | 8C3338 | Dowell | 4 | |
| 45 | 8T4121 | WASHER-HARD (11X21X2.5-MM THK) ((M10X1.50X30MM) | 2 | |
| 46 | 8T4136 | Kapsul (HEX HD) (M10 X 1,50 X 25L GR 10,9) | 2 | |
| 47 | 8T4137 | BOLT (M10X1.50X20MM) | 2 | |
| 48 | 8T4139 | Kapsul (HEX HD) (M12 X 1,75 X 30L GR 10,9) | 8 | |
| 49 | 8T4140 | BOLT-PLT (M16 X 2.0 X 60) | 2 | |
| 50 | 8T4185 | BOLT (M10X1.5X50MM) (M10X1.5X50-MM) | 4 | |
| 51 | 8T7547 | BOLT (M8X1.25X30MM) (M8X1.25X30-MM) | 4 | |
| 52 | 8T9599 | Pengendalian cincin | 1 | |
