Tempat asal:
Guangdong, Tiongkok
Nama merek:
Belparts
Nomor model:
R200 R215 R225 R220-5-7
Video
Video

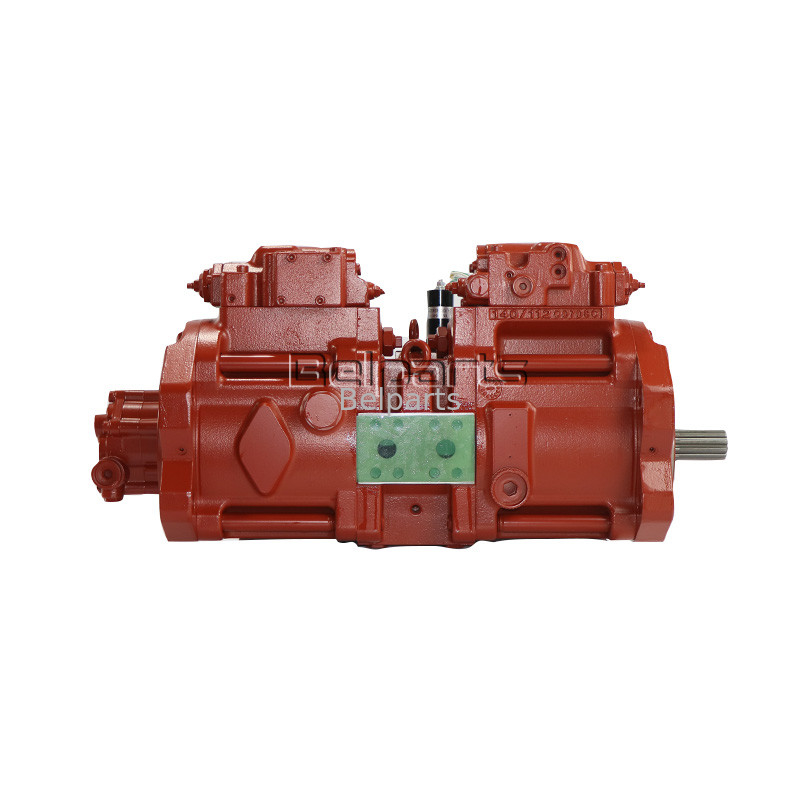

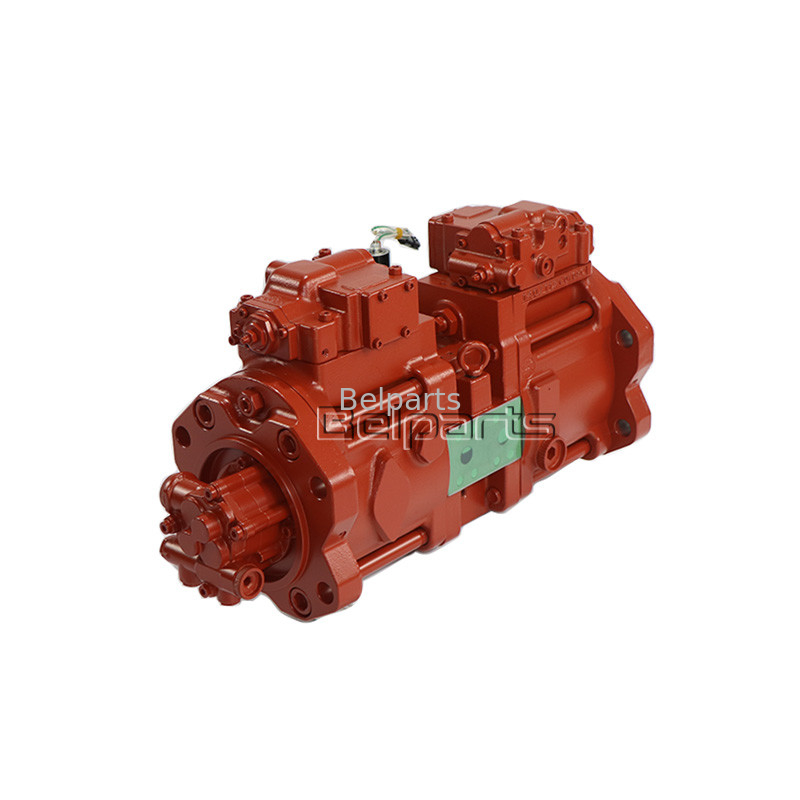

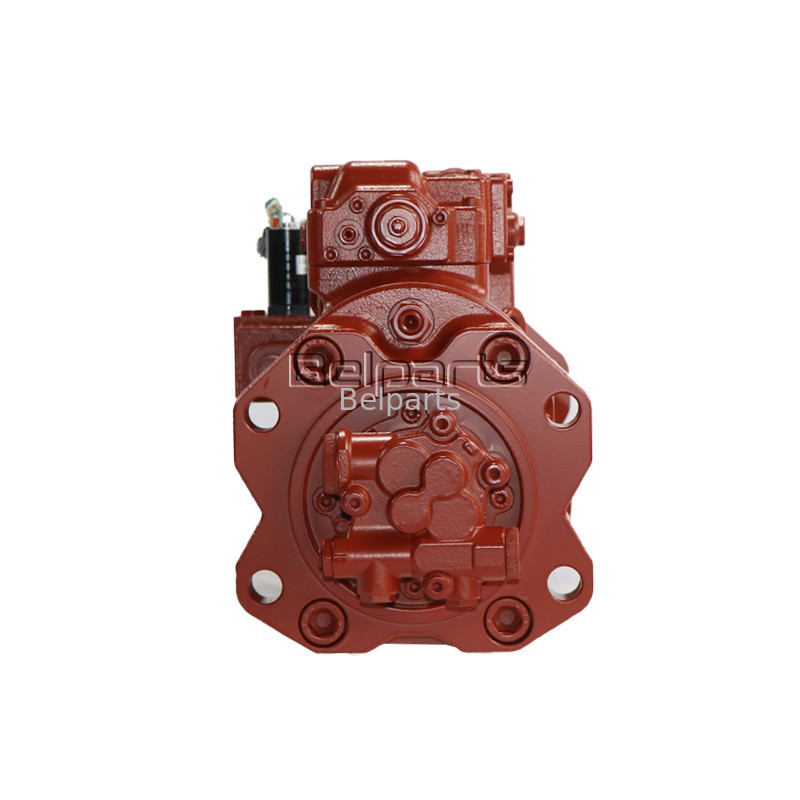

Belparts excavator pompa utama R200 R215 R225 R220-5-7 pompa hidrolik 31N6-10051 31Q6-10010 untuk Hyundai
Aplikasi:Excavator
Nama bagian:pompa hidraulik
Nomor bagian: 31N6-10051 31Q6-10010
Model:R200 R215 R225 R220-5-7
MOQ: 1 PC
Bahan: Baja
Istilah pembayaran:T/T, Western Union, paypal, jaminan perdagangan atau sesuai kebutuhan
Berat: 190kg
Merek:Belparts
| Penerapan | Mesin penggali |
| Nama bagian | Pompa hidraulik |
| Nomor bagian | 31N6-10051 31Q6-10010 |
| Model | R200 R215 R225 R220-5-7 |
| MOQ | 1 PC |
| Bahan | Baja |
| Istilah Pembayaran | T/T, Western union, paypal, jaminan perdagangan atau sesuai kebutuhan |
| Berat badan | 190kg |
| Merek | Belparts |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N6-10051 | Asy Pompa Utama *-1,2,3,4 |
1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00077 | SHAFT Penggerak ((F) | 1 | |
| 113 | XJBN-00078 | SHAFT DRIVE ((R) | 1 | |
| 114 | XJBN-00351 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00950 | Berkas-Roller | 2 | |
| 124 | XJBN-00080 | Jaring bantalan | 2 | |
| 127 | XJBN-00081 | SPACE-LAYER | 4 | |
| S141 | XJBN-00067 | Blok-silinder | 2 | |
| S151 | XJBN-00061 | Piston | 18 | |
| S152 | XJBN-00062 | Sepatu | 18 | |
| NK153 | XJBN-00082 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | Sepatu plat | 2 | |
| S212 | XJBN-00070 | Plat-Swash | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | Dukungan | 2 | |
| 261 | XJBN-00087 | COVER ((F) - SEAL | 1 | |
| 271 | XJBN-00088 | Casing-Pump | 2 | |
| 312 | XJBN-00089 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00065 | PEMBALANG PLATE-VALVE ((R) | 1 | |
| S314 | XJBN-00068 | VALVEL PLATE ((L) | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 18 | |
| S531 | XJBN-00358 | PING-TILT | 2 | |
| 532 | XJBN-00091 | PISTON-SERVO | 2 | |
| 534 | XJBN-00092 | STOPPER ((L) | 2 | |
| 535 | XJBN-00093 | STOPPER (S) | 2 | |
| S541 | XJBN-00859 | SEAT | 4 | |
| S543 | XJBN-00860 | STOPPER | 2 | |
| S544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | Baja bola | 4 | |
| S548 | XJBN-00360 | PIN-feed kembali | 2 | |
| K702 | XJBN-00918 | O-RING | 2 | |
| K710 | XJBN-00095 | O-RING | 1 | |
| K717 | XJBN-00096 | O-RING | 4 | |
| K724 | XJBN-00361 | O-RING | 16 | |
| K725 | XJBN-00362 | O-RING | 4 | |
| K728 | XJBN-00363 | O-RING | 4 | |
| K732 | XJBN-00912 | O-RING | 2 | |
| K774 | XJBN-00098 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | RING BACKUP | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00106 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00391 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-00060 | Piston Sub ASSY Lihat ILLUST |
2 | |
| 013 | XJBN-00063 | CYLINDER ASSY ((RH)) Lihat ILLUST |
1 | |
| 014 | XJBN-00066 | CYLINDER ASSY ((LH) Lihat ILLUST |
1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY Lihat ILLUST |
2 | |
| 041 | XJBN-00072 | Periksa klep ASSY 1 Lihat ILLUST |
2 | |
| 042 | XJBN-00075 | VALVE CEK ASSY 2 Lihat ILLUST |
2 | |
| 530 | XJBN-00366 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| K | XJBN-00971 | Pump Unit SEAL KIT Lihat ILLUST |
1 |
GZ YUEXIANG ENGINEERING MACHINERY LTD.
GZ Yuexiang Engineering Machinery Co., Ltd, didirikan pada September 2013, adalah perusahaan perdagangan luar negeri, yang mengkhususkan diri dalam pengadaan dan penjualan suku cadang excavator.
