Rincian produk
Menyoroti:

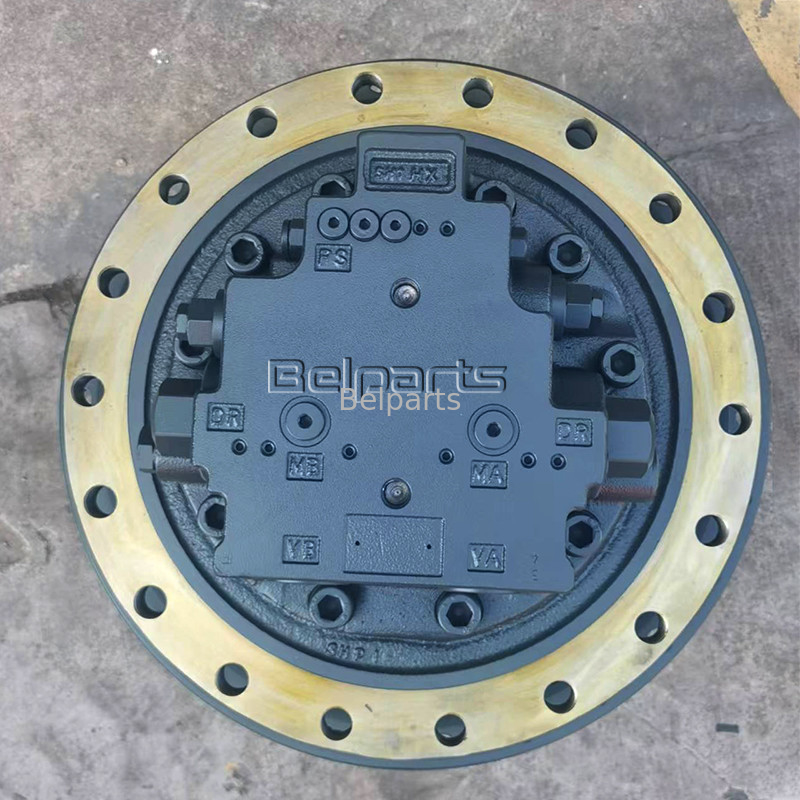

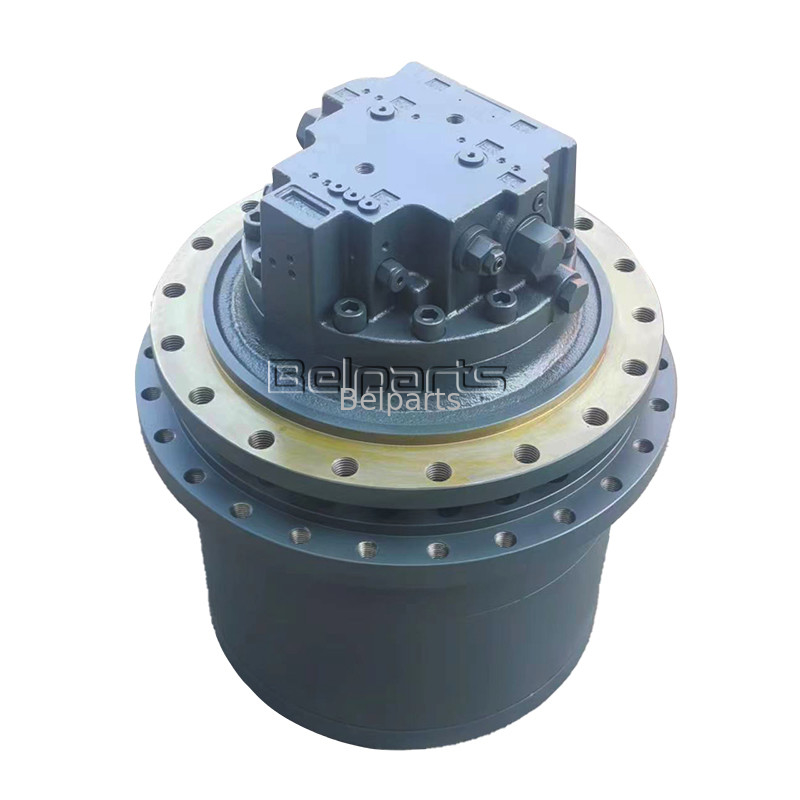

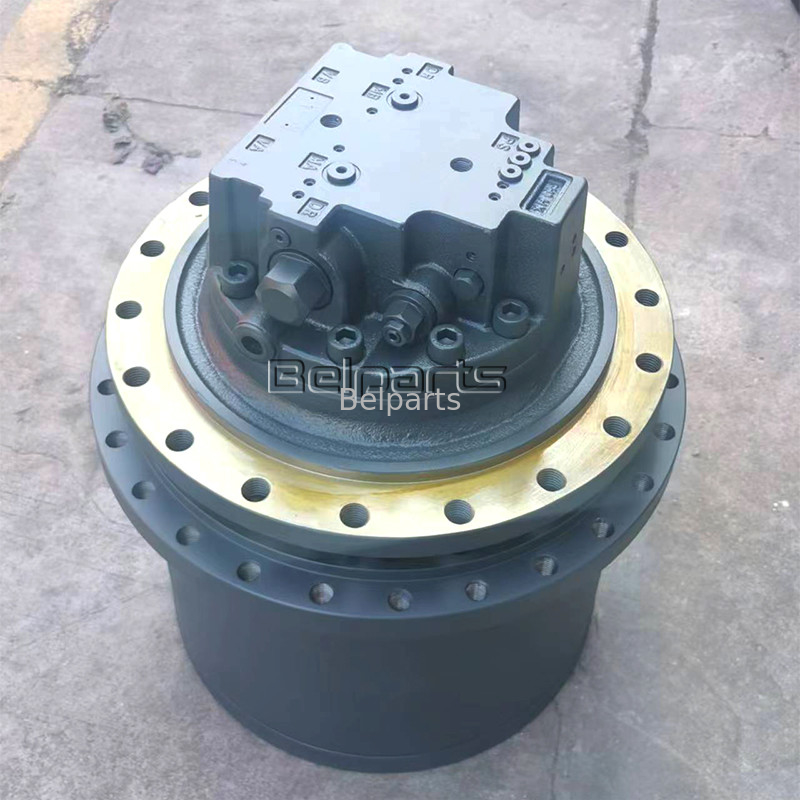

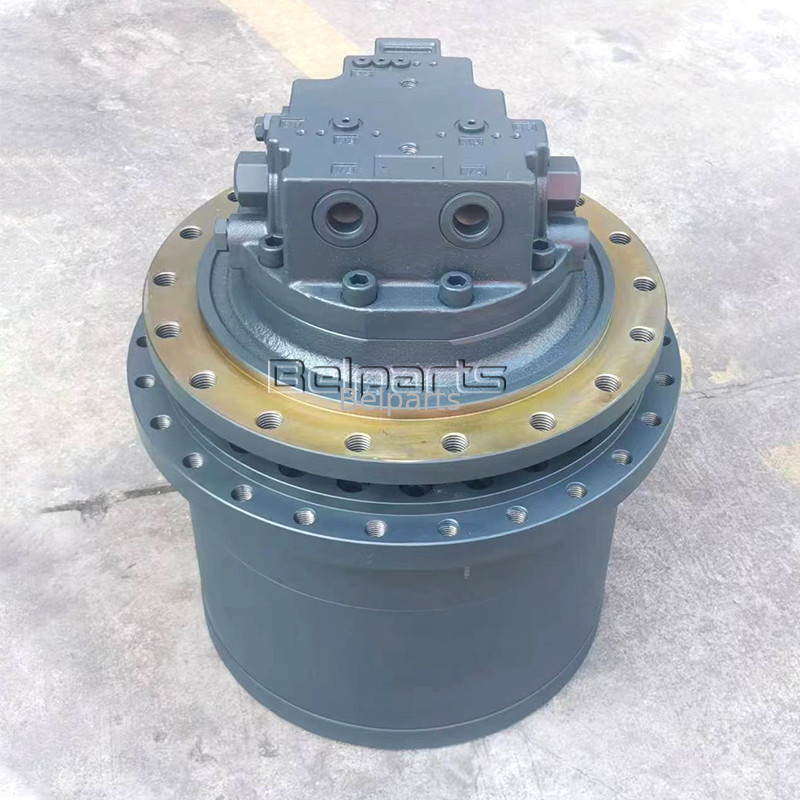

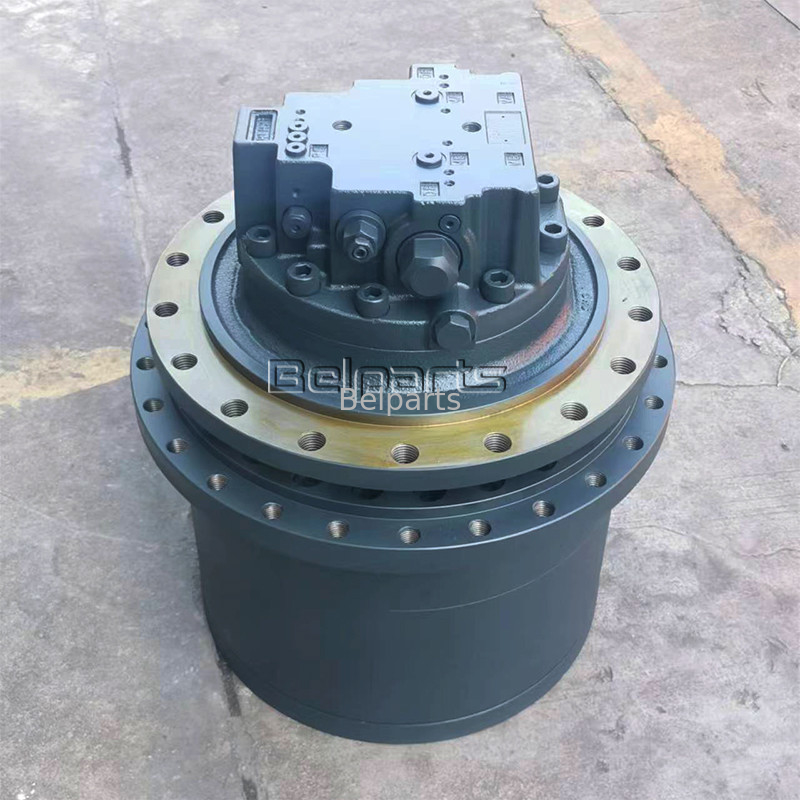

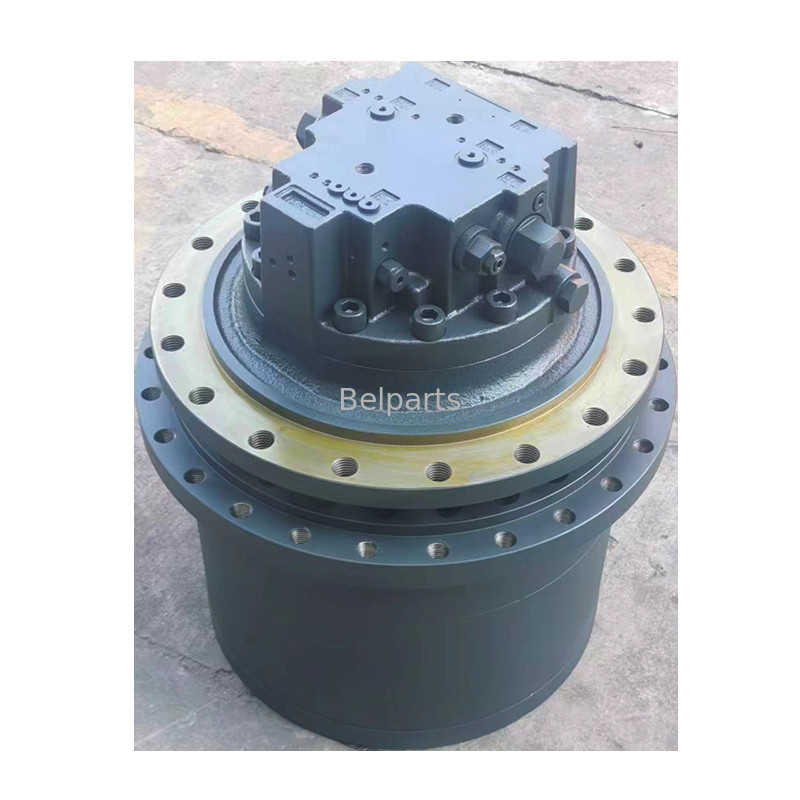

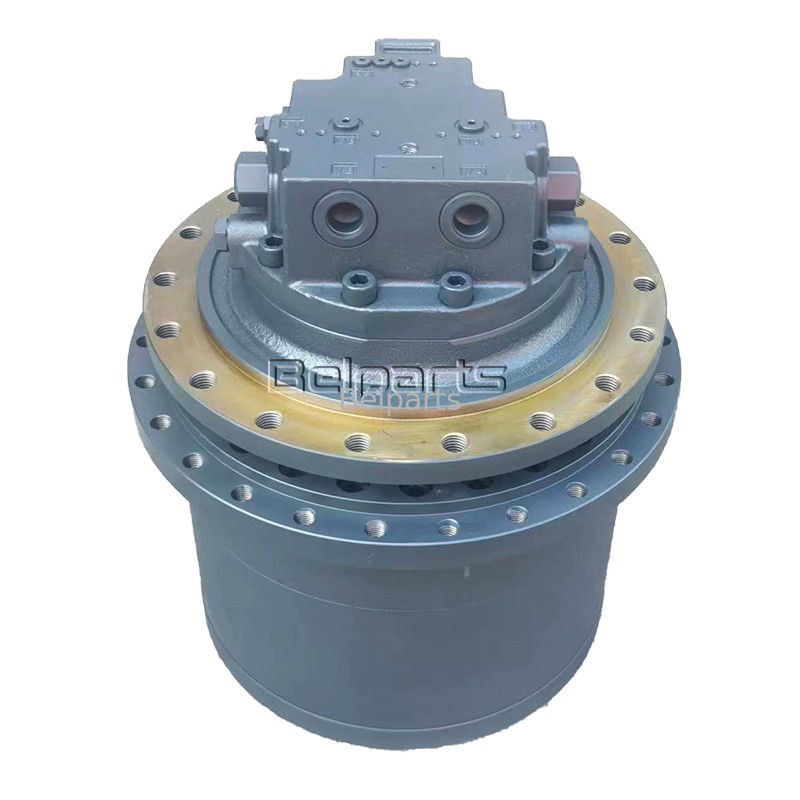

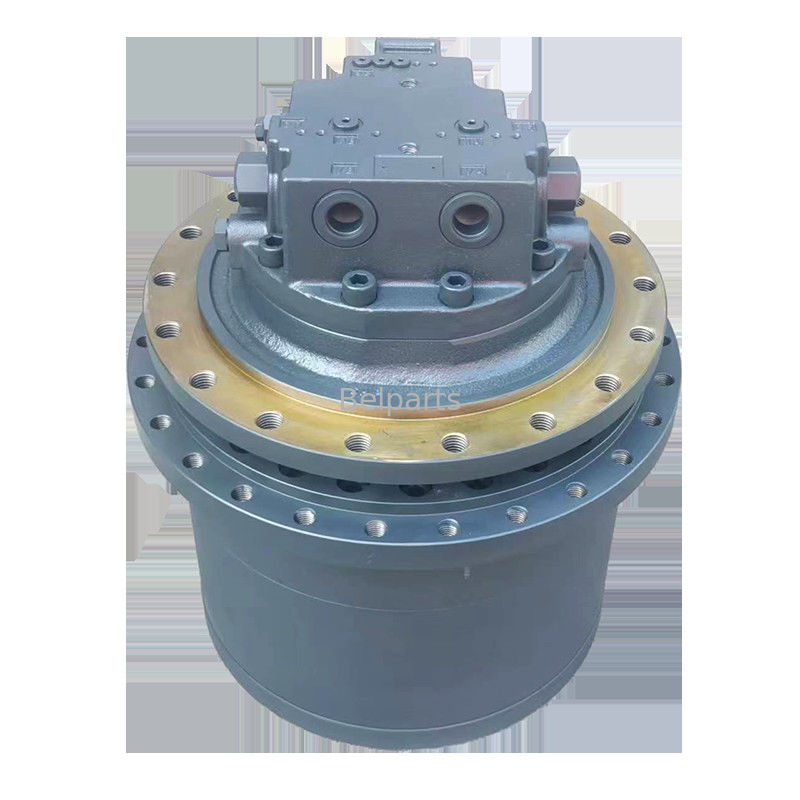

Final Drive Excavator 31N8-40052
,Final Drive Excavator 39Q8-42100
,Rakitan Final Drive Excavator Hyundai
Model:
R300
Part Name:
Final Drive Excavator
Weight:
317kg
Part Number:
39Q8-42100 31N8-40052
Texture:
Baja
Brand:
HYUNDAI
Deskripsi Produk
Suku Cadang Mesin Konstruksi 39Q8-42100 R300 31N8-40052 perakitan final drive excavator untuk hyundai
| Nama Produk | penggerak akhir ekskavator |
| Bagian nama | Bagian terakhir |
| Merek | Hyundai |
| Model | R300 |
| Nomor bagian | 39Q8-42100 31N8-40052 |
| Bahan | Baja Paduan |
| Bobot | 317kg |
| Tekstur | Baja |
Suku cadang pada TRAVEL REDUCTION GEAR (TYPE 2,3):
| Pos. | Bagian No | jumlah | Nama bagian | Komentar |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | LIHAT 4135, 4136 |
| T*-2. | 39Q8-42100 | [1] | PERALATAN PENGURANGAN PERJALANAN | |
| T*-2. | 39Q8-42101 | [1] | PERALATAN PENGURANGAN PERJALANAN | |
| 1. | 39Q8-42110 | [1] | GIGI-RING | |
| 2. | 39Q8-42120 | [2] | BEARING-ANG.BALL | |
| 3. | 39Q8-42130 | [2] | SEAL ASSY-mengambang | |
| 4. | 39Q8-42140 | [1] | RING-NUT | |
| 5. | 39Q8-42150 | [1] | PLATE-LOCK | |
| 6. | S017-120206 | [4] | BOLT-HEX | |
| 7. | 39Q8-42160 | [1] | PERUMAHAN | |
| 8. | S129-070206 | [22] | BOLT-SOCKET, UNIFIED | |
| 9. | 39Q8-42171 | [1] | KOPEL | |
| K10. | 39Q8-42190 | [1] | PEMBAWA 2 | |
| K11. | 39Q8-42200 | [3] | GEAR-PLANETARY 2 | |
| K12. | 39Q8-42210 | [3] | BEARING-NEEDLE | |
| K13. | 39Q8-42220 | [6] | WASHER-THRUST 2 | |
| K14. | 39Q8-42230 | [3] | PIN-CARRIER 2 | |
| K15. | XKBR-00128 | [3] | PIN-SPRING 2 | |
| K16. | 39Q8-42240 | [3] | PIN-SOLID | |
| 17. | 39Q8-42250 | [1] | GEAR-SUN 2 | |
| K18. | 39Q8-42270 | [1] | PEMBAWA 1 | |
| K19. | 39Q8-42280 | [3] | GEAR-PLANETARY 1 | |
| K20. | 39Q8-42290 | [3] | BEARING-JARUM 1 | |
| K21. | 39Q8-42300 | [6] | WASHER-THRUST 1 | |
| K22. | 39Q8-42310 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600504 | [3] | PIN-SPRING | |
| 24. | 39Q8-42320 | [1] | GEAR-SUN 1 | |
| 25. | 39Q6-42320 | [1] | PLAT-DORONG | |
| 26. | 39Q8-42330 | [1] | PLAT-DORONG | |
| 27. | 39Q8-42340 | [1] | MENUTUPI | |
| 28. | S109-18140D | [25] | KEPALA SOCKET BOLT-HEX | |
| N28. | S109-18140V | [25] | BOLT-SOCKET | |
| 29. | P220-110205 | [3] | PLUG-HEX | |
| 30. | S602-04001 | [1] | PENYIMPANAN CINCIN, TIPE C | |
| 31. | 39Q8-42350 | [1] | PAPAN NAMA | |
| 32. | 39Q6-41800 | [2] | MEMUSATKAN | |
| 33. | S631-024001 | [3] | O-RING | |
| K | 39Q8-42180 | [1] | CARRIER ASST KIT 2 | LIHAT ILUSTRASI |
| K | 39Q8-42260 | [1] | CARRIER ASST KIT 1 | LIHAT ILUSTRASI |
