Kualitas Mesin Excavator Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy pabrik

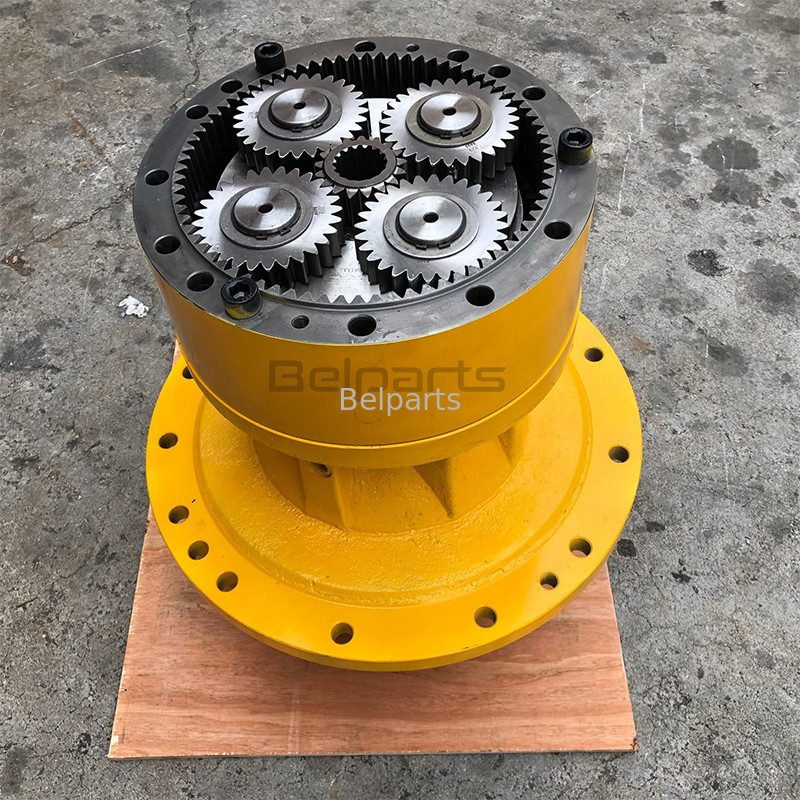

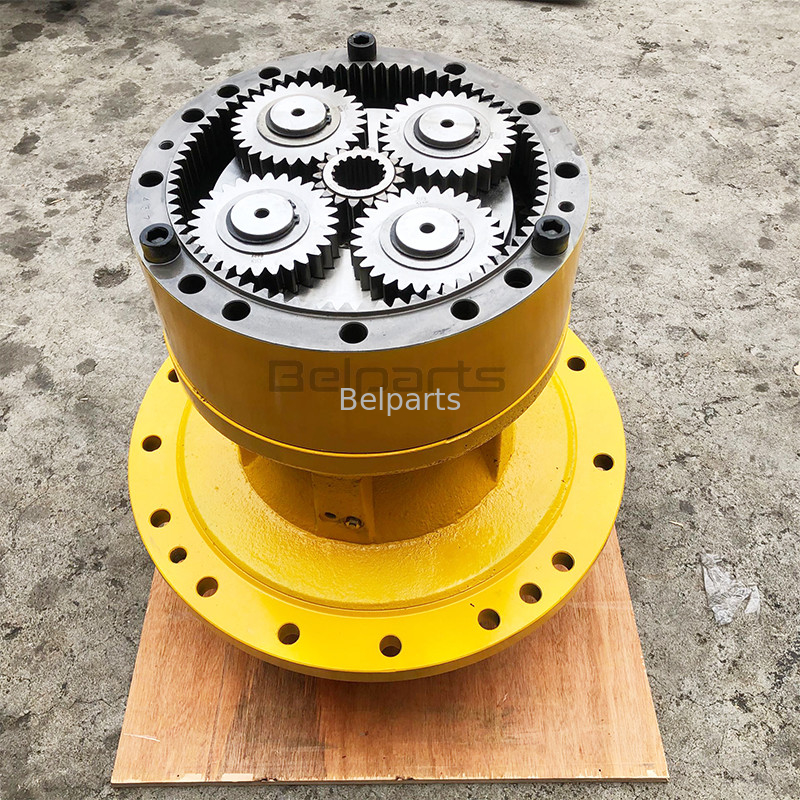

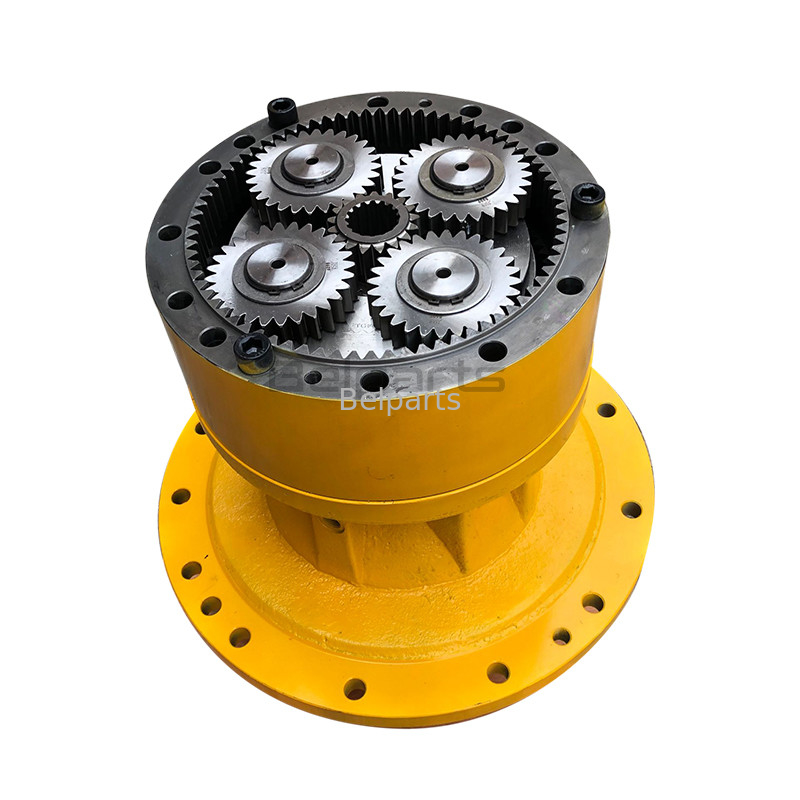

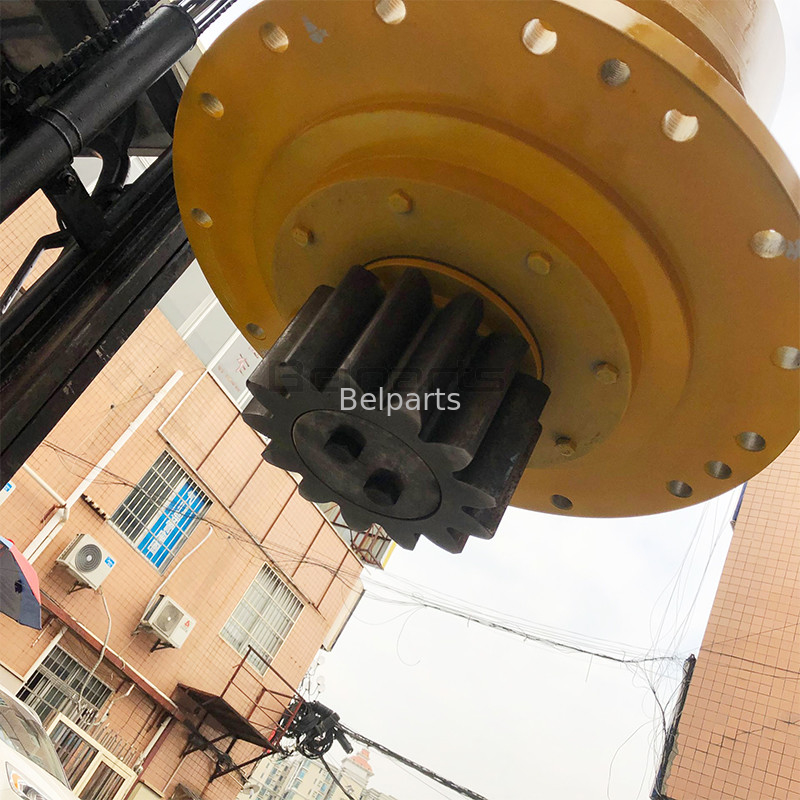

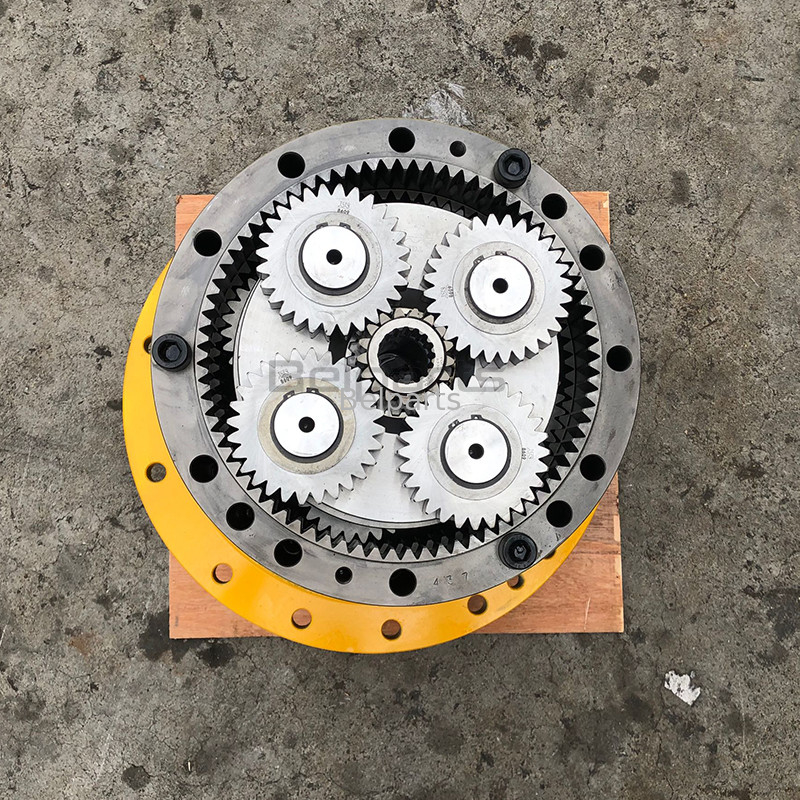

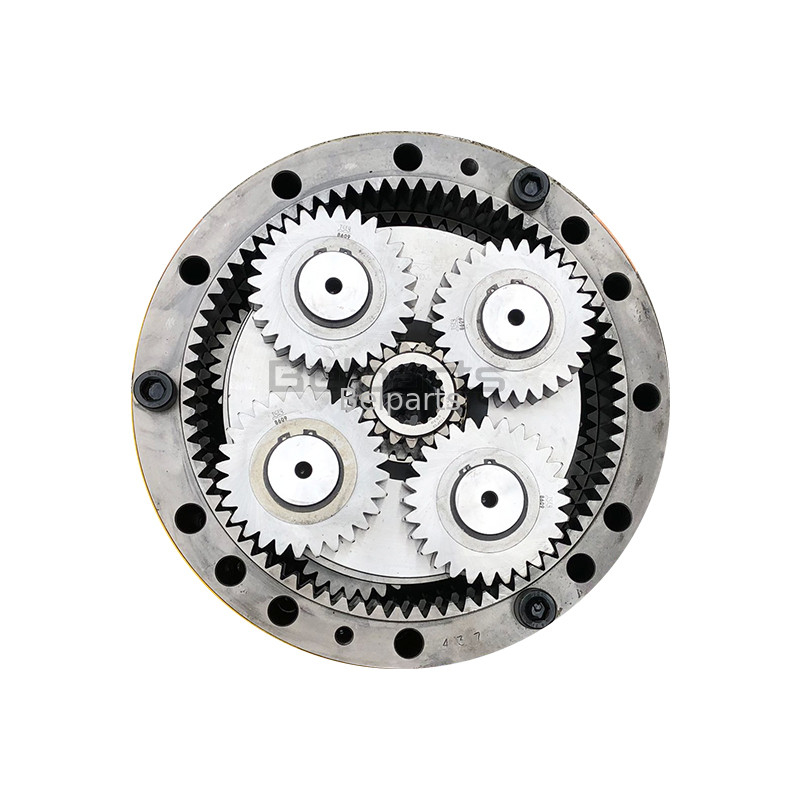

Mesin Excavator Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy

Name: Mesin Excavator Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy
Brand: BELPARTS MACHINERY LIMITED
SKU: R170W-7
Price: 475.00 USD
Availability: InStock

Tempat Asal:Guangdong, Cina

Nama merek:Belparts

Nomor Model:R170W-7

Harga:Bisa dinegosiasikan

Kemampuan Pasokan:1000 Potongan/Potongan per Bulan

Rincian produk

Menyoroti:

R170W-7 Swing Gearbox

,

31N6-10160 Swing Gearbox

,

31N6-10180 Swing Gearbox

Product Name: Ayunan Gearbox

Model: R170W-7

Weight: 184 KG

Brand: HYUNDAI

Package: 51*49*58

Part Number: 31N6-10160 31N6-10180

Deskripsi Produk

Gearbox ayunan mesin excavator R170W-7 31N6-10160 31N6-10180 assy pengurangan ayunan

Parameter produk:

Nama Produk	ayunan gearbox
Bobot	184 KG
Model:	R170W-7
Nomor bagian:	31N6-10160 31N6-10180
Merek:	Hyundai
Kemasan:	514958
waktu pengiriman:	Dalam waktu 2 hari setelah menerima pembayaran

Mesin Excavator Swing Gearbox R170W-7 31N6-10160 31N6-10180 Swing Reduction Assy

Bagian pada grup SWING REDUCTION GEAR (TYPE 1):

Pos.	Bagian No	jumlah	Nama bagian	Komentar
*.	@	[1]	SWING MOTOR ASSY
*-2.	31N6-10160	[1]	GIGI PENGURANGAN SWING
1.	XKAQ-00771	[1]	SELUBUNG
2.	XKAQ-00331	[1]	SHAFT-DRIVE
2.	XKAQ-00780	[1]	SHAFT-DRIVE
3.	XKAQ-00018	[1]	SPACER
5.	XKAQ-00026	[1]	BEARING-ROLLER
6.	XKAQ-00032	[1]	SEAL-OIL
7.	XKAQ-00029	[1]	BEARING-ROLLER
7.	XKAQ-00647	[1]	BEARING-ROLLER
8.	XKAQ-00076	[1]	PLAT-DORONG
9.	XKAQ-00075	[1]	PEMBAWA 2
10.	XKAQ-00074	[1]	RING-STOP
11.	XKAQ-00284	[1]	GIGI-RING
11.	XKAQ-00779	[1]	GIGI-RING
12.	XKAQ-00072	[4]	PIN-KNOCK
13.	XKAQ-00976	[1]	PINI GIGI
14.	XKAQ-00071	[6]	WASHER-DORONG
15.	XKAQ-00023	[3]	GEAR-PLANET 2
16.	XKAQ-00070	[3]	PIN 2	TERMASUK 23
17.	XKAQ-00048	[6]	PIN-SPRING
18.	XKAQ-00011	[1]	GEAR-SUN 2
19.	XKAQ-00015	[1]	PEMBAWA 1
20.	XKAQ-00057	[3]	SISI PELAT 1
21.	XKAQ-00019	[3]	PIN 1
22.	XKAQ-00030	[3]	CAGE-JARUM
N23.	@	[3]	BUSHING 2
24.	XKAQ-00025	[3]	GEAR-PLANET 1
25.	XKAQ-00292	[2]	WASHER-LOCK
26.	XKAQ-00068	[1]	SISI PELAT 3
27.	XKAQ-00010	[1]	GEAR-SUN 1
29.	XKAQ-00049	[1]	STEKER
30.	XKAQ-00066	[2]	STEKER
31.	XKAQ-00065	[2]	BOLT-SOCKET
32.	XKAQ-00035	[1]	PIPA-GAUGE
33.	XKAQ-00034	[1]	BAR-GAUGE
34.	XKAQ-00031	[1]	PLAT-COVER
35.	XKAQ-00064	[8]	BOLT-HEX
36.	XKAQ-00043	[1]	PLATE-LOCK
37.	XKAQ-00042	[2]	BOLT-HEX
38.	XKAQ-00041	[3]	RING-STOP
39.	XKAQ-00040	[3]	SISI PELAT 2
40.	XKAQ-00143	[1]	PERNAPASAN PASCA UDARA
*-1.	@	[1]	SWING MOTOR UNIT	LIHAT 4100
