Rincian produk
Menyoroti:

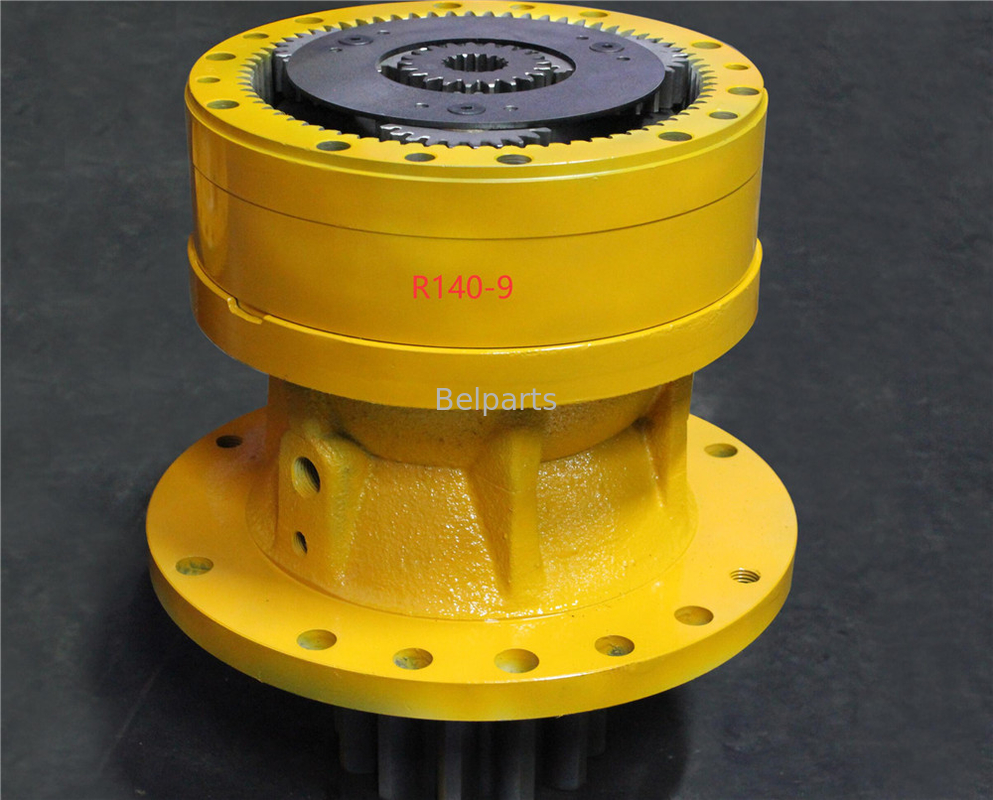

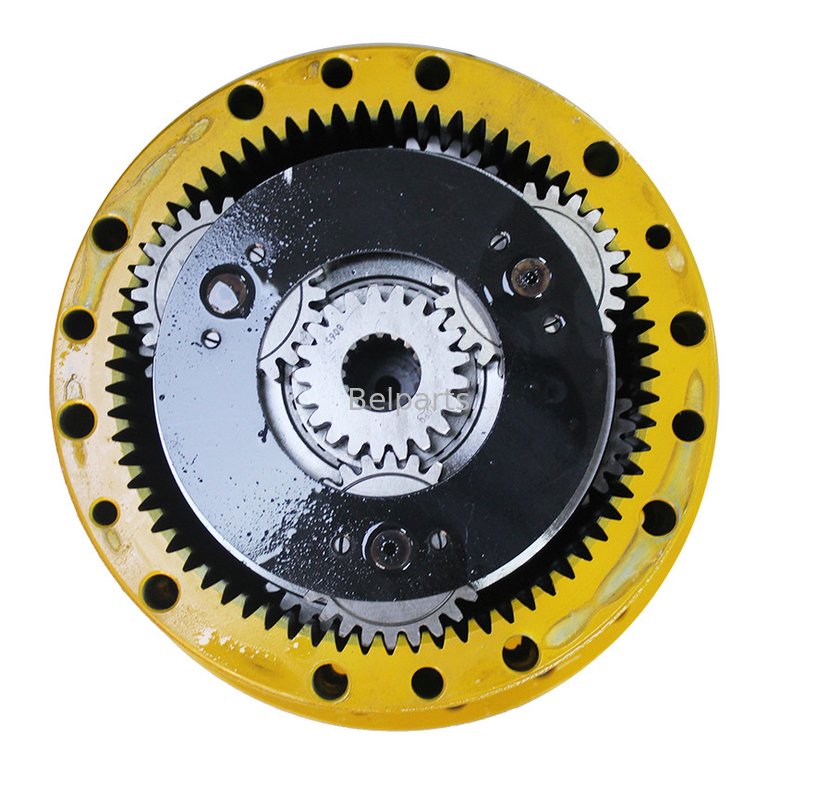

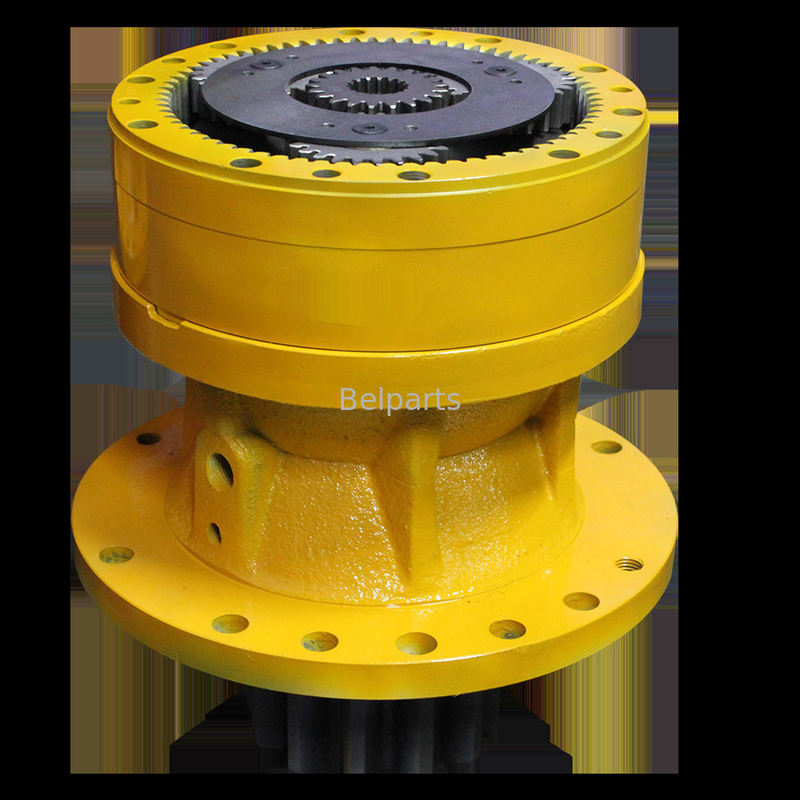

Excavator Swing Gearbox R140LC-7
,31E6-12030 Excavator Swing Gearbox
,31N4-10140 Excavator Swing Gearbox
Product Name:
Ayunan Gearbox
Model:
R140LC-7
Weight:
84kg
Brand:
HYUNDAI
Package:
40*40*57
Part Number:
31E6-12030 31N4-10140
Deskripsi Produk
Excavator Swing gearbox R140LC-7 31E6-12030 31N4-10140 Slewing Reduction Gearbox
Parameter produk:
|
Nama Produk |
ayunan gearbox |
| Bobot |
84kg |
|
Model: |
R140LC-7 |
|
Nomor bagian: |
31E6-12030 31N4-10140 |
|
Merek: |
Hyundai |
|
Kemasan: |
40*40*57 |
|
waktu pengiriman: |
Dalam waktu 2 hari setelah menerima pembayaran |

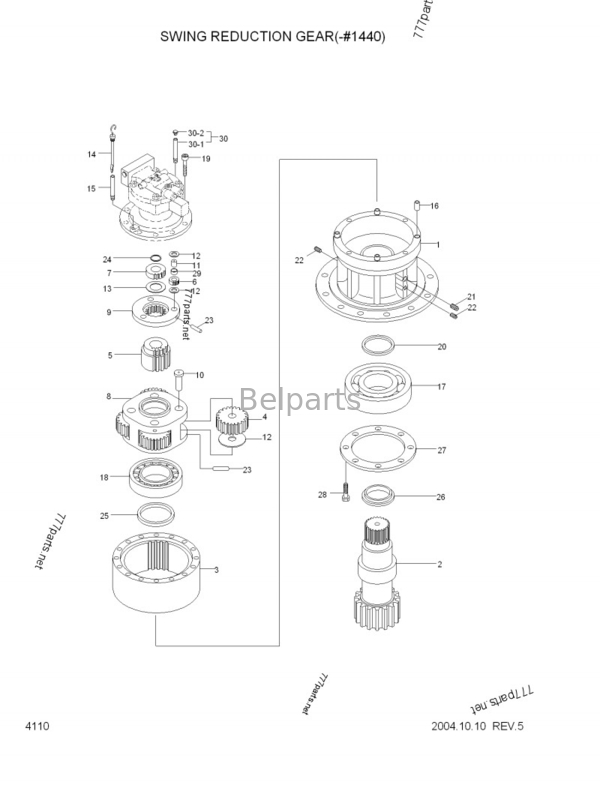

Daftar suku cadang
| # | Bagian No | Bagian nama | jumlah | Permintaan harga |
|---|---|---|---|---|
| * | @ | PIPA INJEKSI BAHAN BAKAR & NOZZLE LIHAT 4101 |
1 | |
| * | @ | PIPA INJEKSI BAHAN BAKAR & NOZZLE | 1 | |
| *-2 | 31N4-10140 | GIGI PENGURANGAN SWING | 1 | |
| *-2 | 31N4-10141 | GIGI PENGURANGAN SWING | 1 | |
| 1 | XKAQ-00134 | SELUBUNG | 1 | |
| 1 | XKAQ-00332 | SELUBUNG | 1 | |
| 2 | XKAQ-00249 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00102 | GIGI-RING | 1 | |
| 5 | XKAQ-00278 | GEAR-SUN NO.2 | 1 | |
| *-21 | XKAQ-00271 | CARRIER NO.1 ASSY | 1 | |
| 6 | XKAQ-00099 | GEAR-PLANET NO.1 | 3 | |
| 7 | XKAQ-00277 | GEAR-SUN NO.1 | 1 | |
| 9 | XKAQ-00096 | PEMBAWA NO.1 | 1 | |
| 11 | XKAQ-00094 | PIN ASSY NO.1 | 3 | |
| 12 | XKAQ-00093 | WASHER-DORONG(B) | 6 | |
| 13 | XKAQ-00057 | SISI PELAT 1 | 1 | |
| 23 | XKAQ-00086 | PIN-SPRING | 3 | |
| 24 | XKAQ-00085 | RING-STOP | 4 | |
| 29 | XKAQ-00080 | CAGE-JARUM | 3 | |
| *-22 | XKAQ-00272 | PEMBAWA NO.2 ASSY | 1 | |
| 4 | XKAQ-00101 | GEAR-PLANET NO.2 | 4 | |
| 8 | XKAQ-00097 | PEMBAWA NO.2 | 1 | |
| 10 | XKAQ-00095 | PIN ASSY NO.2 | 4 | |
| 12 | XKAQ-00093 | WASHER-DORONG(B) | 4 | |
| 23 | XKAQ-00086 | PIN-SPRING | 4 | |
| 7 | XKAQ-00277 | GEAR-SUN NO.1 | 1 | |
| 16 | XKAQ-00091 | PIN-KNOCK | 2 | |
| 17 | XKAQ-00090 | BEARING-SPH ROLLER | 1 | |
| 18 | XKAQ-00089 | BEARING-CYL ROLLER | 1 | |
| 19 | XKAQ-00088 | BOLT-SOCKET | 10 | |
| 20 | XKAQ-00087 | SEAL-OIL | 1 | |
| 21 | XKAQ-00049 | PLUG-TEKANAN | 1 | |
| 22 | XKAQ-00066 | STEKER | 2 | |
| 25 | XKAQ-00084 | RING-STOP | 1 | |
| 26 | XKAQ-00083 | SPACER | 1 | |
| 27 | XKAQ-00082 | PLAT-COVER | 1 | |
| 28 | XKAQ-00081 | BOLT-HEX | 6 | |
| 31 | XKAQ-00333 | CAP-KARET | 4 |
