Tempat asal:
BUATAN CHINA
Nama merek:
Komatsu
Nomor model:
PC400-7
Video
Video

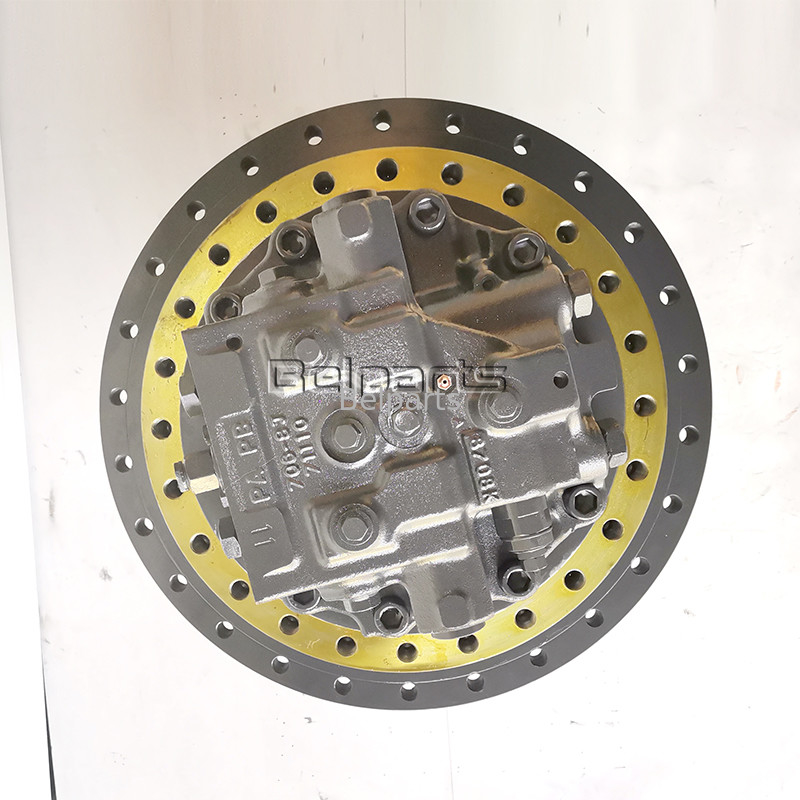

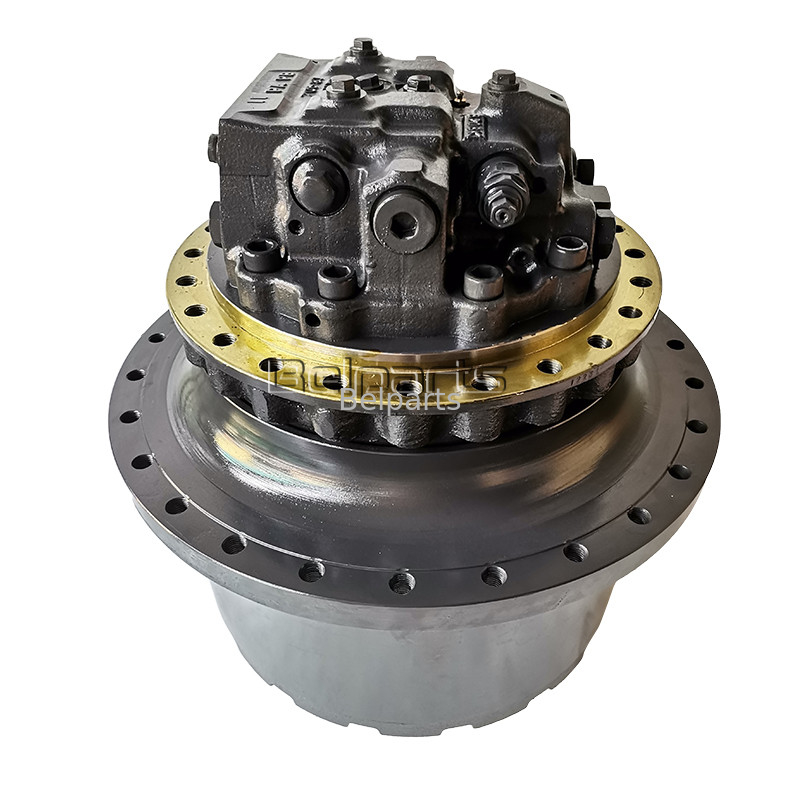

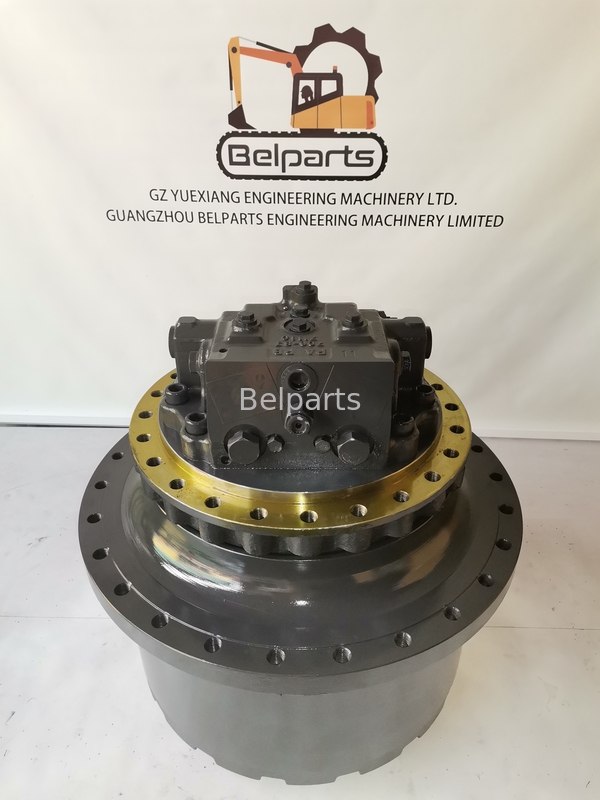

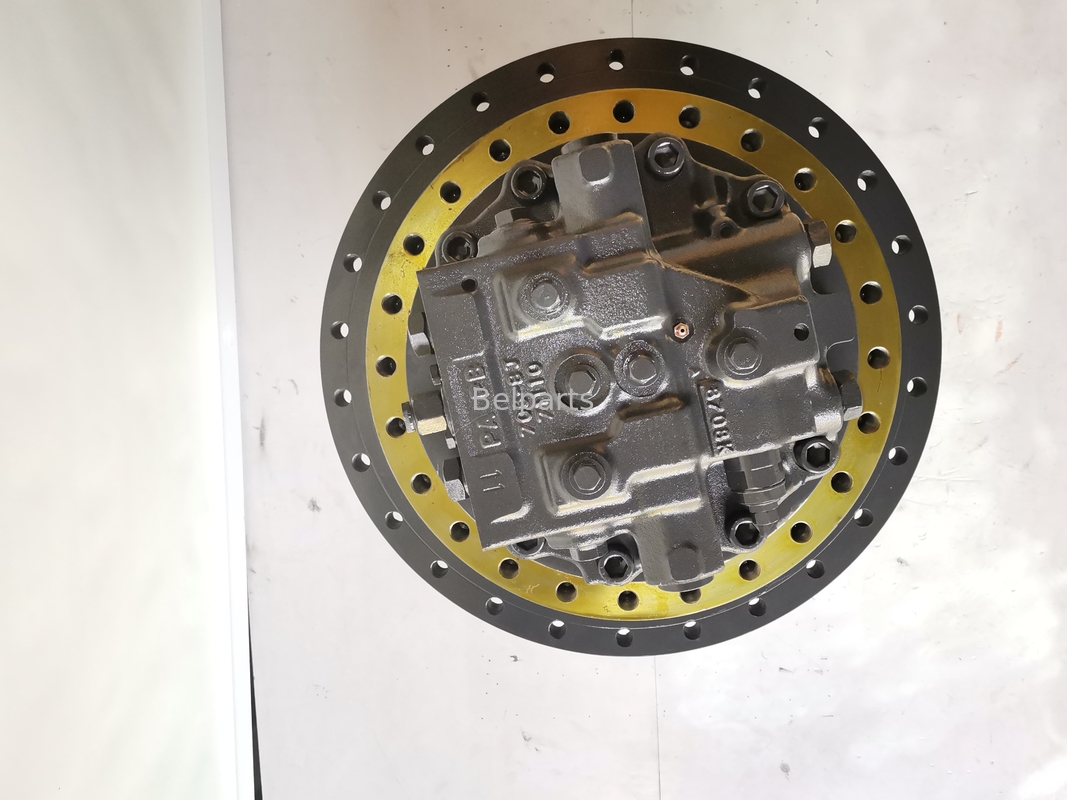

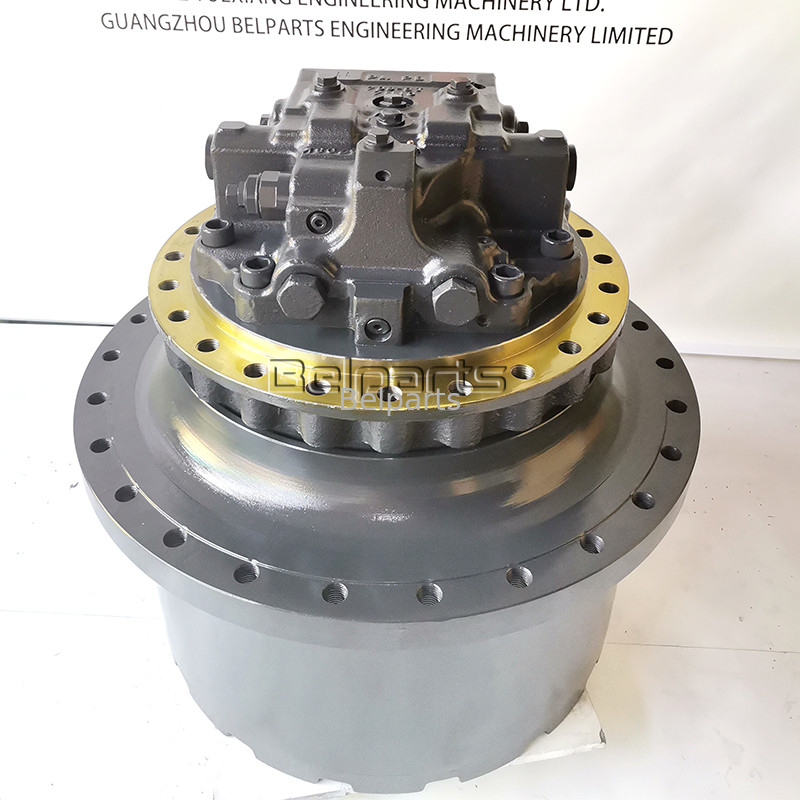

Lampiran excavator PC400-7 final drive 706-8J-01012 706-8J-01011
|
Bagian nama |
Bagian terakhir |
|
Merek |
komatsu |
|
Model |
PC400-7 |
|
Nomor bagian |
706-8J-01012 706-8J-01011 |
|
Bahan |
Baja paduan |
|
Bobot |
678 Kg |
|
Kemasan |
70*70*83 |
| # | Bagian No | Bagian nama | jumlah | Permintaan harga |
|---|---|---|---|---|
| 1 | (706-8J-01012) | MOTOR ASS'Y | 2 | |
| 1 | (706-8J-01011) | MOTOR ASS'Y | 2 | |
| 2 | 208-27-00210 | SEGEL terapung ASS'Y | 2 | |
| 2 | Cincin | 4 | ||
| 3 | cincin-O | 4 | ||
| 4 | 208-27-71151 | Gigi | 2 | |
| 4 | 208-27-71150 | Gigi | 2 | |
| 5 | 208-27-71210 | bantalan | 4 | |
| 6 | 208-27-71310 | KERAH | 2 | |
| 7 | 208-27-71270 | Kunci | 2 | |
| 8 | 208-27-71260 | Kunci | 2 | |
| 9 | 01010-81020 | BOLT,(UNTUK MONO LEVER STEERING) | 4 | |
| 10 | 208-27-71170 | Pembawa | 2 | |
| 11 | 208-27-71140 | Gigi | 8 | |
| 12 | 208-27-71230 | bantalan | 8 | |
| 13 | 21M-27-11260 | mesin cuci dorong | 16 | |
| 14 | 208-27-71250 | Pin | 8 | |
| 15 | 20Y-27-21290 | Pin | 8 | |
| 16 | 207-27-52270 | Spacer | 2 | |
| 17 | 208-27-71130 | Gigi | 2 | |
| 18 | 208-27-71290 | Spacer | 2 | |
| 19 | 208-27-71160 | Pembawa | 2 | |
| 20 | 208-27-71120 | Gigi | 6 | |
| 21 | 208-27-71220 | bantalan | 6 | |
| 22 | 20Y-27-21250 | PENCUCI, DORONG | 12 | |
| 23 | 21M-27-11240 | Pin | 6 | |
| 24 | 20Y-27-21280 | Pin | 6 | |
| 25 | 208-27-71112 | Batang | 2 | |
| 26 | 20Y-27-11250 | Spacer | 2 | |
| 27 | 04260-01905 | Bola | 2 | |
| 28 | 208-27-71183 | Menutupi | 2 | |
| 28 | 208-27-71182 | Menutupi | 2 | |
| 28 | 208-27-71181 | Menutupi | 2 | |
| 29 | 01010-81235 | POMPA KEMUDI BOLT, GUNT GROUND DRIVEN | 32 | |
| 30 | 01643-31232 | WASHER,(TIDAK DIGUNAKAN DENGAN STR DARURAT.) | 32 | |
| 31 | 07049-01215 | PLUG,(UNTUK ROPS SWEEP) (TANPA CAB) | 4 | |
| 32 | 20Y-27-31190 | Steker | 6 | |
| 33 | 07001-12434 | O-RING,(UNTUK LAMPIRAN 2-AKTUATER) | 6 | |
| 34 | 208-27-61210 | SPROKET | 2 | |
| 35 | 207-27-51311 | Baut | 52 | |
| 36 | 01011-82000 | CASCREW | 48 | |
| 37 | 01643-32060 | CUCI DATAR - M20 (DIKERAS) | 48 | |
| 38 | 208-30-71241 | Menutupi | 2 | |
| 39 | 01010-81640 | BOLT,(UNTUK PENANGANAN TERAK) (UNTUK USA) | 12 | |
| 40 | 01643-31645 | CUCI,(UNTUK MOTOR PERJALANAN) (TIDAK TUNJUKKAN) | 12 |
