Tempat asal:
Buatan China
Nama merek:
Belparts
Nomor model:
PC78MR-6 PC78UU-6 PC90-1
Video
Video

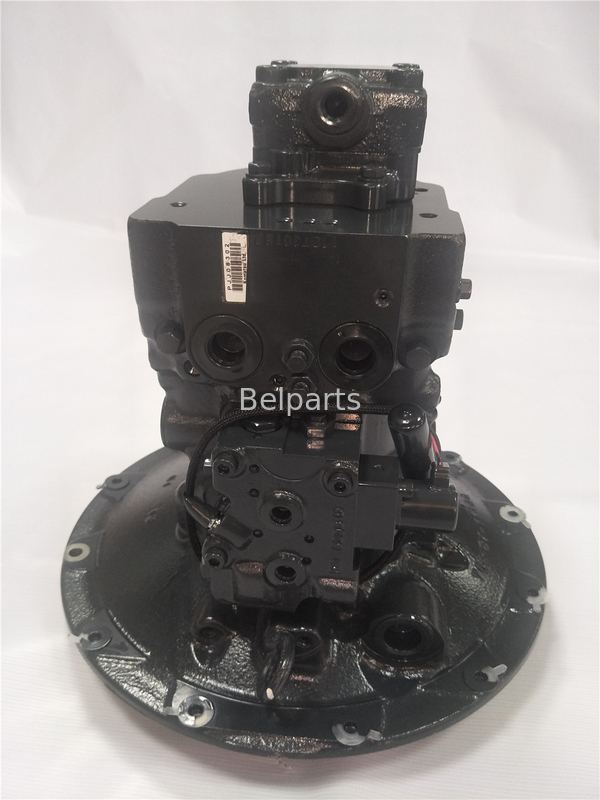

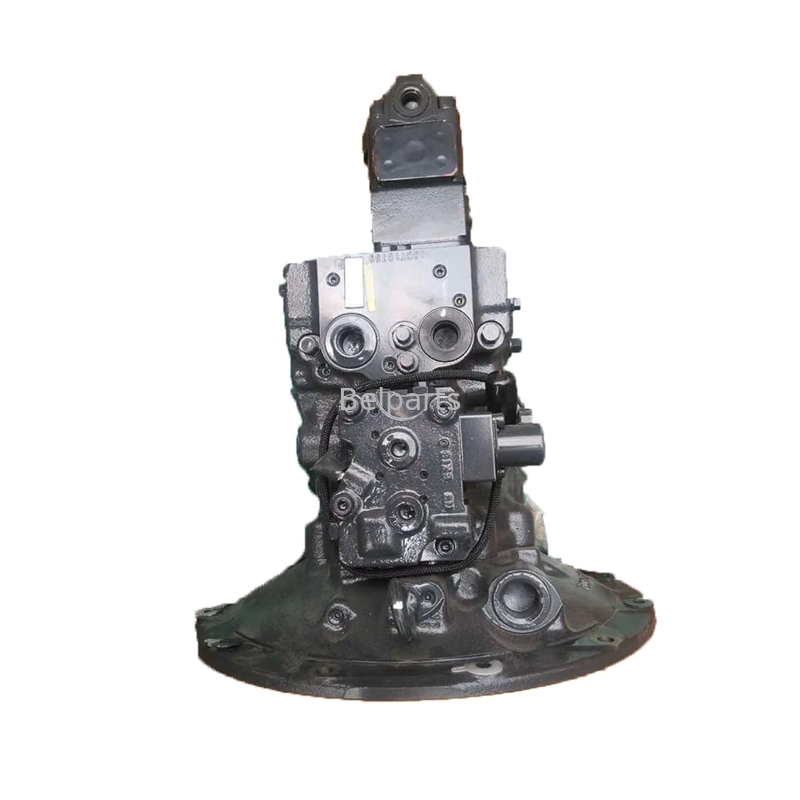

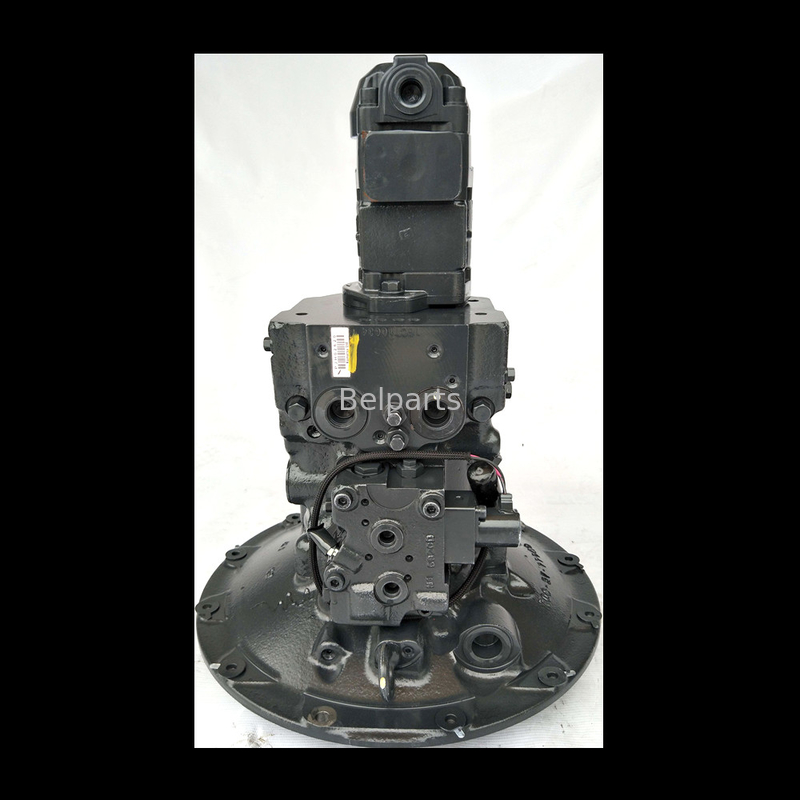

Belparts Excavator pompa utama PC78MR-6 PC78UU-6 PC90-1 pompa utama hidrolik 708-21-04023 708-21-04022 708-21-04021
Aplikasi:Excavator merangkak
Nama bagian:Pompa utama hidraulik
Model:PC78MR-6 PC78UU-6 PC90-1
Nomor Bagian:708-3T-00120 708-3T-00220 708-21-04023
Jaminan: 3-12 bulan
Istilah pembayaran:T/T, Jaminan Perdagangan, Paypal dll.
Merek:Hitachi atau sesuai kebutuhan
| Penerapan | Excavator Crawler |
| Nama bagian | Pompa utama hidraulik |
| Model | PC78MR-6 PC78UU-6 PC90-1 |
| Nomor bagian | 708-3T-00120 708-3T-00220 708-21-04023 |
| Jaminan | 3-12 bulan |
| Istilah Pembayaran | T/T, Jaminan Perdagangan, Paypal dan lain-lain. |
| Merek | Hitachi atau sesuai kebutuhan |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-3T-00120 | PUMP ASS'Y | 1 | |
| Pertemuan ini terdiri dari semua bagian yang ditampilkan dalam gambar.Y1600-01A0 T0 Y1600-04A0 | ||||
| 1 | 708-3T-01120 | Pump Sub ASS'Y | 1 | |
| 1 | 708-3T-04170 | Kasus ASSY | 1 | |
| 1 | CASE, PUMP | 1 | ||
| 2 | Plug | 13 | ||
| 3 | 07044-12412 | Plug, Magnetic | 1 | |
| 4 | 07002-62434 | O-RING, ((F2370-57A0-42) | 1 | |
| 5 | 04530-11018 | BOLT, ((WITH COOLER CLAUTCH MAIN) (D60P) | 1 | |
| 6 | (*720-68-19610) | PIN, DOWEL | 1 | |
| 7 | (*708-3T-14151) | Plug | 2 | |
| 8 | (*708-3T-14170) | Bola | 2 | |
| 9 | (*708-3T-14160) | SEAT | 2 | |
| 10 | 07002-61023 | O-RING, ((F3320-66A2 -26)) | 2 | |
| 11 | 708-8E-16150 | Plug | 2 | |
| 12 | 07002-61023 | O-RING, ((F3320-66A2 -26)) | 2 | |
| 13 | 708-3T-04190 | Plug SUB ASS'Y | 1 | |
| 13 | Plug | 1 | ||
| 14 | Plug | 1 | ||
| 15 | Segel | 2 | ||
| 16 | 07002-11223 | O-RING, ((F4350-65A0 -16)) | 1 | |
| 17 | 708-1L-25210 | Plug | 2 | |
| 18 | 07002-11423 | O-RING, ((untuk kecepatan perjalanan ke-2) (OP) | 2 | |
| 19 | (*708-3T-12120) | Selang | 1 | |
| 20 | (*708-1W-22140) | Bantalan | 1 | |
| 21 | (*708-23-05011) | KIT, WASHER | 1 | |
| 21 | 2,60 mm. | 1 | ||
| 21 | 2,70 mm. | 1 | ||
| 21 | 2,80 mm. | 1 | ||
| 21 | 2,50 mm. | 1 | ||
| 22 | (*708-23-12840) | Ring, SNAP | 1 | |
| 23 | (*708-1W-22320) | Bantalan | 1 | |
| 24 | 708-8D-12221 | SEAL, Minyak | 1 | |
| 25 | 708-3T-12210 | Pengadilan | 1 | |
| 26 | 07000-12065 | O-RING, ((F5350-62A0 -14)) | 1 | |
| 27 | 04065-07225 | Ring, SNAP | 1 |
